58
Adjusting for Using a Light W
eight Document
Adjusting the
Amount of
Air
fl
ow
(Shutter)
When you use the light weight document, the double
feed may occur even if you adjust the
air
fl
ow
adjustment knob
.
In that case, adjust the amount of air
fl
ow by opening
and closing the
shutter
on the document feed side.

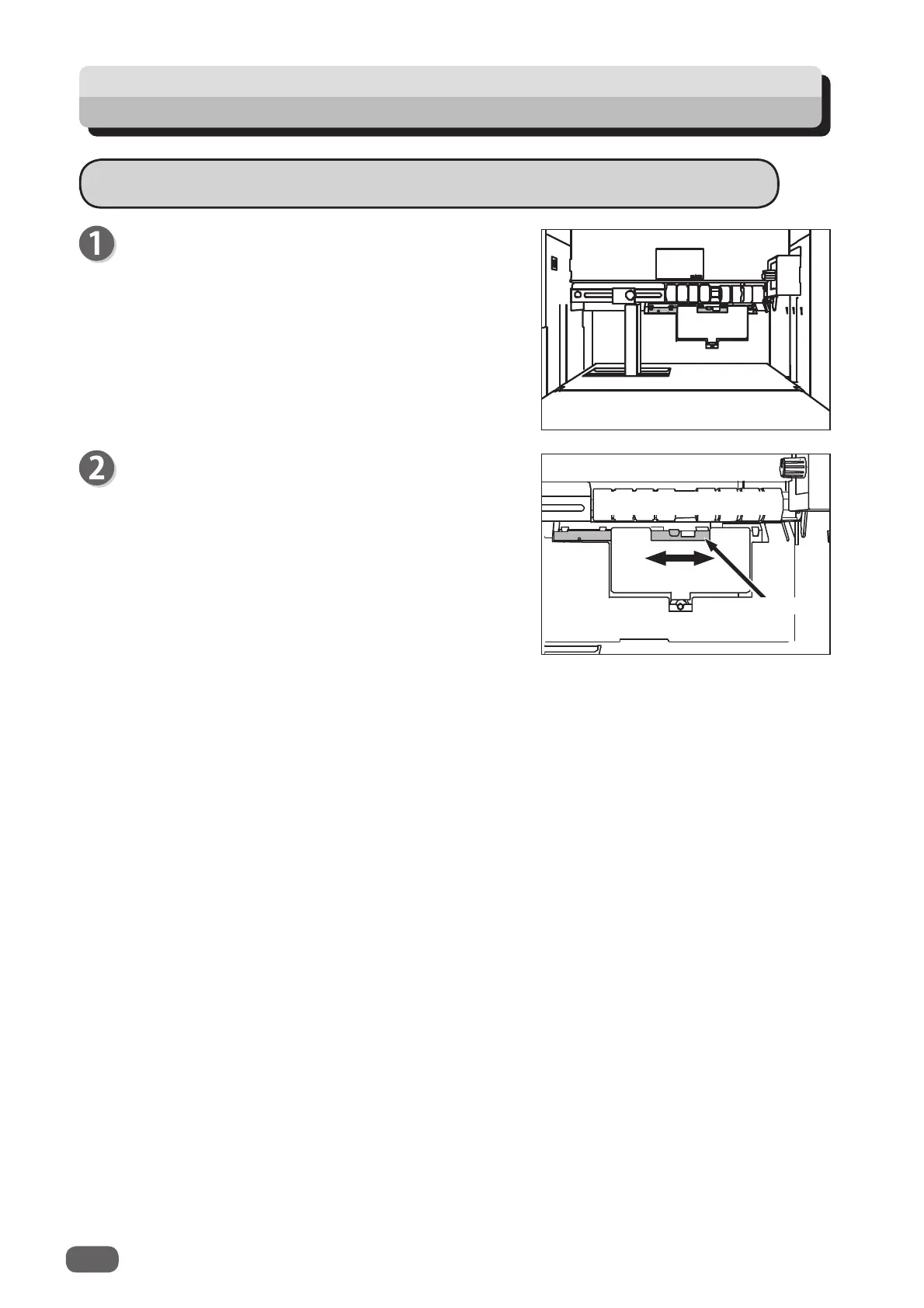

Slide the
shutter knob
to the left to close the
air
outlet
.
Document feed side
Suction unit
Open
Close
Shutter
73
75
