38
Chapter 2 Basic Operation
Copyright © 2019 Duplo Corporation All Rights Reserved
6

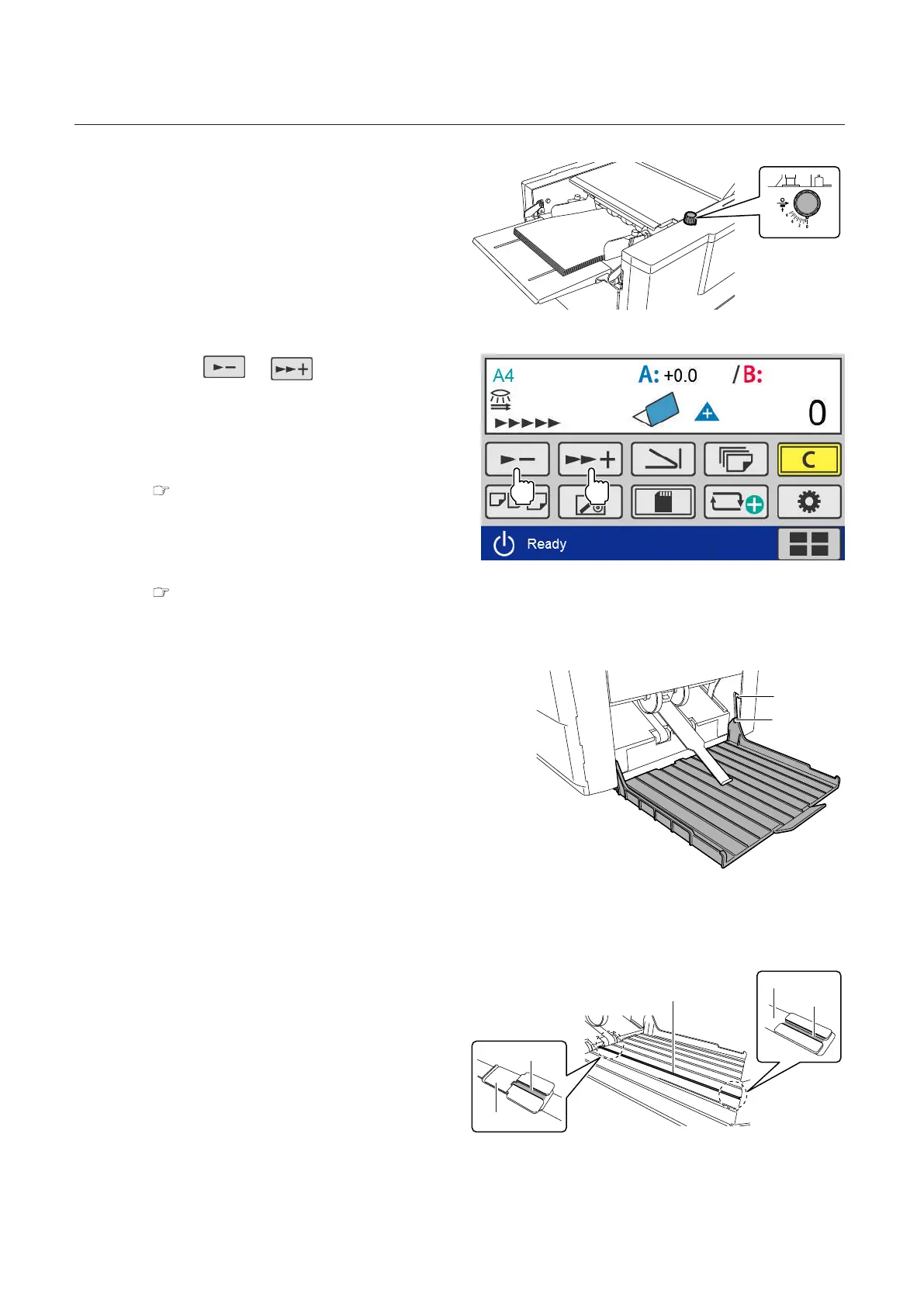

Set the separating pressure adjustment
dial to [0].
• Paperseparatingpressureincreasesasthe
scale value increases, and paper separating
pressure decreases as the scale value
decreases.
• Whendouble-feedoccurs,increasethe
separatingpressureby0.5onthescale.
7
Touch the or key to set the
processing speed.
• Ifpaperisfoldedabnormally,and
conveyance motor error occurs when
processing thick paper, set the processing
speed referring to “Thick paper mode”.
Chapter 3 “8-1. Thick paper mode” (p.61)
• Whenpaperjamorabnormalfolding
occurs by using thin and imsy paper,
adjusttheprocessingspeedreferringto
“Thin paper mode”.
Chapter 3 “8-2. Thin paper mode” (p.61)
• Theprocessingspeedcanbechangedduringfoldingprocessorintheidlingstate.However,
folding misalignment may be caused by changing the processing speed largely.
[A]
[B]
8
Adjust the position of the paper
receiving tray.
Setto[A]tostackejectedpaperdiagonally.
Setto[B]tostackejectedpaperstraight.
RefertoChapter3“7. StackingtheFolded
Paper”(p.60).
In the following cases, proceed to step 10.
• Set[FoldingMode]tosinglefold.
• Setthepaperreceivingtrayto[B].
Thepapersupportguidecannotbeusedwhenthepaperreceivingtrayissetto[B].
• Althoughthepaperreceivingtrayissetto[A],thepapersupportguideisnotused.
[a]
[b]
[A]
[a]
[A]
9
Attach the paper support guide [A] to
the paper receiving tray from the paper
ejecting section.
• Match the concave sections[b](twopoints)
on the reverse side of the paper support
guide[A] with the convex section[c] on the
paper receiving tray to attach the paper
support guide.
