3. Custom Folding

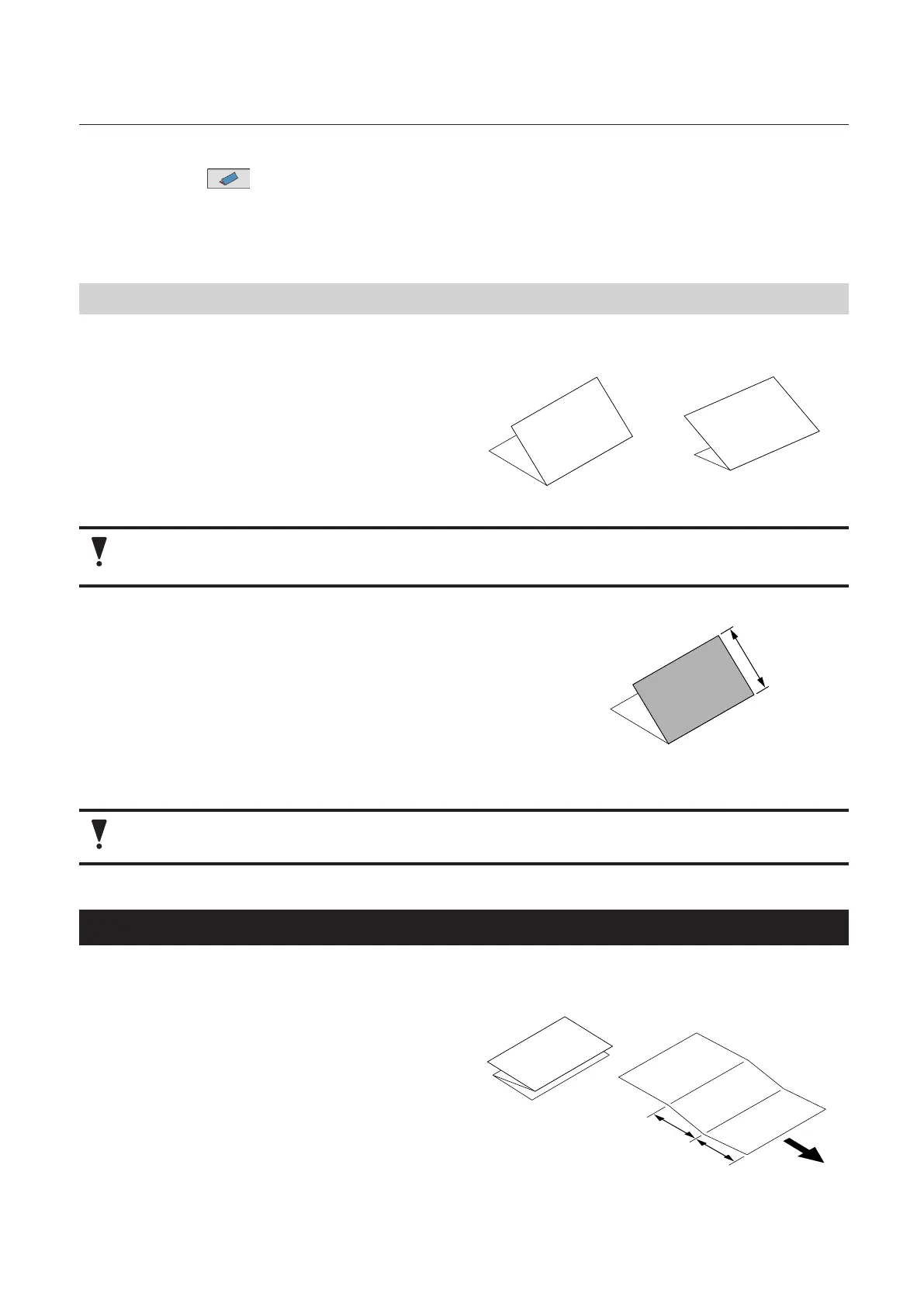

<Standard single fold> <Example of custom single fold>
• Customfoldingisanoperationmethodtofold
paper at any position by specifying the folding
stopperpositions(foldingposition)ofthe
folding plates 1 and 2.
• Thefoldablesizesareasfollows.
(widthxlength)
Maximum:311x457.2mm/12.24x18.00
inches
Minimum:74x105.0mm/2.91x4.13inches
The paper sizes which can be used may vary with the paper type, thickness, and printing state.
Length of
folded plane
• Thelengthofthefoldedplane(seegure
totheright)whichcanbefoldedbyfolding
plates 1 and 2 is restricted.
Foldingplate1:42.0to325.0mm/1.65to
12.80inches
Foldingplate2:0.0(*)/47.0to217.0mm
/0.0(*)/1.85to8.54inches
(*)Asfoldingplate2isnotusedinsingle
folding,itis0mm/0inches.
Incorrectly measuring the paper length or setting the folding stopper position can cause paper
jamming inside the folding plate.
3-1. Operation
Asanexampleofaccordion-fold,operationproceduresforcustomfoldingaredescribedwiththefollowing
setting.
A
B
Paper feed
direction
Papersize:A4(210x297.0mm/8.27x11.69inches)
Fold1:85.0mm/3.35inches(lengthA)
Fold2:95.0mm/3.74inches(lengthB)
1
Prepare a folding sample manually
using the paper to be folded.
2
Measure the length of the folding
position of the sample.
