Chapter 4 Using the DF HAND FEED KIT
Copyright © 2019 Duplo Corporation All Rights Reserved

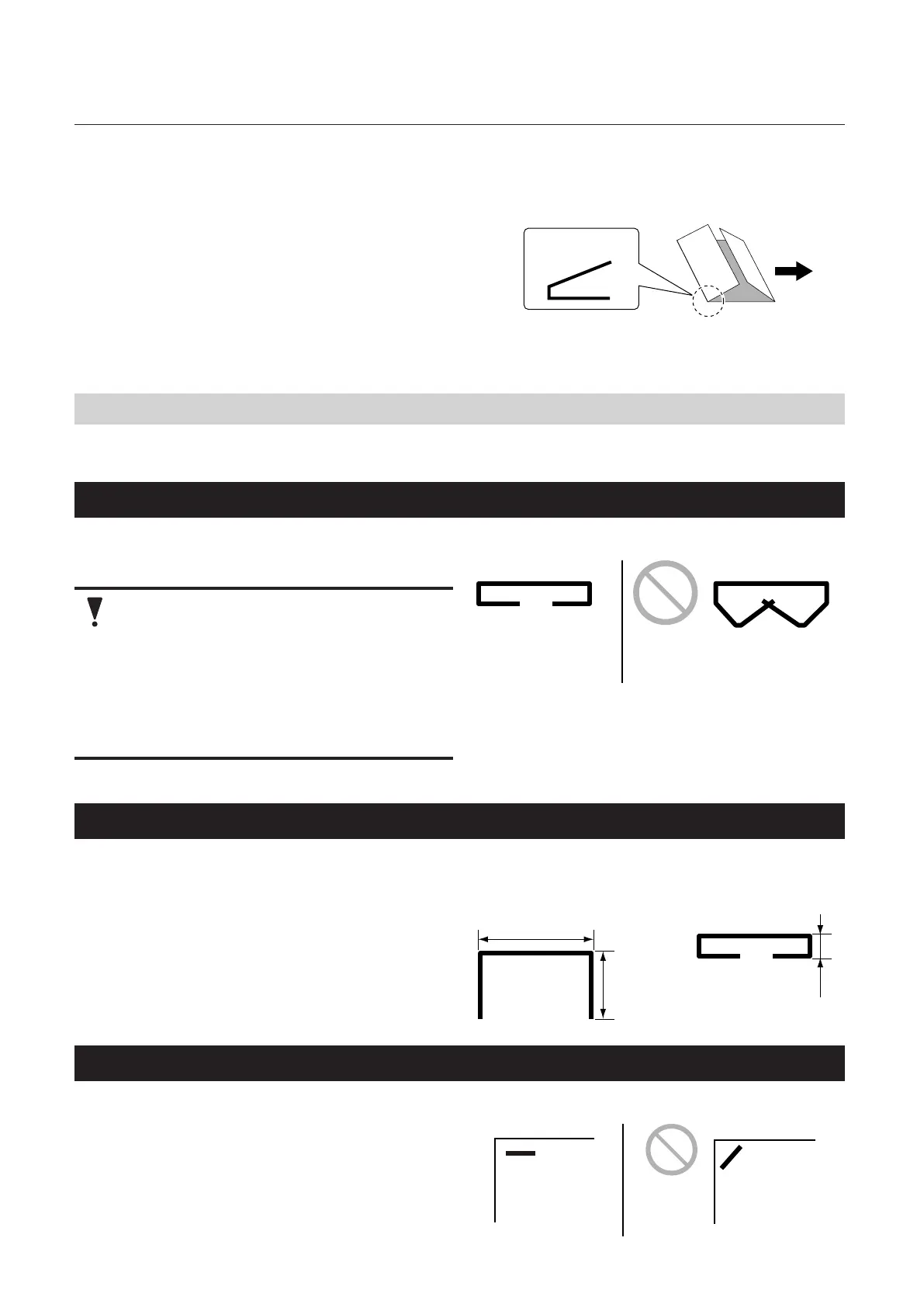

PerformingGateFoldwiththeDFHANDFEEDKITAttached
Gate fold
Double fold
Ejection
direction
WhentheDFHANDFEEDKITisattached,the
switching axis position of this machine will be
changed. Due to the this, when performing
gate fold by automatic paper feeding, the
foldinglineofsecondfoldingtendstodouble-
fold (as shown in the gure). This is not a
malfunction of the machine.
2. Staples
Applicable range of folding of stapled paper is limited.
2-1. Usable staplers
Flat type staples
Glasses type staples
Use the at type stapler as the staples are
stitched evenly.
Whenusingastaplerotherthanspecied
item,thestaplestouchthefoldingroller,
anddonotenterbetweenthefolding
rollers,orcannotprocesspaperfoldingas
thestaplestouchtheinletofthefolding
plate.
Donotuseanyotherstaplersthanspecied
astheyinjurythefoldingroller.
2-2. Usable staples
1.5 mm/0.05 inch
or less
5.0 mm/
0.20 inch
8.4 mm/
0.33 inch
[a]
[b]
[a] UseastapleNo.10(MaxNo10-1M),
standard item. The length of staple: width
of 8.4 mm/0.33 inch, and height of 5.0
mm/0.20 inch.
[b] Use a at type stapler the height of
which is 1.5 mm/0.05 inch or less in the
stapled state.
2-3. Stitchingwithstapler
Front surface
of paper
Front surface
of paper
Stitchthepaperwithstaplerinparallelwith
the paper.
