- 40
-

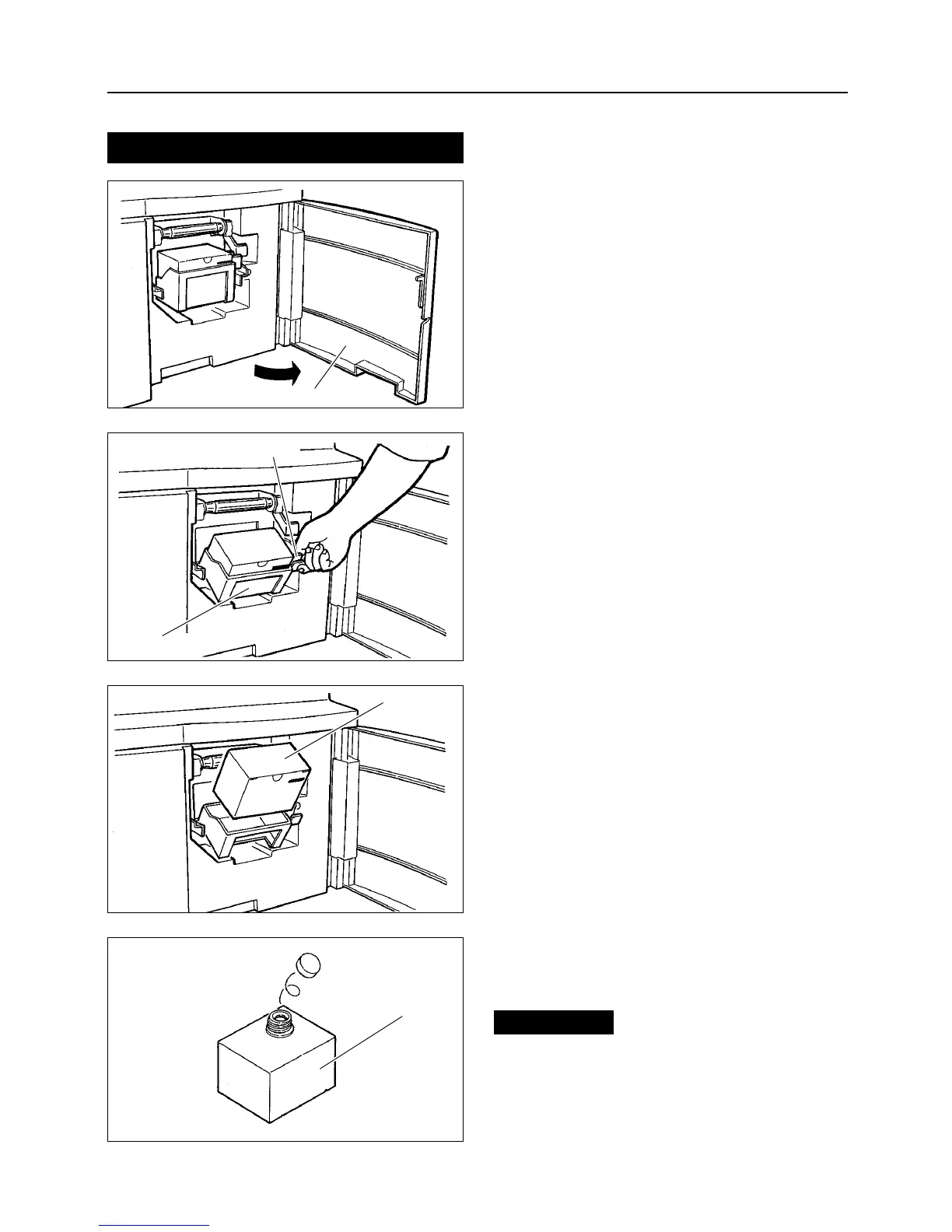

Changing the ink pack
Open the front cover.
1
Hold the ink pack holder release lever
and pull it toward you.
2
Pull up and remove the empty ink pack.
3
Twist open the cap of the new ink pack.
4
FRONT COVER
HOLDER RELEASE LEVER
INK PACK
INK PACK
INK PACK
¡
¡
Do NOT leave an uncapped INK PACK for
a period longer then necessary.
IMPORT
ANT
:
5. Replacing of consumable
41
