5. PREPARING FOR OPERATION
❊ Size change
Press the [Size Change key] for more than one second to
change the size.
When size change completes, a beep sounds.
NoteNote
This machine moves left and right.
❊ Adjustments using the step mode <Fine adjustment menu>
After changing the size, perform fine adjustments of each function in the step mode.
When the step mode completes, the newly adjusted value is saved as the new setting of the memory number.
Load actually bound paper into the upstream unit, and prepare to start adjustments.
NoteNote
Values shown in the Main Menu screen are replaced by values adjusted not only in the fine adjustment screen but also
in the step mode. However, the values shown in the setting screens of each Memory Number will remain the same.
They show values originally entered.
Starting the step mode
When the DBM-500T is connected, select whether to trim
sets bound in the step mode using the [Trim On/Off key].
On: Trims. Set to trim booklets.
Off: No trimming. Set to check stitching and folding
positions.
The setting of the [Trim On/Off key] has priority during
the step mode, regardless of whether trimming has been
set or not at the memory number used.
Pressing the [Step Mode key] in the fine adjustment
menu proceeds to the <Stitcher Adjustment> screen.
00000
01
420. 0
x
297 . 0
207. 0
x
277 . 0

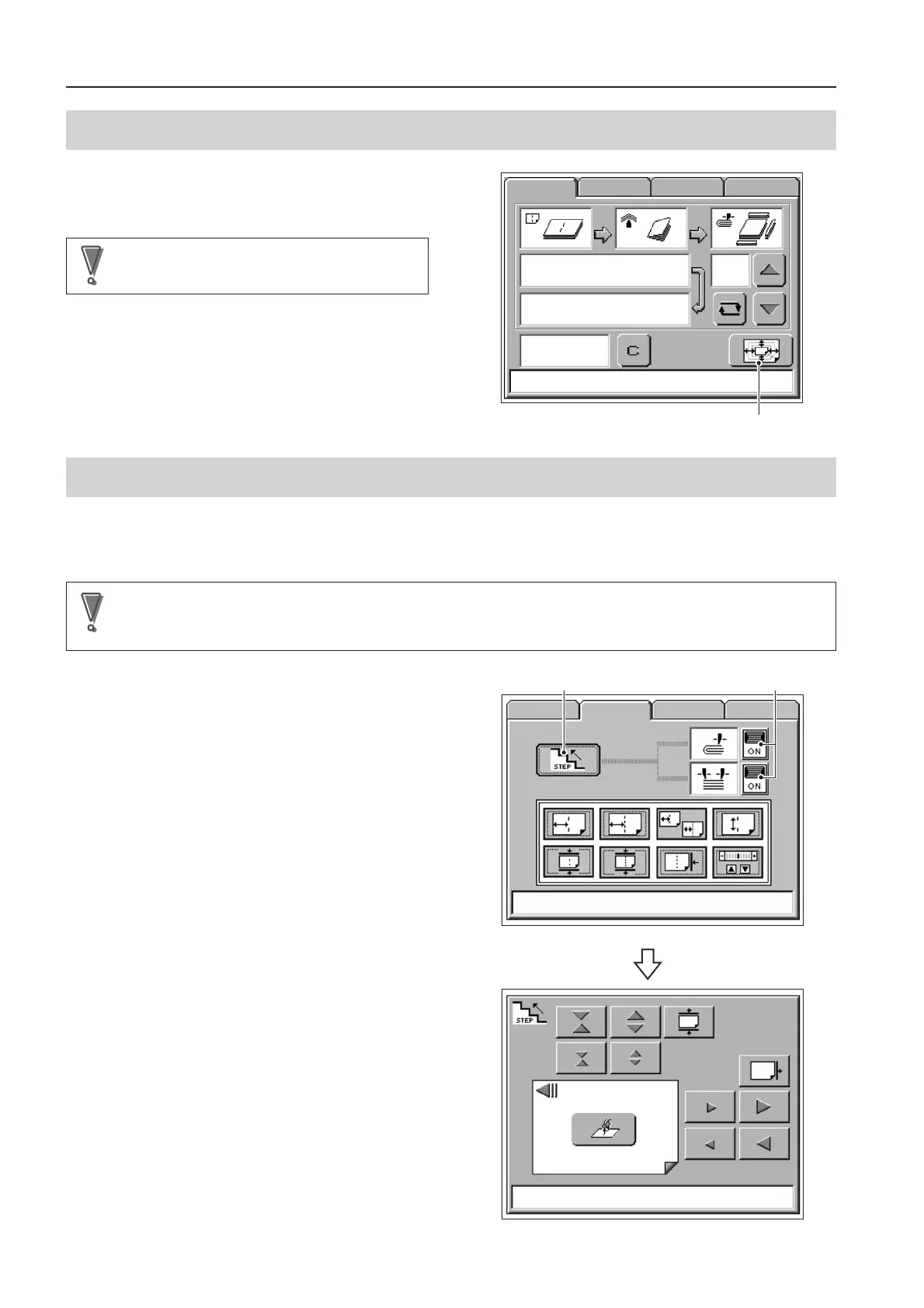

Size change key
<Main Menu> Screen
MAINMENU ADJUST OPTION ACCESSOR
Perform paper size change
Step Mode key Trim On/Off key
<Fine Adjustment Menu> Screen
<Stitcher Adjustment> Screen
MAINMENU ADJUST OPTION ACCESSOR
To Next Page
