7-2. Changing Size
00000
03
210. 0
x
297 . 0
210. 0
x
297 . 0
Size change key
Main Menu Screen
MAINMENU ADJUST OPTION ACCESSOR

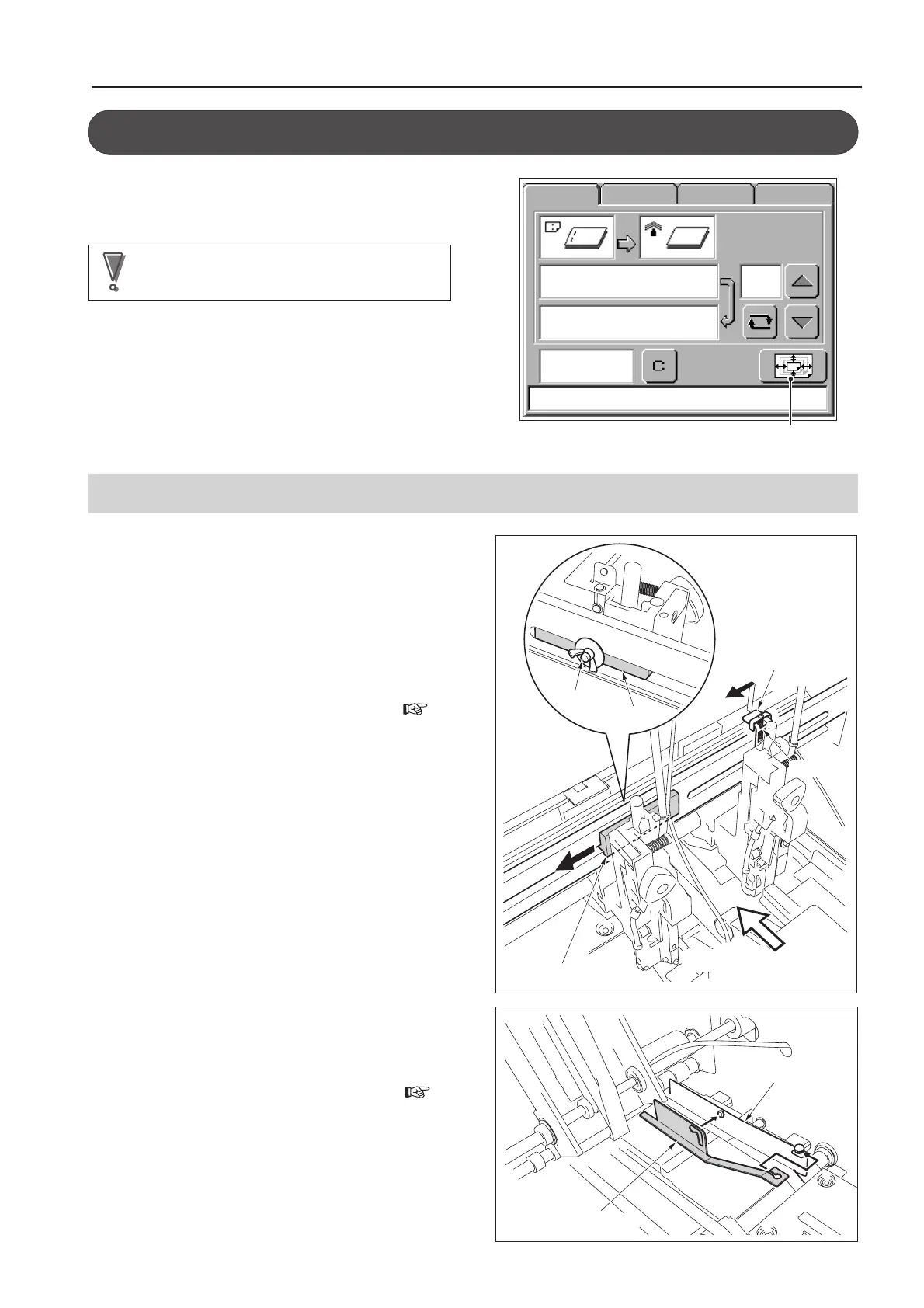

Perform paper size change
❊ Corner-stitching
Perform the following procedure after changing the size.
Stitching at the R side
When the stitching width is set above 220 mm/8.66 inch,
loosen the knobscrew of the clamp L, move the clamp to
the end of the R side, and secure.
When the stitching width is set below 219 mm/8.62 inch,
loosen the knobscrew of the clamp L, move the clamp to
the end of the L side, and secure.
Turn Off the wire feed detection unit of the L side. (
Refer to page 61.)
Replace the corner stitching guide of the folding side
guide.
Paper conveyance direction
Clamp L
Clamp R
Clamp L
Knobscrew
Handle
R side
L side
Corner stitching guide
Folding side guide
Press the [Size Change key] for more than one second to
change the size.
When size change completes, a beep sounds.
NoteNote
This machine moves left and right.
Stitching at the L side
Secure the clamp L at the back of the stitcher head with
the knob screw.
Move the clamp R to the L side by lifting the handle.
Turn Off the wire feed detection unit of the R side. (
Refer to page 61.)
7. SIDE STITCHING/CORNER STITCHING PROCEDURE
