4. NAMES AND FUNCTIONS OF CONTROL
PANEL (MAIN MENU)

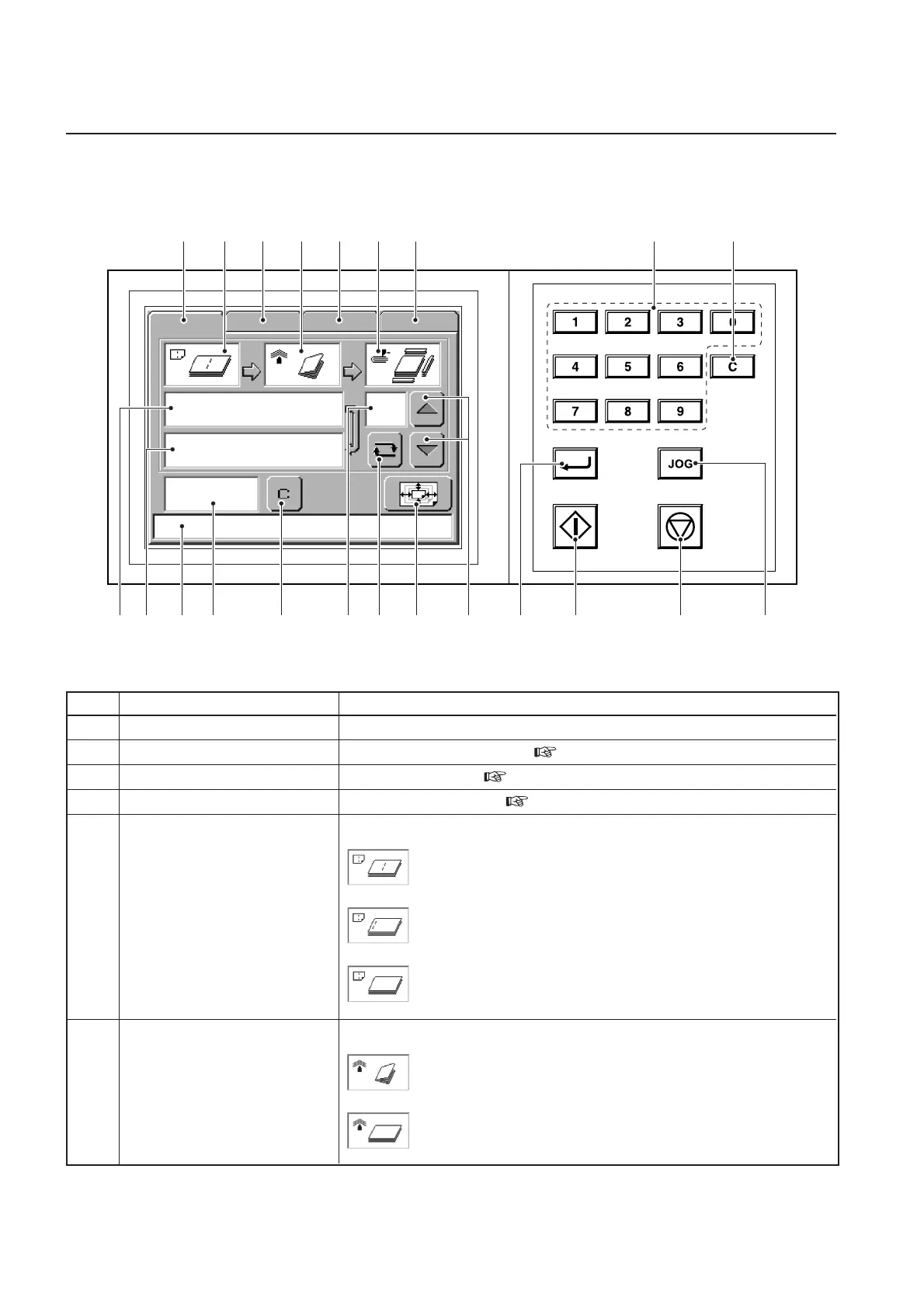

The control panel is composed of the touch panel and numerical pad.
The following describes the main menu which is the standard screen displayed normally, and the numerical pad.
[Numerical Pad][Touch Panel]
MAINMENU ADJUST OPTION ACCESSOR
01
00000
420. 0
x
297 . 0
207. 0
x
277 . 0
9bkbmbpbn bo
bs
bt
bq
br
ckcl cmbl8
1526374
No. Name Function
1
Main menu tab Displays the main menu.
2
Fine adjustment menu tab Displays fine adjustment menus. ( Refer to page 56.)
3
Option menu tab Displays option menus. ( Refer to page 61.)
4
Accessory menu tab Displays accessory menus. ( Refer to page 63.)
5
Stitch setting display Displays the stitch setting of the memory number currently selected.
Indicates that saddle stitching is selected.
Indicates that side stitching (corner stitching) is selected.
Indicates that “Stitch Off” is selected.
6
Fold setting display Displays the fold setting of the memory number currently selected.
Indicates that “Fold On” is selected.
Indicates that “Fold Off” is selected.
