Duplo INSTRUCTION MANUAL User Manual

76

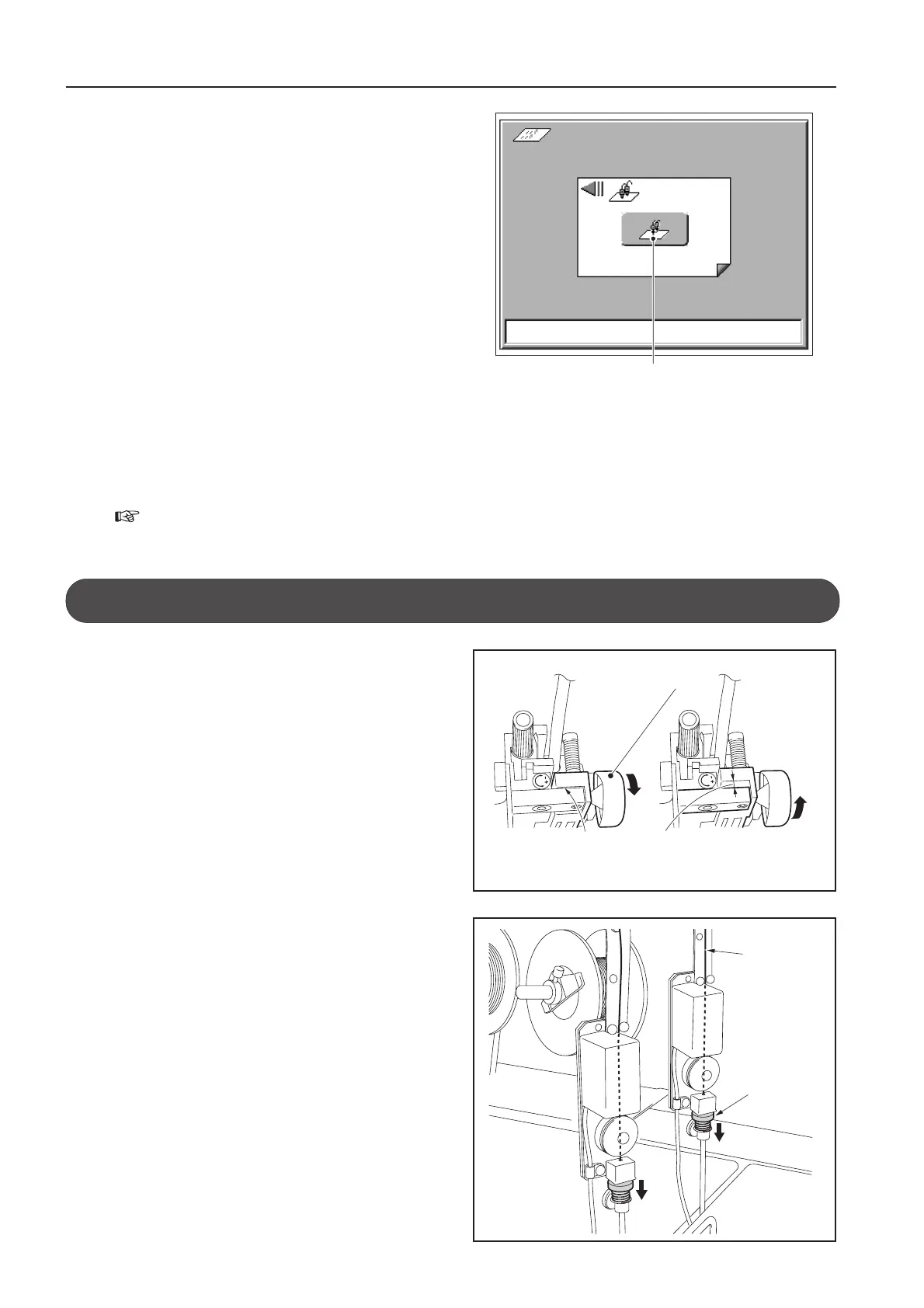

12. STITCHER HEAD
77
77
7 Press the [Stitch Test Action key].
After several stitching operations, the paper will be
ejected to the side stitching stacker.
Stitch Test Action key
<Stitch Test Action> Screen
12-5. Removing Wire
11
11
1 Turn the triangular handle to the non
stitching position where there is a clear-
ance as shown right.
Wire
Release disk
Triangular handle
ClearanceNo clearance
Stitching position Non stitching position
22
22
2 While holding down the release disk, pull
out the wire.
33
33
3 Return the triangular handle to the stitch-
ing position where there is no clearance as
shown right.
88
88
8 Check the stitched state, and return to the
main menu by pressing the MAIN MENU tab.
If the state is not satisfactory, adjust the stitcher
head and repeat stitching tests.
(
Refer to “12-6. Adjustments” on page 77.)
