If booklets remain at the folding rollers.
Open the shutter, and rotate the rollers with the handle provided to remove the booklets.
Handle
Folding roller
Booklet

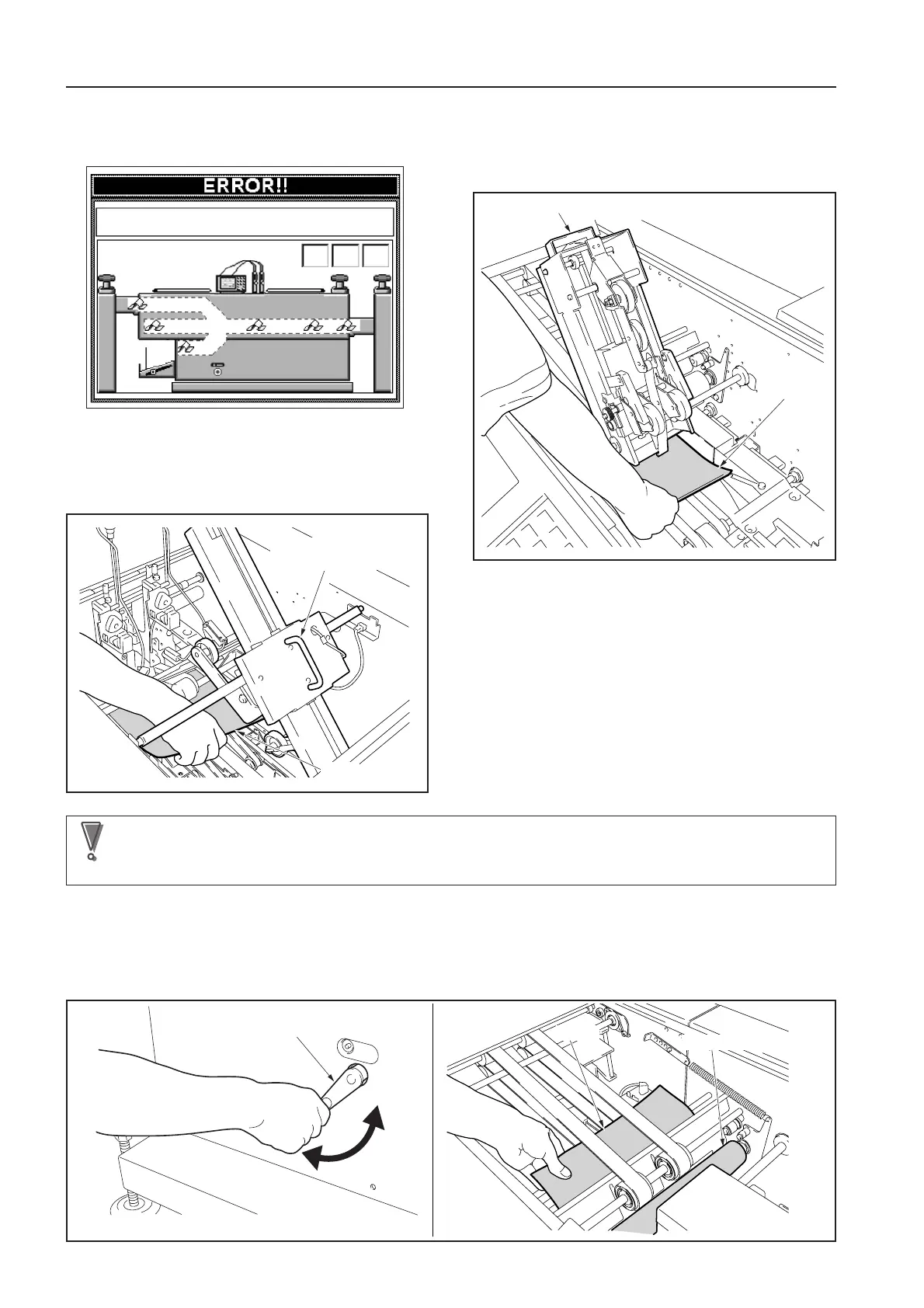

11. CORRECTING PAPER JAMS
The machine stops when paper jams. The jams locations
are displayed on the touch panel.
Paper
Conveyance roller
lifting handle
If paper jams at the stitching section
Open the top cover, lift up the conveyance roller lifting
handle, and remove the jammed paper.
If paper jams at the folding section
Open the top cover, lift up the back guide handle, and
remove the jammed paper.
Booklet
Back guide handle
NoteNote
To remove jammed booklets (paper), be careful not to move the stitching side jogger and folding side guide which
have been finely adjusted.
If moved, perform size change and fine adjustments again.
