6. SADDLE STITCHING PROCEDURE
00000
01
420. 0
x
297 . 0
207. 0
x
297 . 0
Setting key
Memory No.

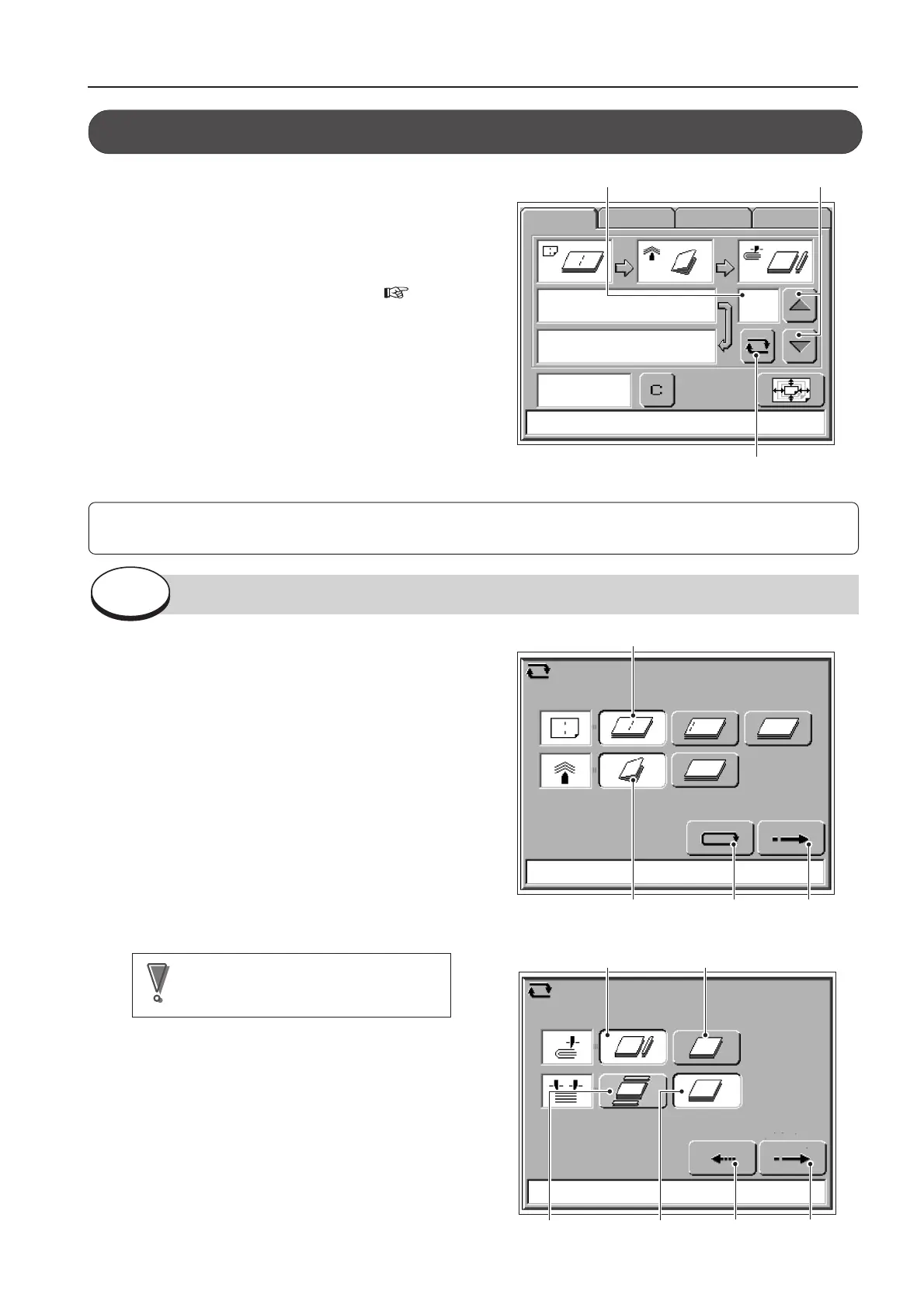

<Main Menu> Screen
MAINMENU ADJUST OPTION ACCESSOR
Memory number selection key
Selecting the finishing mode
The following describes the procedure for the conditions:
A3 vertical (length 420 mm/17.00 inch x width 297 mm/11.00 inch), saddle stitching, fold On, trimming On
Step
1
6-1. Settings
Select the memory number whose settings are to be
changed using the [Memory number selection key] and
press the [Setting key]. The “Select Binding Mode”
screen appears.
The settings of the memory number selected are saved.
If there is no need to save, use memory No. 0. (
Refer
to page 15.)
Next keyCancel key
Saddle Stitching key
Fold On key
<Select Finishing Mode> Screen
Select and enter the stitching and folding mode.
11
11
1
Setting the stitching mode.
Press the [Saddle Stitching key] to set “Saddle
stitching”.
The folding mode is automatically set to “Fold On”.
After setting the trimming mode, press the [Next key] to
proceed to the [Select Tirmming mode] screen.
Pressing the [Cancel key] cancels the values entered,
and then returns to the main menu.
22
22
2
Set the trimming mode.
Pressing the [Trim On key], set “Trim On”.
NoteNote
If DBM-500T is not connected, or when
“Fold Off” is selected, “Trim On” cannot
be selected.
After setting the trimming mode, press the [Next key] to
proceed to the [Enter Paper size] screen.
Next keyBack key
Head/Foot Trim On key
Fore-edge Trim On key
Trim Off key
Trim Off key
<Select Trimming Mode> Screen
To Next Page
