3. NAMES AND FUNCTIONS
bm
9
7
8
6
bk
bl
5
4
3
2
1
L side
R side
Paper direction

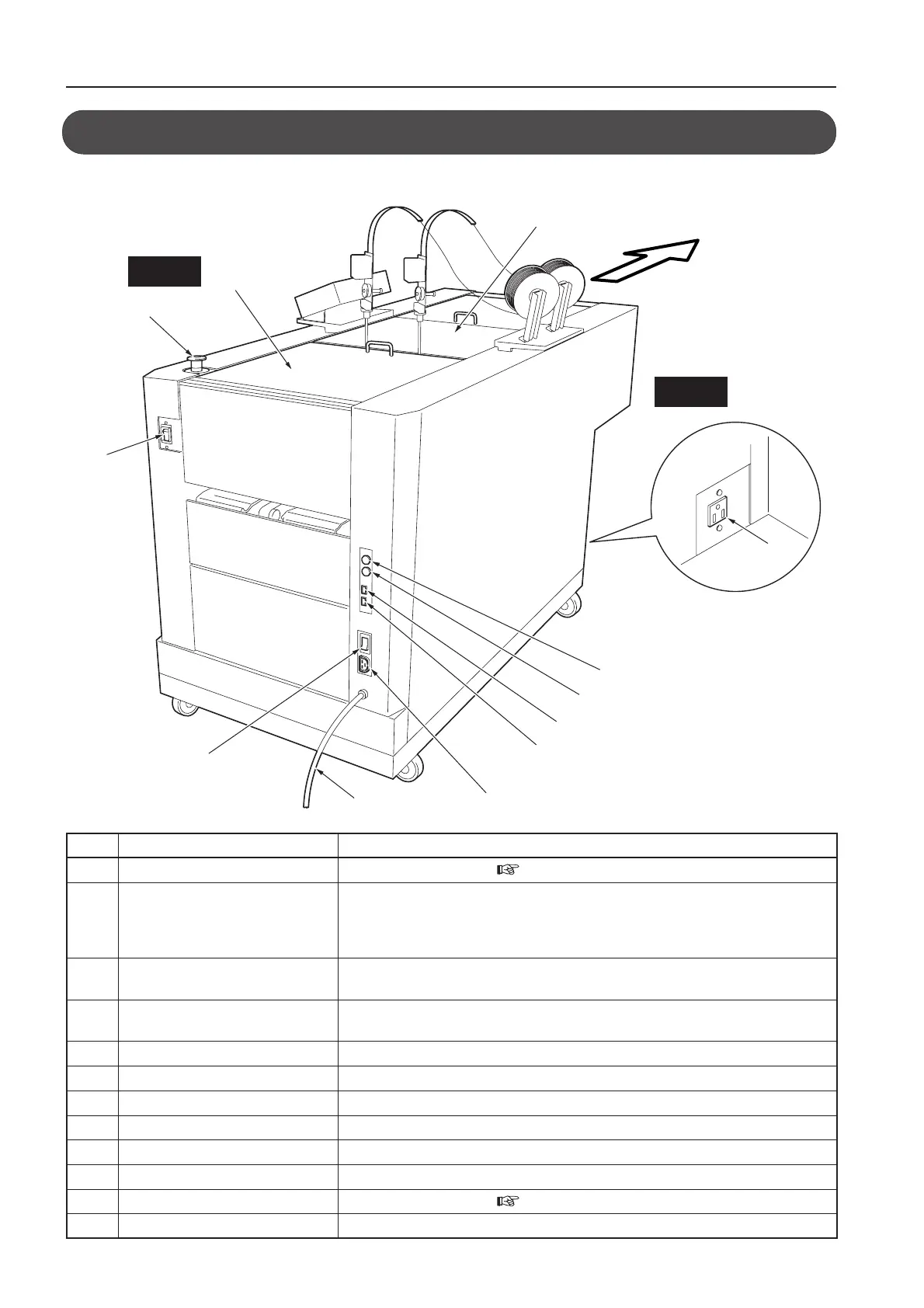

3-1. External Parts
No. Name Function
1
Main power switch Refer to “5-1. Power ON”. ( Refer to page 14.)
2
Emergency stop button Press to stop the machine in emergency. Paper being fed will stop halfway. To resume
operations, remove this paper. To stop the machine normally, use the [Stop Key] on
the upstream unit or this machine.
To release this switch, rotate it to the right.
3
Front top cover Cover for ensuring user safety
This machine will not operate if open.
4
Rear top cover Cover for ensuring user safety
This machine will not operate if open.
5
Option connector Optional power connector
6
E port connector-1 Connects the E port cable from the upstream unit.
7
E port connector-2 Connects the E port cable to the downstream unit.
8
D port connector-1 Connects the D port cable from the upstream unit.
9
D port connector-2 Connects the D port cable to the downstream unit.
bk
Power cord Supplies power to this machine.
bl
Power switch Refer to “5-1. Power ON”. ( Refer to page 14.)
bm
Stacker connector Connects the power cord of the belt stacker.
In this manual, the left side of the paper conveyance direction is indicated as L side and the right side as R side.
