7

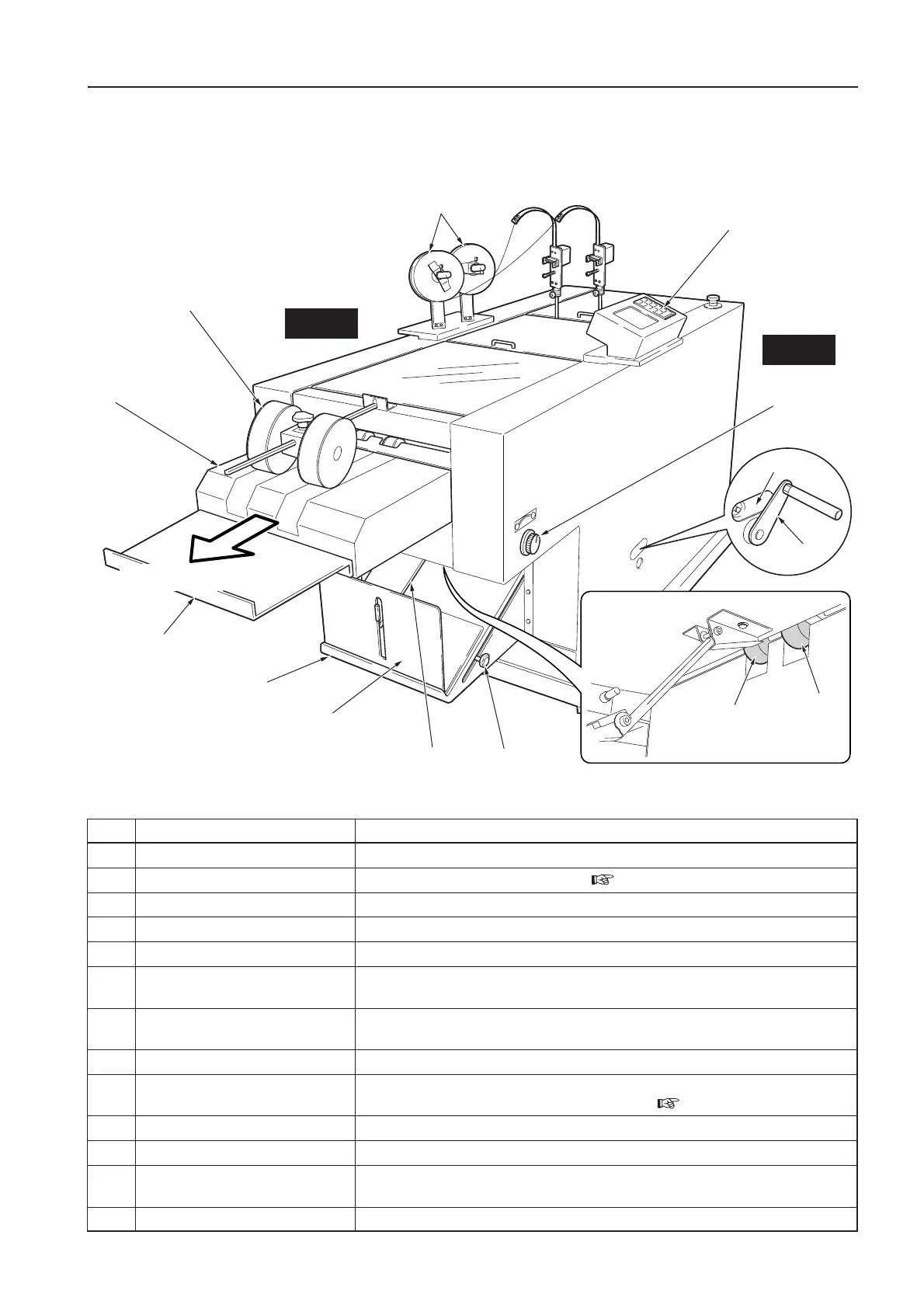

3. NAMES AND FUNCTIONS
No. Name Function
bn
Wire reel Stitches paper
bo
Control panel Refer to “Description of Control Panel”. ( Refer to page 12.)
bp
Folding stopper adjustment dial Adjusts the angle of the folding stopper to correct folding misalignment.
bq
Deflector strip Holds booklets sent to the side stitching stacker.
br
Side stitching stacker Receives booklets which are side stitched (corner stitched).
bs
Stacker plate Receives booklets which are saddle stitched, and folded.
When stacked poor due to small booklet size, use it at upper position.
bt
Belt stacker Sends booklets folded into two to the stacker plate.
Connect the power cord plug of the Belt Stacker Unit to the outlet of the DBM-500
ck
Paper guide wheel Holds paper sent to the stacker and feeds to the stacker plate.
cl
Shutter Opening for inserting the handle Normally leave closed.
This machine will not operate if the shutter is open. ( Refer to pages 70 and 81.)
cm
Handle Used to remove jammed paper and clean the folding stopper
cn
Side stitching stopper Stops booklets which have been side stitched (corner stitched).
co
Side stitching stopper adjustment Adjusts the position of the side stitching stopper.
knob
cp
Ejection roller Ejects side stitched (corner stitched) booklets.
cl
cn
bq
bn
bo
bp
br
bs
bt
co
ck
cp
cp
cm
L side
R side
Paper direction
To Next Page
