8
3. NAMES AND FUNCTIONS
No. Name Function
1
Stitcher head Binds paper with wire.
2
Side jogger Aligns the sides of paper.
3
Side stitching stopper Rises during side stitching (corner stitching) to stop paper.
4
Side stitching guide Prevents paper from curling during side stitching (corner stitching).
5
Back jogger Aligns the leading and trailing edges of paper.
6
Conveyance driven roller Helps to convey paper to the paper alignment section.
7
Conveyance roller lifting handle Lift to remove paper jammed at the paper alignment section.
8
Conveyance roller Conveys paper to the paper alignment section.

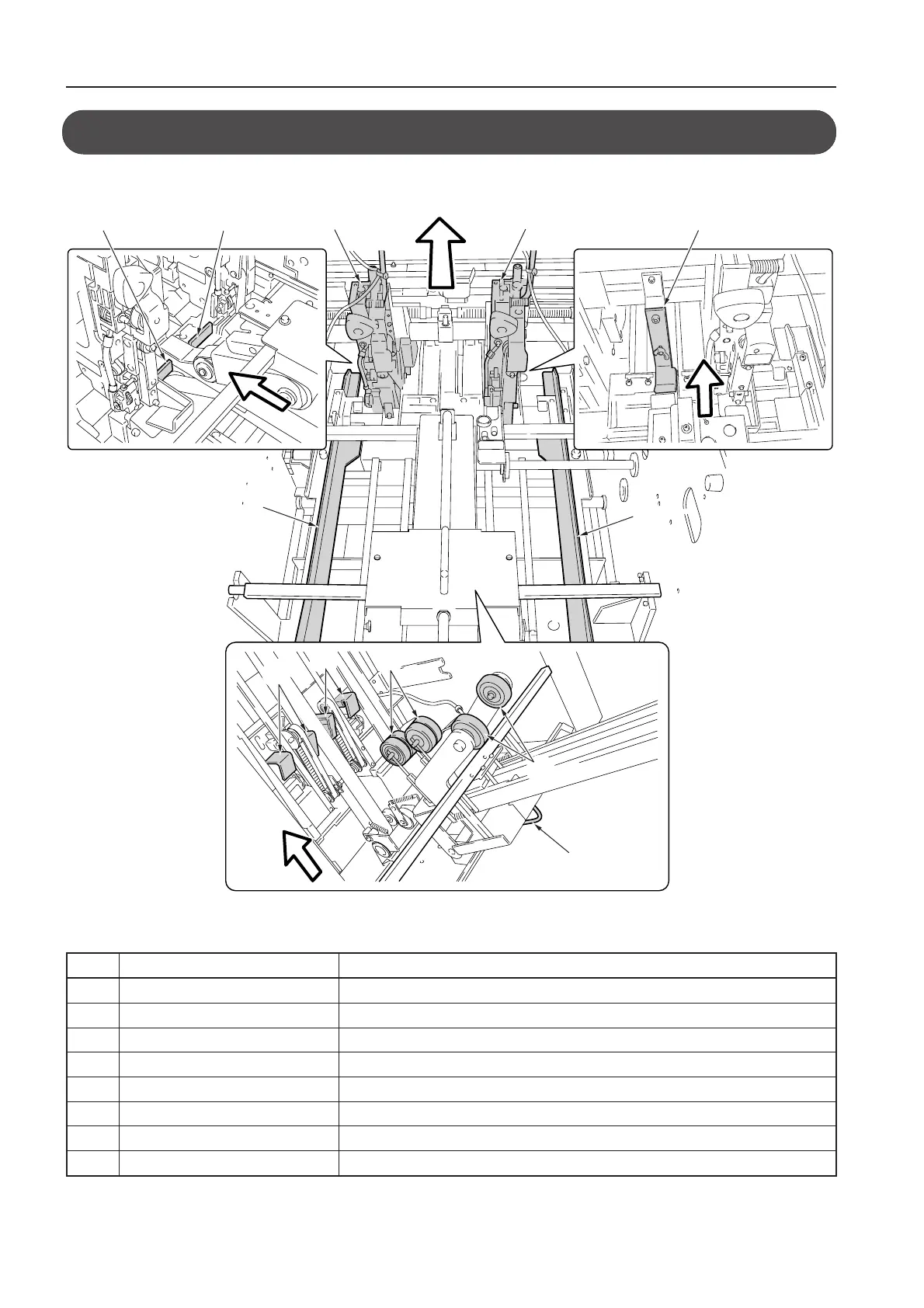

3-2. Internal Parts
4
5
6
2
8
7
5
2
1
1
33

Paper direction
When the conveyance roller open
