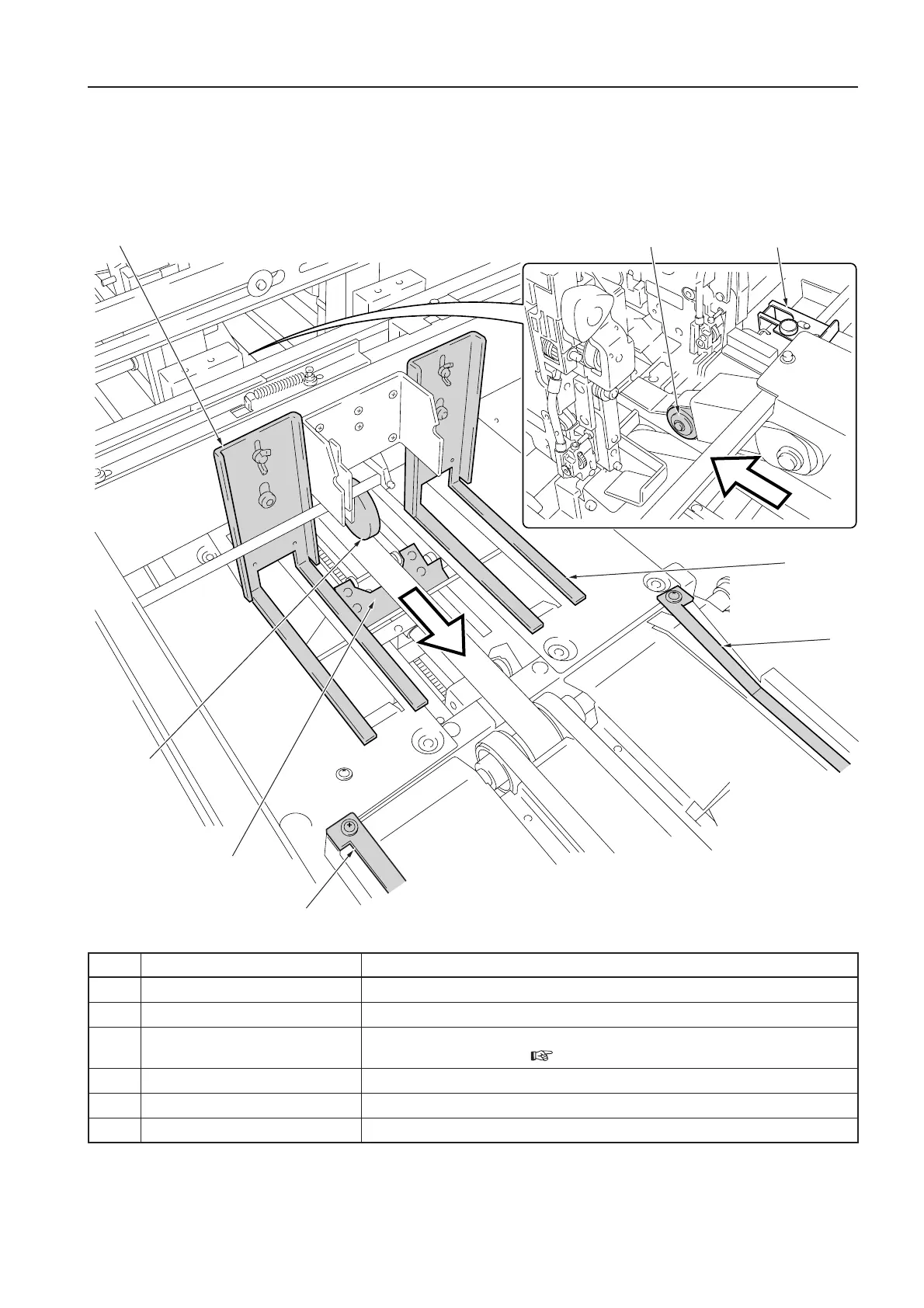

3. NAMES AND FUNCTIONS
No. Name Function
9
Saddle stitching stopper Rises to stop paper during saddle stitching.
bk
Ejection driven roller Helps to deliver stitched booklets to the folder.
bl
Saddle stitching guide Prevents paper from curling during saddle stitching.
The height can be adjusted. ( Refer to page 66.)
bm
Folding side guide Holds both ends of booklets during folding.
bn
Ejection roller Ejects stitched booklets to the folder.
bo
Ejection roller stopper Solves the poor alignment of insert sheets in insert mode.
bm
bm
bn
bk
9
bl
bl
bo
Paper direction
