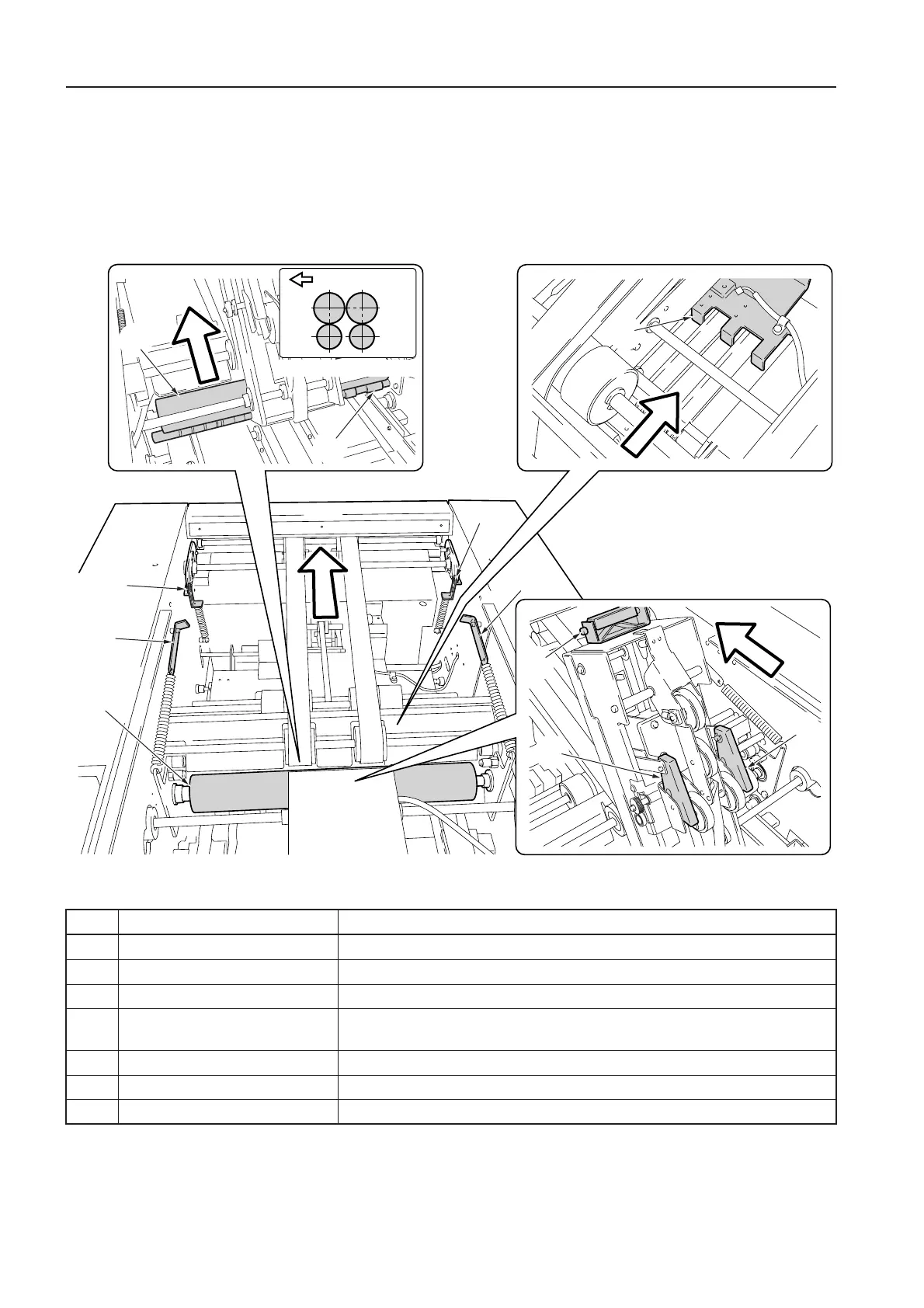

3. NAMES AND FUNCTIONS
No. Name Function
bp
Folding roller Roller for folding booklets into two
bq
Press roller Presses booklets folded into two.
br
Pressure adjustment hook Adjusts the pressure of the press roller.
bs
Conveyance pressure adjustment Switches the conveyance pressure of booklets folded into two.
hook
bt
Folding stopper Stops booklets during folding.
ck
Folding back guide lifting handle Lift to remove booklets when paper jams at the folding unit.
cl
Folding back guide Presses the ends of booklets during folding.
bt
bq
cl
Roller attaching position
ck
cl
bq
bq
br
br
bs
bp
bp
Paper direction
