12. STITCHER HEAD
33
33
3 Pass the wire between the two felt disks
and through the wire return lock.
44
44
4 Insert the wire into the tip of the wire tube
upper.
Be careful not to bend the wire.
55
55
5 Check that the triangular handle is at the
stitching position where there is no clear-
ance as shown right.
Wire
Wire return lock
Felt disks
Triangular handle
ClearanceNo clearance
Stitching position Non stitching position
Wire
Roller
Bearing
Wire feed detection unit
22
22
2 Pass the wire to the wire feed detection
unit.
Sandwich the wire between the bearing and roller.

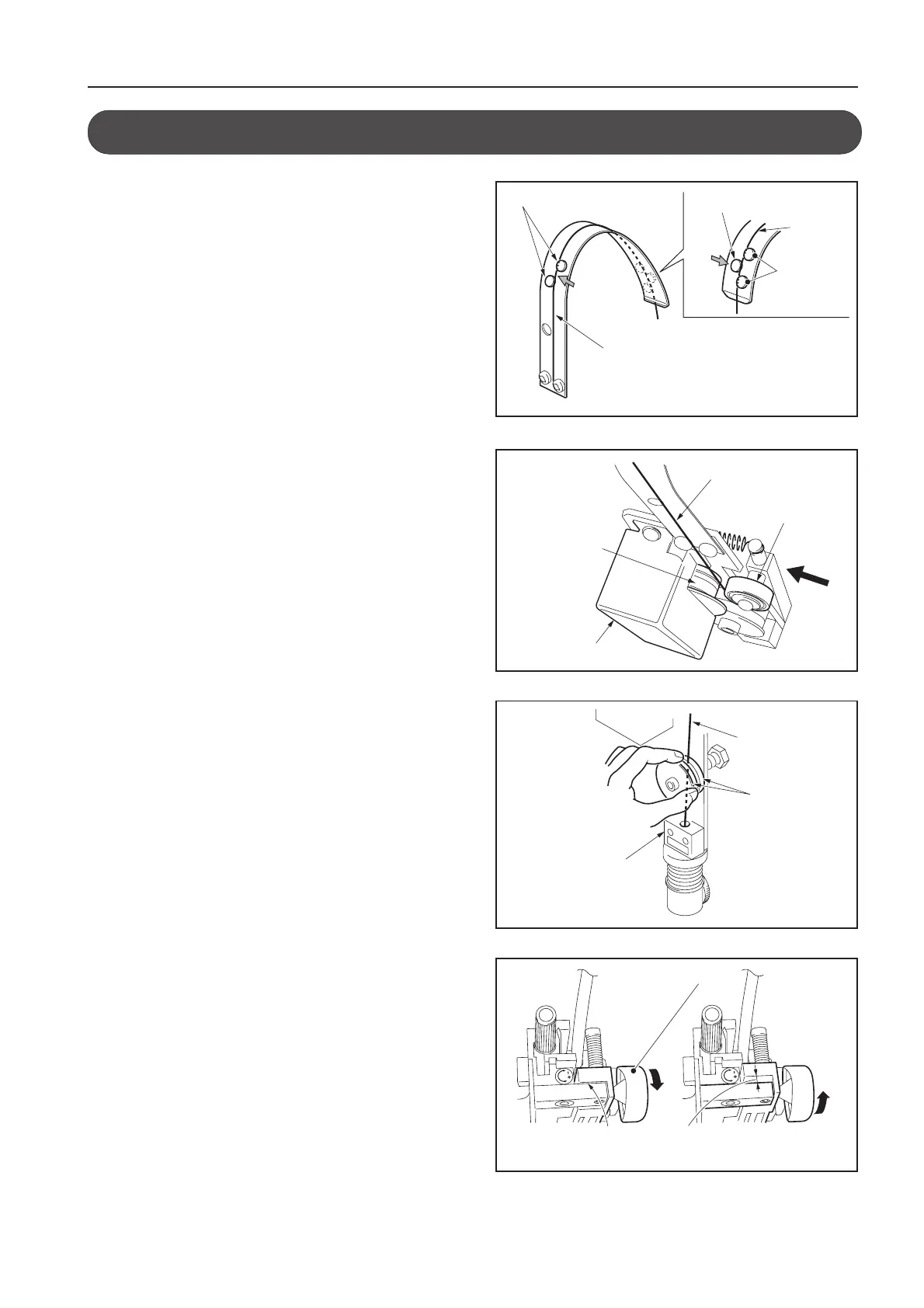

12-3. Feeding the Wire
11
11
1 Pass the wire through the wire guides.
Wire
Wire
Wire guide
Wire guide
Wire guide
