36
6. SADDLE STITCHING PROCEDURE

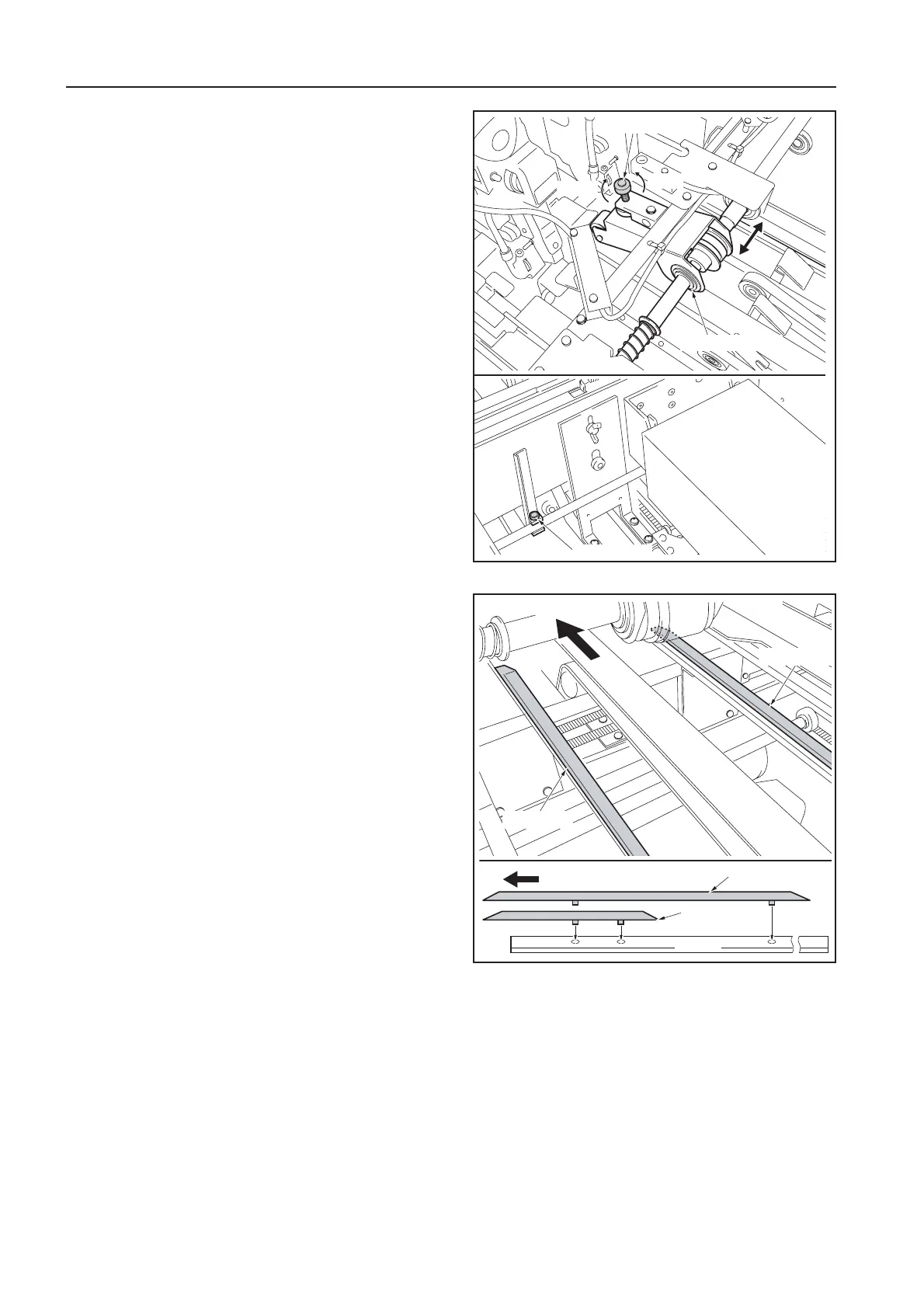

When there are conveyance belt marks on the booklet
Use the belt guide kit for saddle-stitching binding.
Replace the ejection roller unit.
Release the knobscrew A so that the ejection
roller unit stregth can be sdjusted using the knob.
Belt guide L
Paper direction
Paper direction
Belt guide L
Belt guide L
Belt guide S
Knob screw B
Ejection roller unit
Knob screw A
Strong
Weak
Tighten the knobscrew B. Normally, leave it loose.
Attach the belt guide L or S.
If the paper length is more than 170 mm and less
than 297 mm, use belt guide S. If more than 297
mm to 500 mm, use belt guide L.
To Next Page
