43
❊ Adjustments at the stitching section
89
bl
Stitch key
76
bk
31 2 45
<

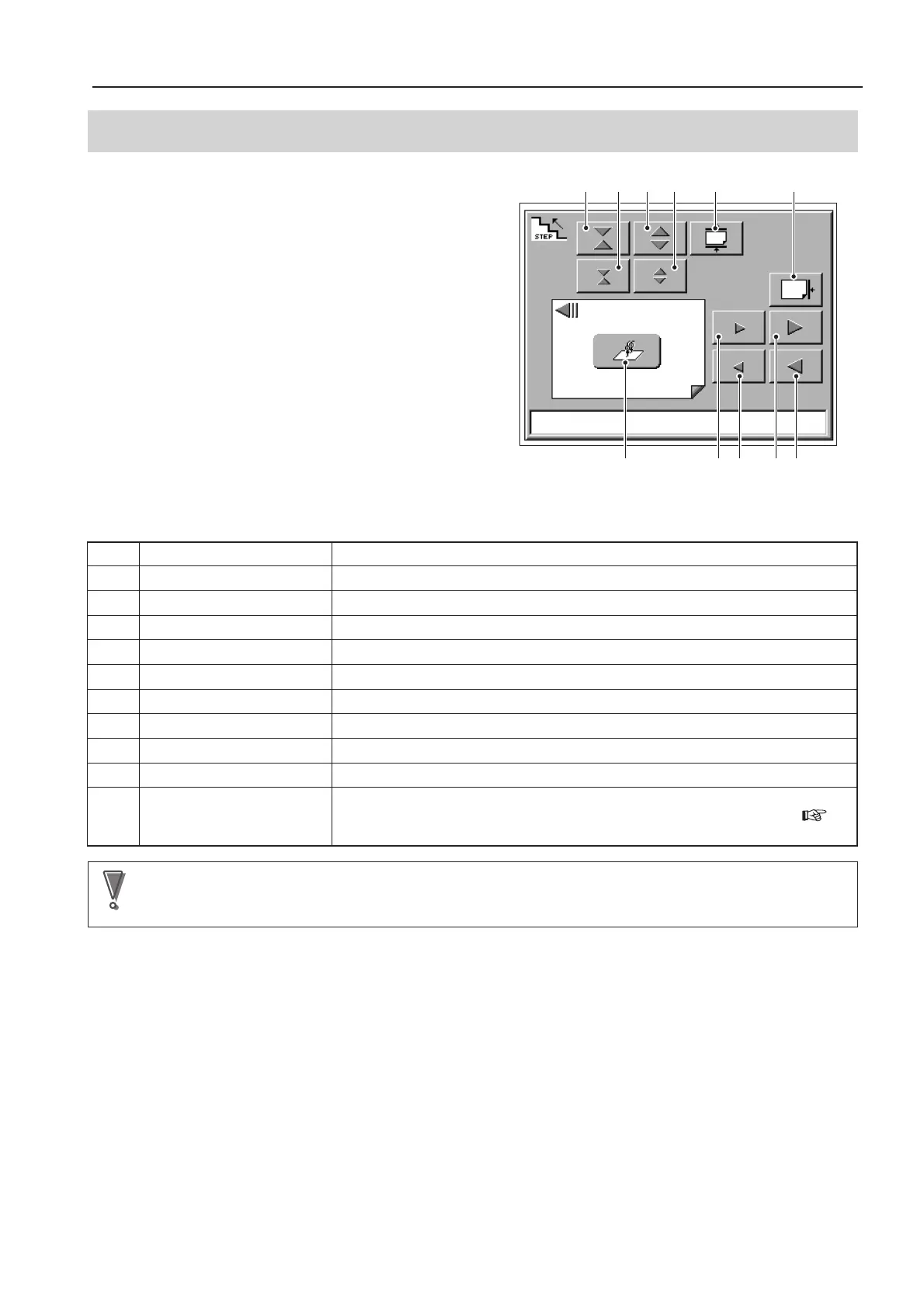

Stitcher Adjustment> Screen
Adjust the positions of the side jogger and back jogger for
aligning paper using the [Fine Adjustment key].
Adjust the position using keys
1
to
4
and
6
to
9
.
Perform jogging using keys
5
and
bk
.
Adjust so that the joggers touch the paper edges lightly.
After adjusting, press the
bl
[Stitch key].
Stitching is performed, and the set advances to the folding
stopper.
1
Fine adjustment of side jogger
The side jogger moves inward by about 1 mm/0.04 inch.
2
Fine adjustment of side jogger
The side jogger moves inward by about 0.2 mm/0.008 inch.
3
Fine adjustment of side jogger
The side jogger moves outward by about 1 mm/0.04 inch.
4
Fine adjustment of side jogger
The side jogger moves outward by about 0.2 mm/0.008 inch.
5
Side jogger operations Activates the side jogger once.
6
Fine adjustment of back jogger The back jogger moves backward by about 0.1 mm/0.004 inch.
7
Fine adjustment of back jogger The back jogger moves backward by about 1 mm/0.04 inch.
8
Fine adjustment of back jogger The back jogger moves forward by about 0.1 mm/0.004 inch.
9
Fine adjustment of back jogger The back jogger moves forward by about 1 mm/0.04 inch.
bk
Back jogger operations Activates the back jogger once.
bl
Stitch key Paper is stitched, ejected, and the step mode ends.
When set to “Fold On”, the paper is conveyed to the folding stopper after stitching. (
Refer to page 44.)
NoteNote
Fine adjustments can be performed only within the range of ±5 mm/±0.20 inch after size change. If the paper size
entered and that actually used differ by more than 5 mm/0.20 inch, the difference is beyond adjustment. In this case,
enter the correct paper size again, and perform the size change.
7. SIDE STITCHING/CORNER STITCHING PROCEDURE
To Next Page
