8. NO-STITCHING FOLDING PROCEDURE
Entering the paper size
11
11
1
Enter the length of the paper.
Press the box
1
, and enter “4200/17.00”.
Press the [Return key] to confirm the value.
Range of input: 178.0 to 508.0 mm/7.01 to 20.00 inch
(When connect with DBM-2KT: 178.0 to 500.0 mm/7.01 to 19.69 inch)
The folding position is displayed.
The value from the leading edge of the paper to the folding position is displayed.
When the paper length is entered, the standard folding position will automatically be displayed.
*
Standard folding position: (Paper length ÷ 2) mm /inch
Here, it is displayed as “210.0/08.27” (420 ÷ 2 = 210/16.54 ÷ 2 = 8.27).
To change the value, press the box
3
, and enter the desired value.
Range of input: 89.0 to 254.0/3.50 to 10.00) (Difference with the paper length should be within 89 to 254 mm/3.50
to 10.00 inch)
Press the [Return key] to confirm the value.
22
22
2
Enter the width of the paper.
Press the box
2
, and enter “2970/11.00”.
Range of input: 120.0 to 356.0 mm/4.72 to 14.02 inch
Press the [Return key] to confirm the value.
After entering the paper size, press the [Next key] and proceed to the <Set Trimming Position> screen.
As paper size is restricted according to binding conditions, the machine will not proceed to the next step if the paper size
entered is not appropriate.
Pressing the [Back key] returns to the <Select Binding Mode> screen.
210. 0
420. 0
297. 0
1
2
3

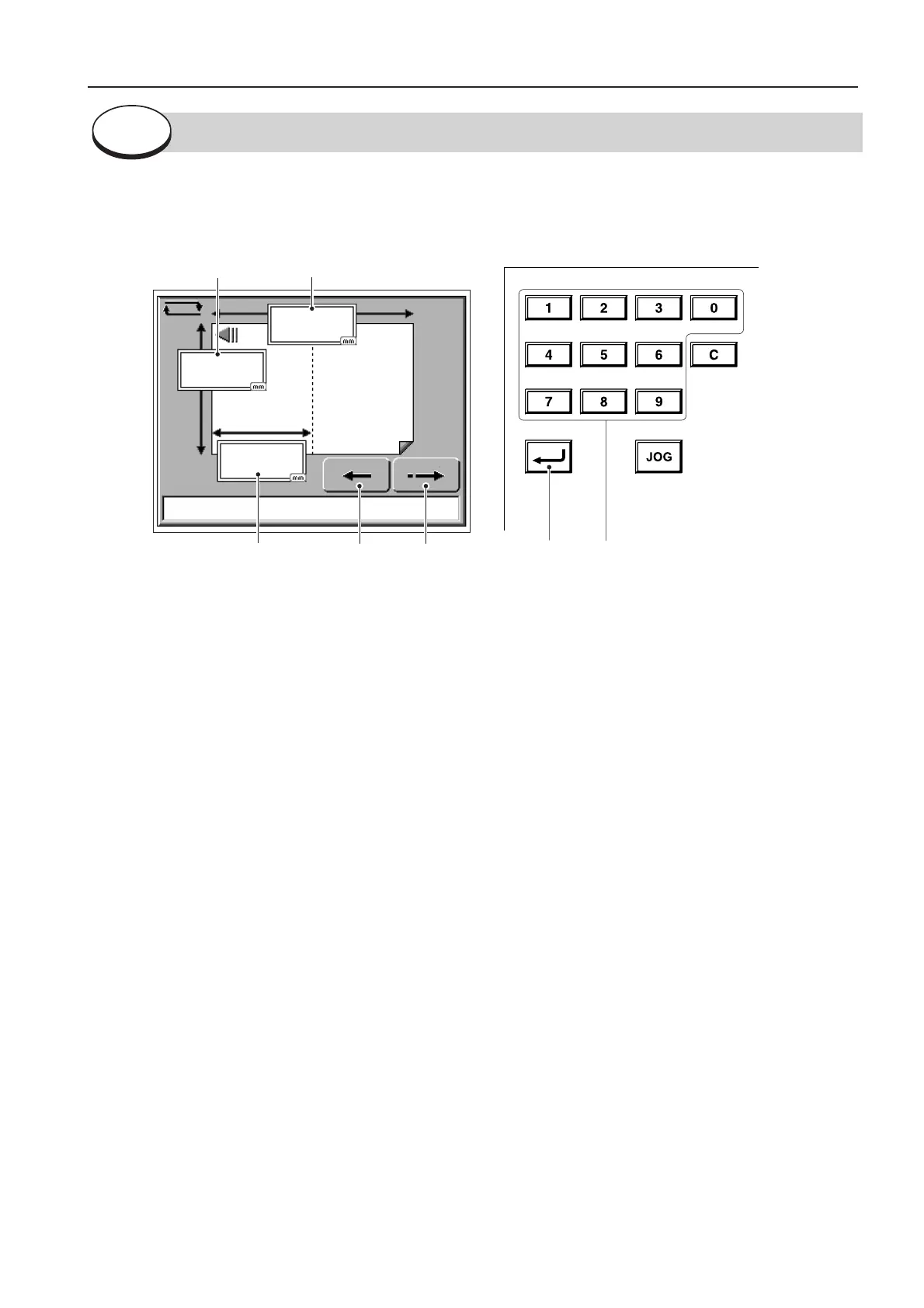

<Enter Paper Size> Screen
<Numerical Pad>
Return keyNext keyBack key Numerical keys
Enter the paper length and width. Standard values for the folding position are displayed according to the paper size entered.
Pressing inside the box showing a value resets the value to 0.
Enter the desired value using the [Numerical keys], and press the [Return key] on the numerical pad to confirm the value.
Pressing the box again while entering the value returns to the original value.
