8. NO-STITCHING FOLDING PROCEDURE
8
9
bl
Fold key
76
bk
3
1
2
4
5

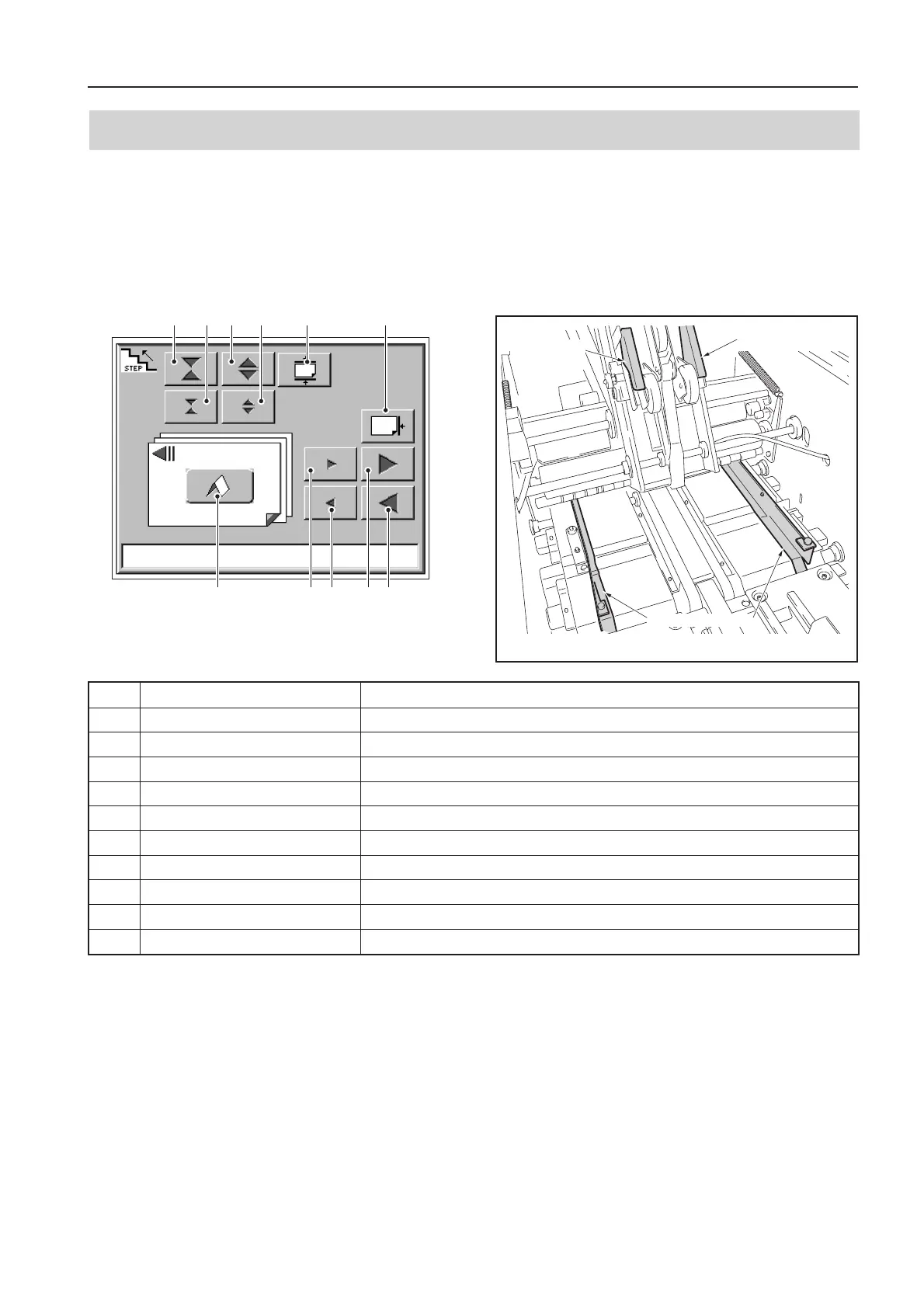

< Folder Adjustment > Screen
Folding side guide
Folding back guide
Folding back
guide
“Opened state of folding back guide”
❊ Adjustments at the folding section (When [Fold On] is selected)
Adjust the positions of the folding side guides and folding back guides using the [Fine Adjustment key].
Adjust the position using keys
1
to
4
and
6
to
9
.
Perform jogging using keys
5
and
bk
.
Adjust so that the guides touch the booklet edges lightly.
After adjusting, press the
bl
[Fold key].
The booklets are folded and ejected, and the step mode ends.
 If ON is selected using the [Trim On/Off key] at the start of the step mode, booklets are trimmed and ejected.
1
Fine adjustment of folding side guide The folding side guide moves inward by about 1 mm / 0.04 inch.
2
Fine adjustment of folding side guide The folding side guide moves inward by about 0.2 mm / 0.008 inch.
3
Fine adjustment of folding side guide The folding side guide moves outward by about 1 mm / 0.04 inch.
4
Fine adjustment of folding side guide The folding side guide moves outward by about 0.2 mm / 0.008 inch.
5
Folding side guide operations Activates the folding side guide once.
6
Fine adjustment of folding back guide The folding back guide moves backward by about 0.1 mm / 0.004 inch.
7
Fine adjustment of folding back guide The folding back guide moves backward by about 1 mm / 0.04 inch.
8
Fine adjustment of folding back guide The folding back guide moves forward by about 0.1 mm / 0.004 inch.
9
Fine adjustment of folding back guide The folding back guide moves forward by about 1 mm / 0.04 inch.
bk
Folding back guide operations Activates the folding back guide once.
bl
Fold key Booklets are ejected after folding, and the step mode ends.
