4. Aligning the hook support
Caution: Danger of injury!
Switchthemainswitchoff.
Align the hook support only with the machine switched off.
Note
Please observe the necessary program setting as described
in chapter 1.1.
Standard checking
When the machine has reached its initial position after switching
on the main switch, it must be possible to stake out the hook
support 2 with the arresting pin 1.
–
Switch the machine on.
The machine and the fabric support plate run to their initial
position.
–
Switch the machine off.
–

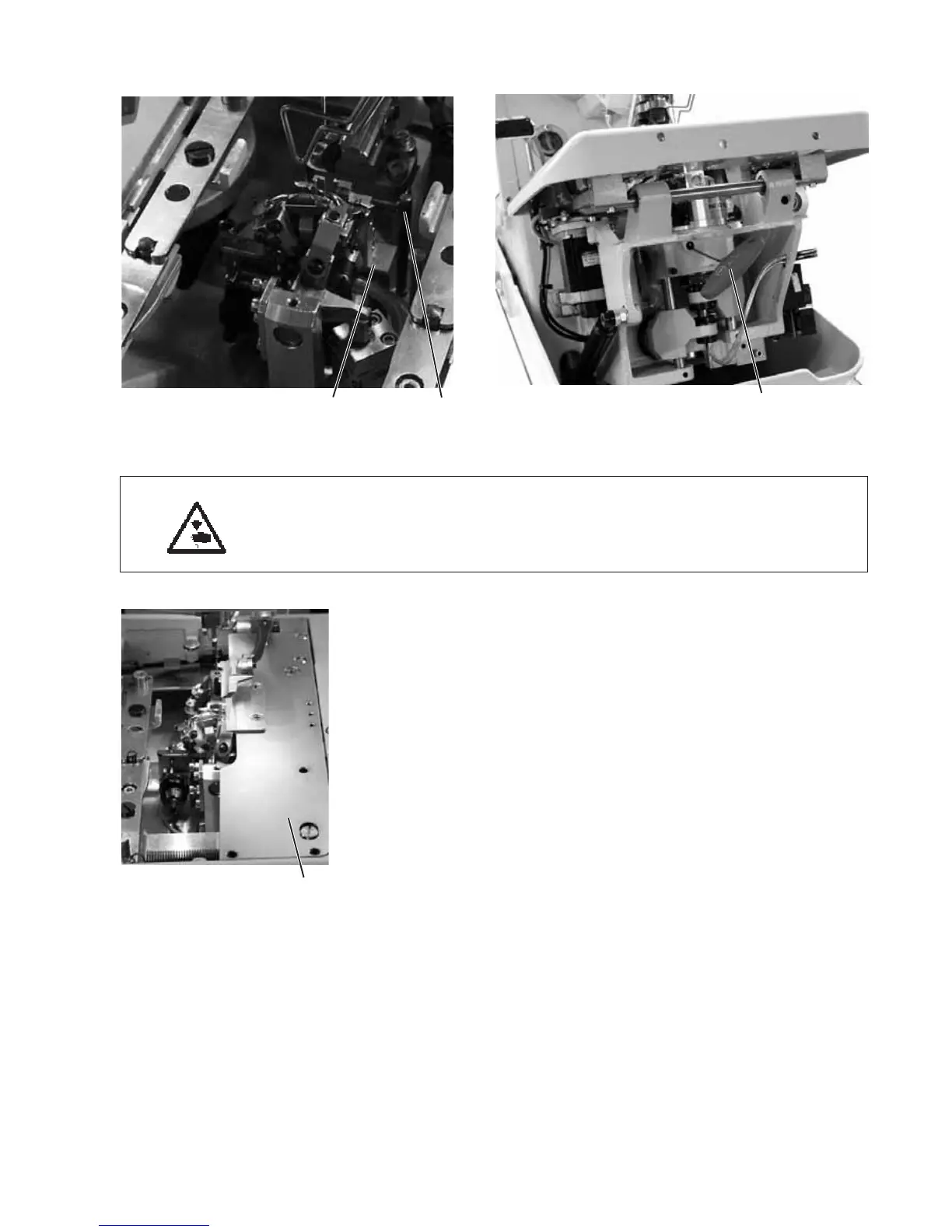

Check whether the hook support 2 can be staked out with arresting
pin 1.
Correction
–
Remove the clamping plates 4.
–
Switch the machine on.
The machine runs to its initial position.
–
Switch the machine off.
–
Loosen the clamping screw at the toothed belt wheel with the
hexagonal spanner 3.
–
Turn the hook support in such a way that it can be staked out
with pin 1.
–
Tighten the clamping screw with the hexagonal spanner 3.
9
21
3
4
