DURKOPP ADLER 559 - Aligning the Clamping Plates as to the Fabric Support Plate

8.2 Aligning the clamping plates
Caution: Danger of injury!
Switchthemainswitchoff.
Adjust the clamping plates only with the machine switched off.
Standard checking

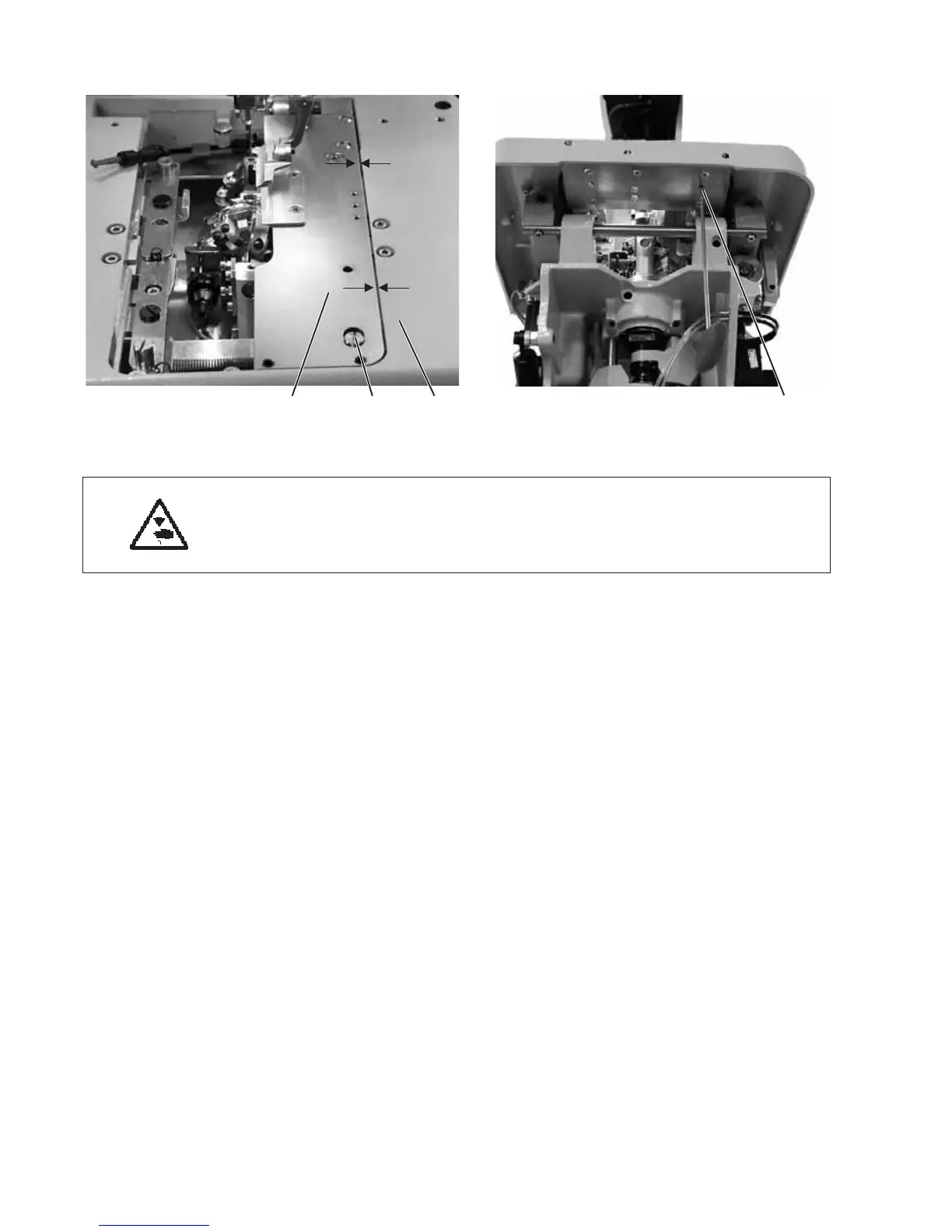

Both clamping plates 3 must be adjusted in such a way that the
distance between clamping plate and fabric support plate 1 is equal
everywhere (distance X1 = distance X2).
–
Put on the right clamping plate.
–
Check distance X1 and X2.
Correction
–
Insert the right clamping plate.
–
Loosen the screw 4 with a hexagonal spanner.
–
Turn the eccentric 2 correspondingly.
–
Tighten screw 4.
–
Insert and adjust the left clamping plate.
18
4
321
X1
X2
