23. Annex

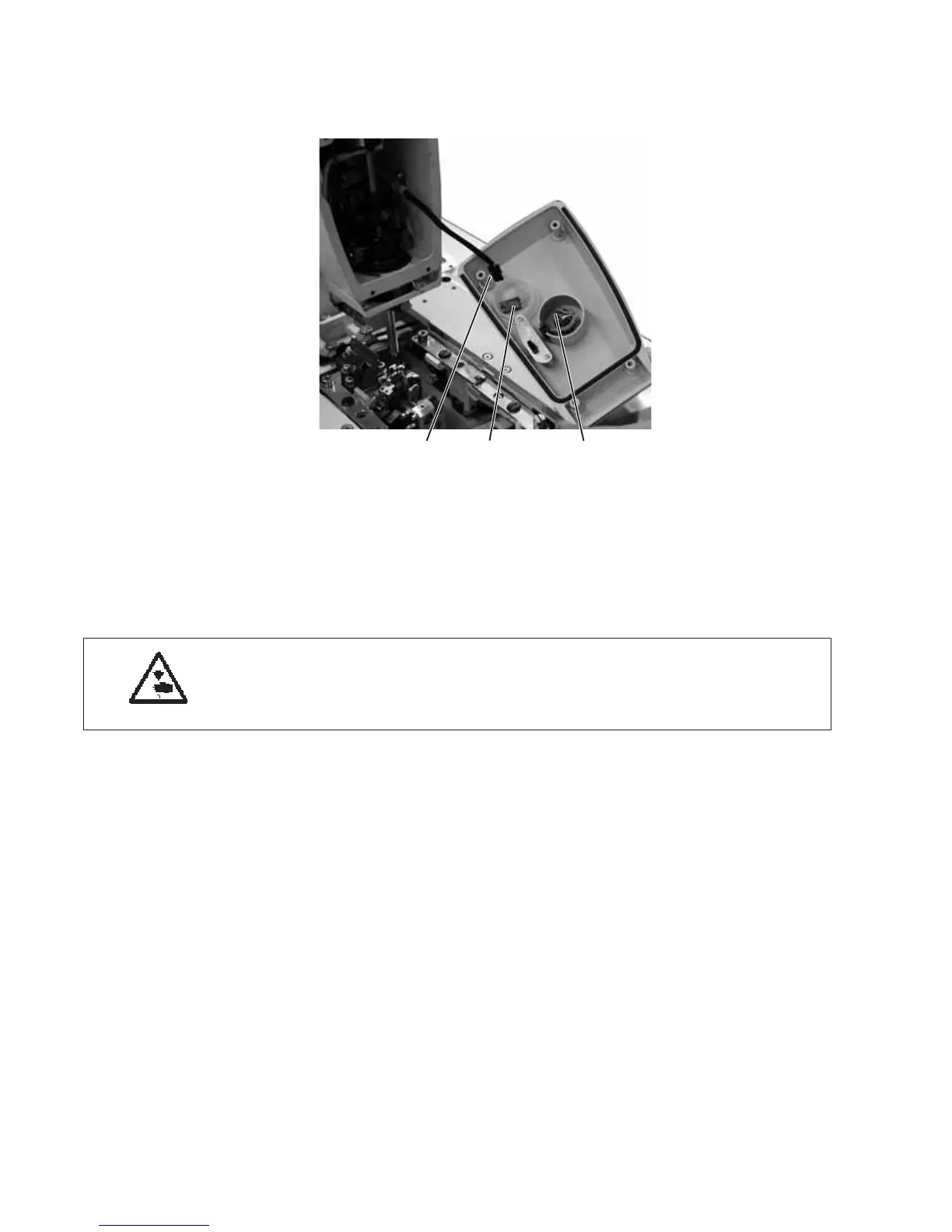

23.1 Adjusting operations without head cover

When the head cover is taken off, the machine is secured against

unintentional starting.

If you want to operate the machine without head cover for adjusting

purposes, the plug 2 can be put on the connecting cable 3.

The plug is in the switch casing 1.

Caution: Danger of injury !

Remove the head cover for adjustment work only.

Exercise utmost caution when making adjustments with

the machine running.

32 1

Default Chapter1
- Installation Instructions1
- Operating Instructions1
- Service Instructions1
- Table of Contents3
1 General Notes5
- Necessary Program Setting5
2 Adjusting the Locking Positions6
- General Notes6
- Hook and Spreader Eccentric7
- Rotary Thread Take-Up Disc8
- Throw Eccentric9
3 Needle Bar Positioning10
4 Aligning the Hook Support11
5 Aligning the Needle Bar Parallel to the Hook Support13
6 Transversal Motion of the Fabric Support Plate15
7 Longitudinal Motion of the Fabric Support Plate17
8 Clamping Plates19
- Inserted Clamping Plates19
- Aligning the Clamping Plates as to the Fabric Support Plate20
- Adjusting the Spreading21
- Height of the Fabric Clamps23
- Adjusting the Locking Sheet24
- Arrest of the Clamping Plates25
- Adjusting the Fabric Clamping Pressure26
9 Adjusting the Seam Width27
- Presetting the Seam Width27
- Needle Zero Position30
10 Cutting Knife (Eyelet Knife)31
- Position of the Cutting Knife31
- Adjusting the Knife Parallel to the Cutting Block33
- Cutting Block Adjustment34
- Cutting Pressure35
- Cutting Duration35
11 Hook Height36
12 Adjusting the Looping Stroke37
13 Needle Bar Height39
14 Distance between Hook and Needle40
15 Needle Guard41
16 Spreader42
17 Spreader Plate43
18 Throat Plate44
19 Adjusting the Needle Thread Knife45
20 Adjusting the Fabric Clamps47
21 Thread Controller Spring48
22 Maintenance49
23 Annex50
- Adjusting Operations Without Head Cover50
- Fuses in the Control Box51
- Exchange of the Control51
24 Service Menu (Technician Level)52
- Activating the Service Menu52
- Selection of a Menu Item/Submenu Item52
- Multitest52
- Quitting the Service Menu52
- List of Menu and Submenu Items53
- Menu Items 500 (Configuration Automatic Buttonholer)54
- Menu Items 550 (Configuration Operation)55
- Menu Items 600 (Multitest)56
25 Error Messages61
26 Troubleshooting66
