DURKOPP ADLER 559 - 10.3 Cutting block adjustment

10.3 Cutting block adjustment
Caution: Danger of injury !
Switchthemainswitchoff.
Adjust the cutting block only with the machine switched off.
The cutting length can be altered by c hanging the c utting block.
The cutting length is determined by the cutting block length.

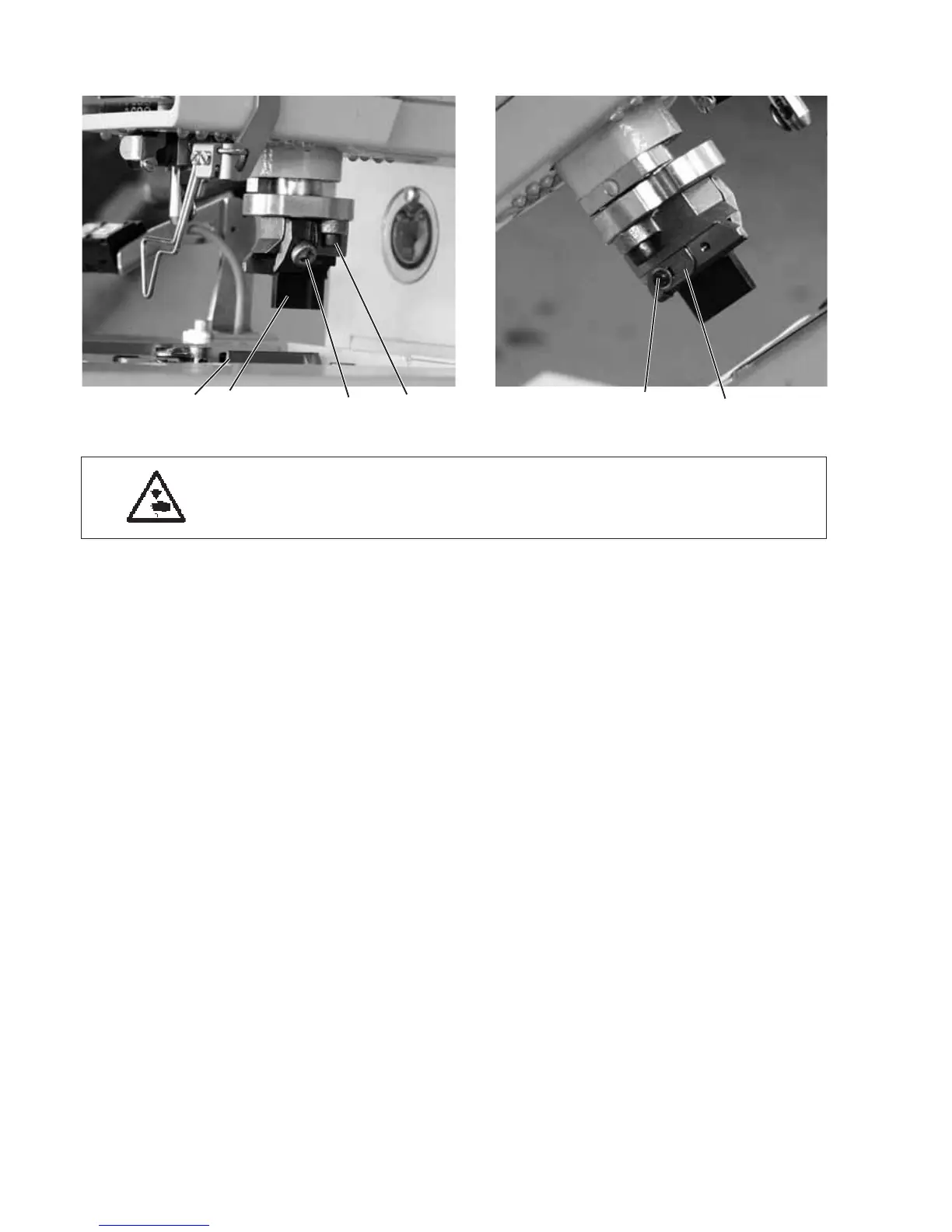

Standard checking
The cutting block 3 must be in parallel position to the cutting knife 4.
The cutting block stop 5 has to be adjusted so that the k nife mark on
the cutting block 3 reaches the indicated cutting length.
Correction
–
Loosen screws 1.
–
Adjust the cutting block 2 laterally to the cutting knife 4.
–
Tighten screws 1.
–
Loosen screw 2.
–
Adjust the cutting block 3 in longitudinal direction to the cutting
knife 4.
–
Tighten screw 2.
–
Loosen screw 6.
–
Position the stop 5 c lose to the cutting block.
–
Tighten screw 6.
32
43 2 1 65
