7. Longitudinal motion of the fabric support plate
Caution: Danger of injury!
Exercise utmost caution when making adjustments with the machine
running.
Note
Please observe the necessary program setting as described in
chapter 1.1.
Standard checking

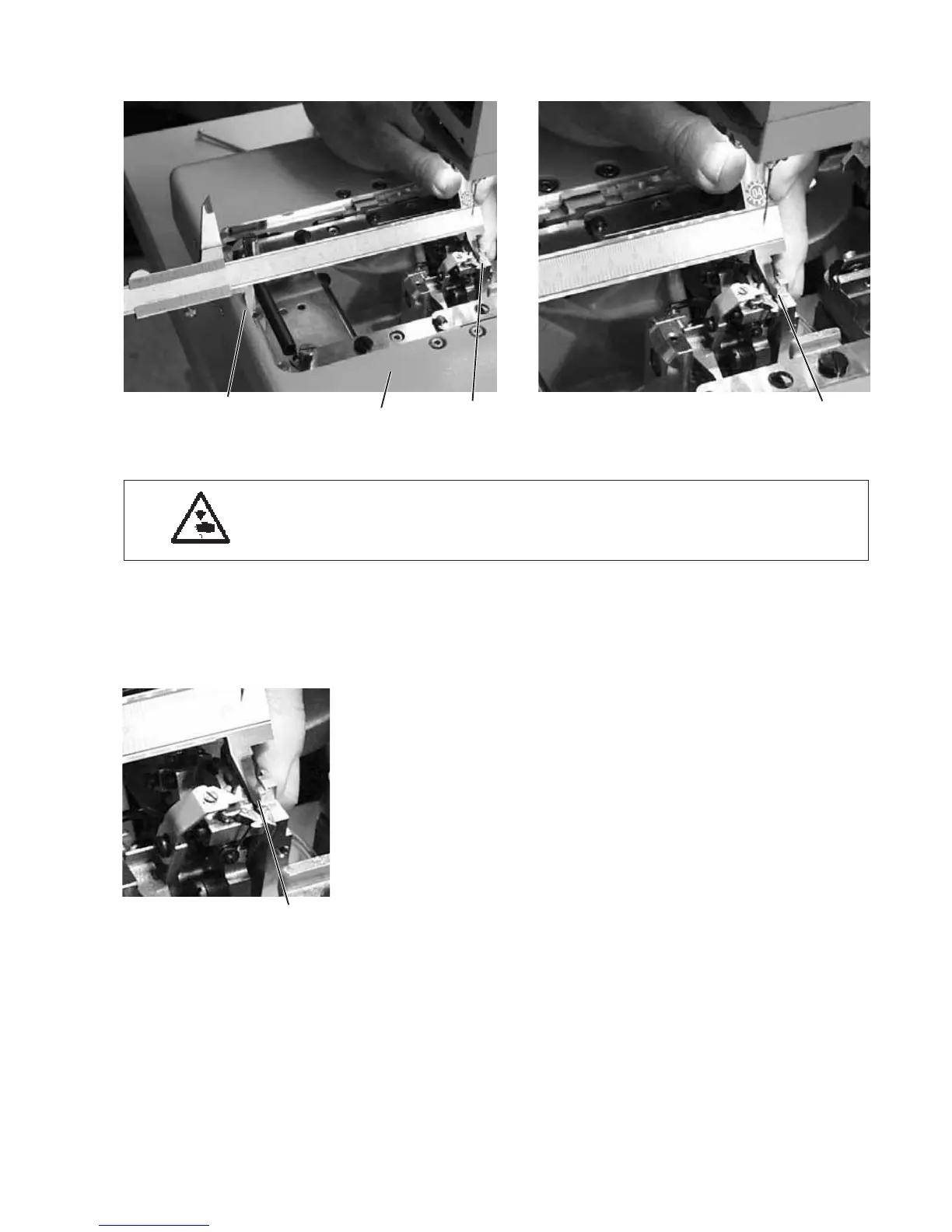

When the machine is in reference position, the distance between the
edge 3 of the fabric support plate 2 and the front edge 1 of the throat
plate support should amount to approx. 113 mm.
The distance between reference switch and switch sheet must not
exceed 0.5 mm.
–
Switch the machine on.
–
Press the keys “P” and “ß” on the control panel simultaneously.
–
Enter code “2548”.
–
Press key ”OK”.
The control switches to the technician level.
–
Select the menu “608” with the key “+”.
–
Switch on the menu with key ”OK”.
The machine runs to its initial position.
–
Switch the machine off.
–
Check the distance between the edge 3 of the fabric support plate
and the front edge 1 of the throat plate support.
15
321 1
1
