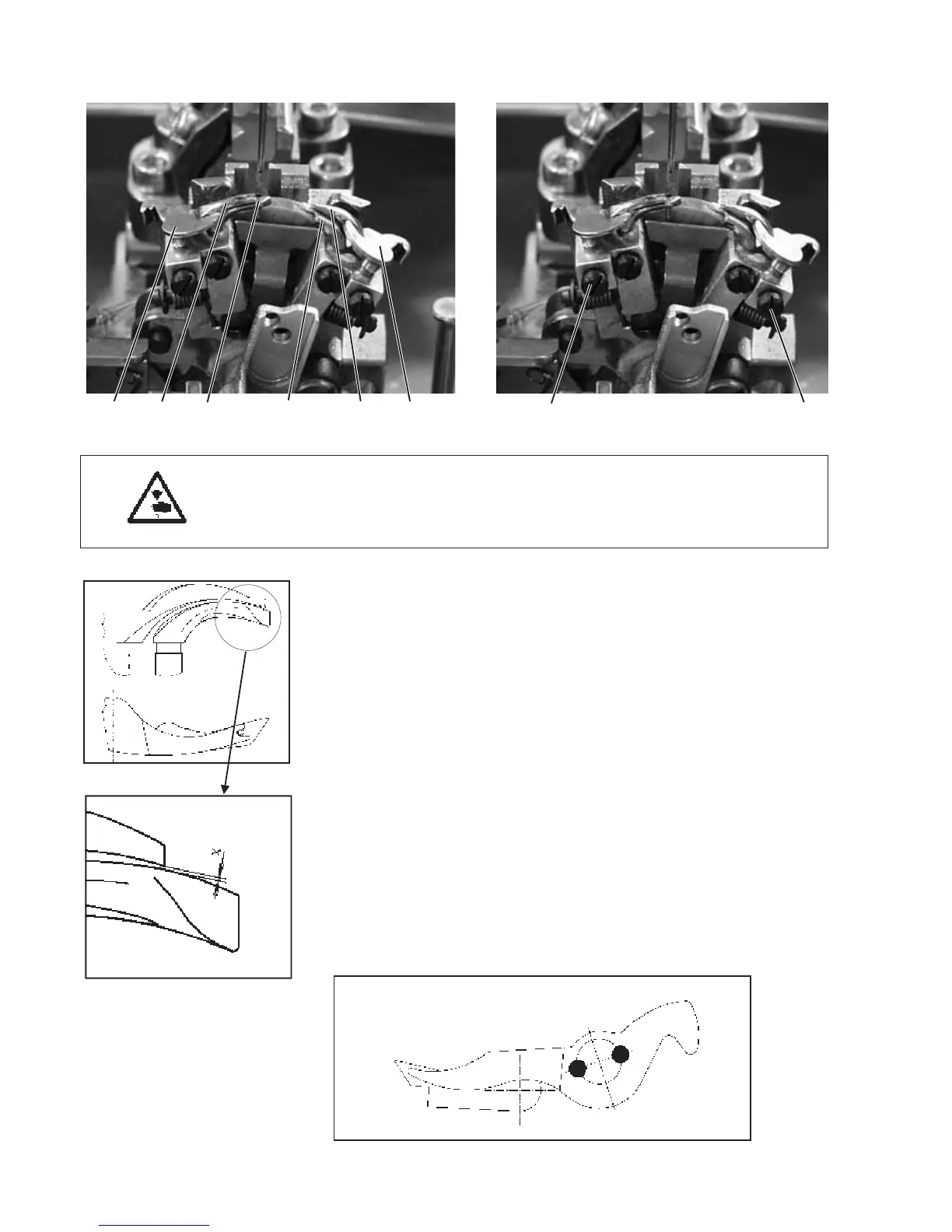

16. Spreader
Caution: Danger of injury !
Switchthemainswitchoff.
Adjust the spreader only with the machine switched off.
Standard checking
The distance between the fork spreader 5 and the left hook 4 must
correspond to the thickness of the hook thread used (see illustration X
opposite).
The right spreader 2 should move as closely as possible on the top
side of the right hook 3, but without touching it.
The spreaders being under spring pressure are held in their end
position by the stops 1 and 6.
The fork of the left spreader 5 should be exactly above the thread hole
of the left hook 4 (see illustration opposite) and the point of the right
spreader 2 centrally above the tip of the right hook 3 (see illustration at
the bottom of the page).
Correction
–
For adjusting the distance between spreader and hook slightly
align the spreaders.
–
For setting the final positions of the spreaders loosen the screws 7
or 8 at the hook to be adjusted.
–
Turn spreader stop 1 or 6 slightly.
–
Tighten screw 7 or 8.
40
654 3 21 87
