6. Transversal motion of the fabric support plate
Caution: Danger of injury!
Exercise utmost caution when making adjustments with the machine
running.
Note
Please observe the necessary program setting as described in
chapter 1.1.
Standard checking
The hook support 3 must be in the c entre of the fabric support plate 4.
When the automatic buttonholer is in reference position, the
dimensions X1 and X2 must be equal when the fabric support plate is
adjusted correctly.

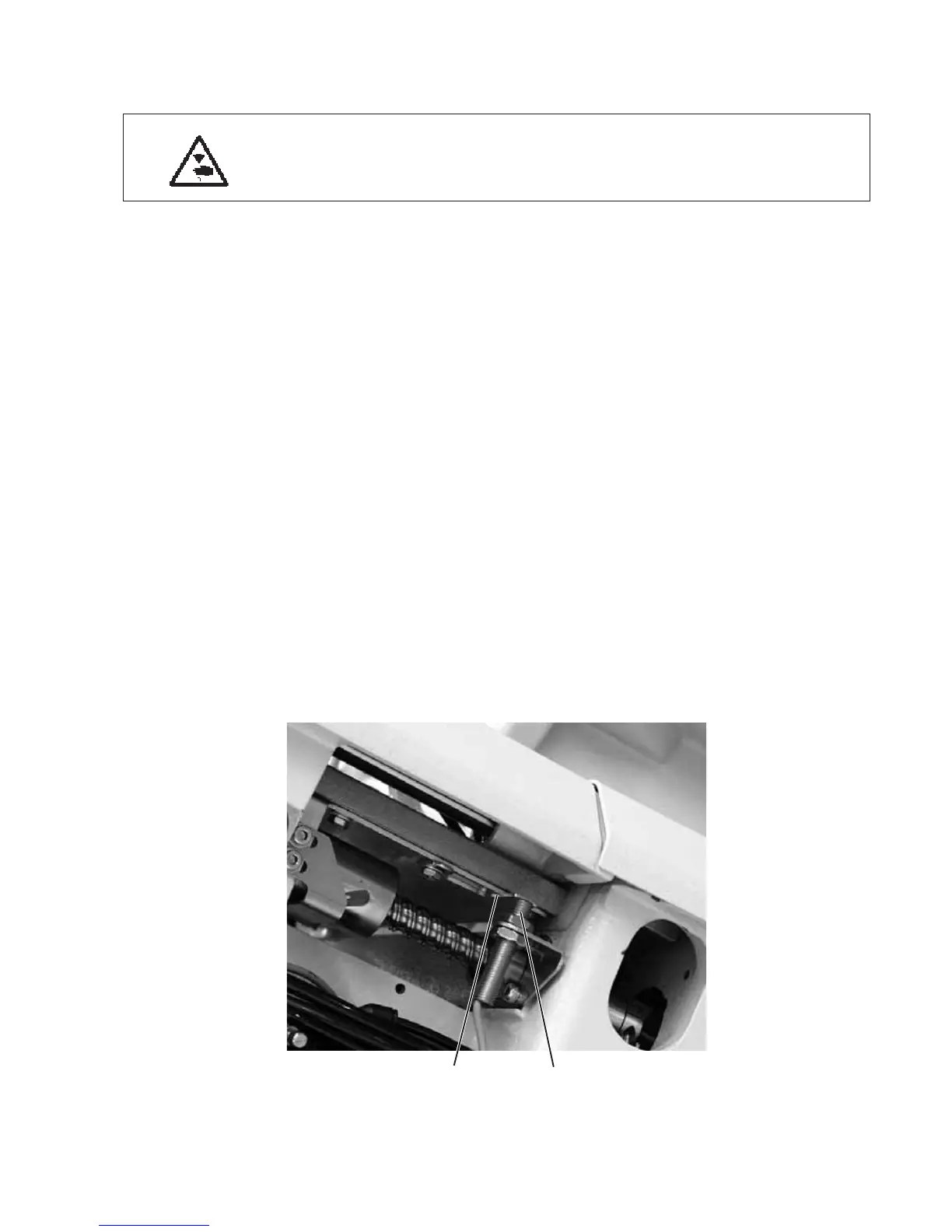

The distance between reference switch 5 and switch sheet 6 must not
exceed 0.5 mm.
–
Switch the machine on.
–
Press the keys “P” and “ß” on the control panel simultaneously.
–
Enter code “2548”.
–
Press key ”OK”.
The control switches to the technician level.
–
Select the menu “608” with the key “+”.
–
Switch the menu on with key ”OK”.
The machine runs to its initial position.
–
Switch the machine off.
–
Check the dimension X1 with the slide gauge 2 (right edge of the
throat plate groove to the left edge of the fabric support plate).
–
Check the dimension X2 (left edge of the throat plate groove to the
right edge of the fabric support plate).
