8. Clamping plates
8.1 Inserted clamping plates
Caution: Danger of injury!
Switchthemainswitchoff.
Adjust the clamping plates only with the machine switched off.
Standard checking

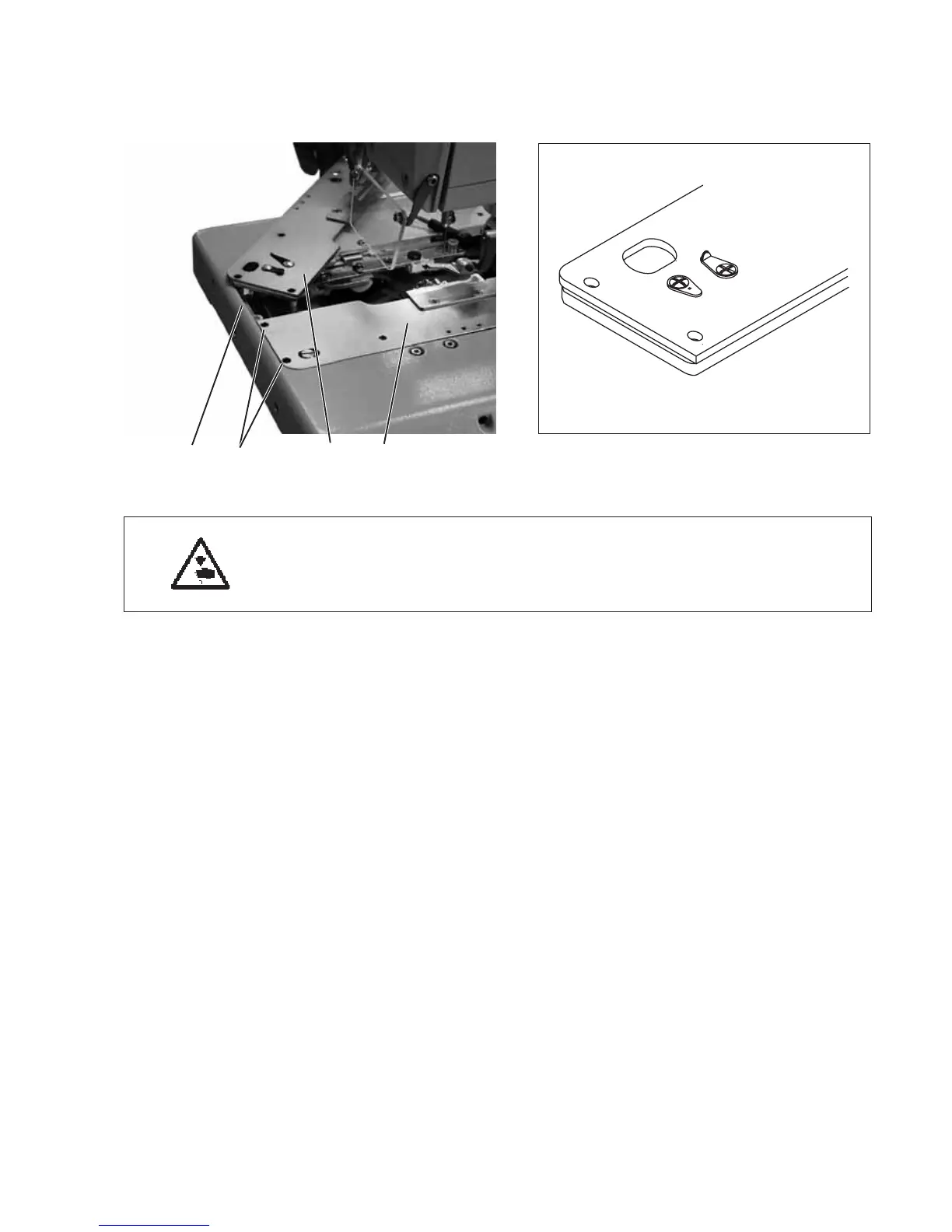

The inserted clamping plates 1 and 2 should be in the holding
groove 4 of the fabric support plate in parallel position and without
clearance.
Inserting and removing must, however, be fingertip easy.
–
Insert both clamping plates and check whether there is as little
clearance as possible.
–
Remove the clamping plates and check whether this is easily
possible.
Correction
–
Adjust the screws 3 correspondingly.
