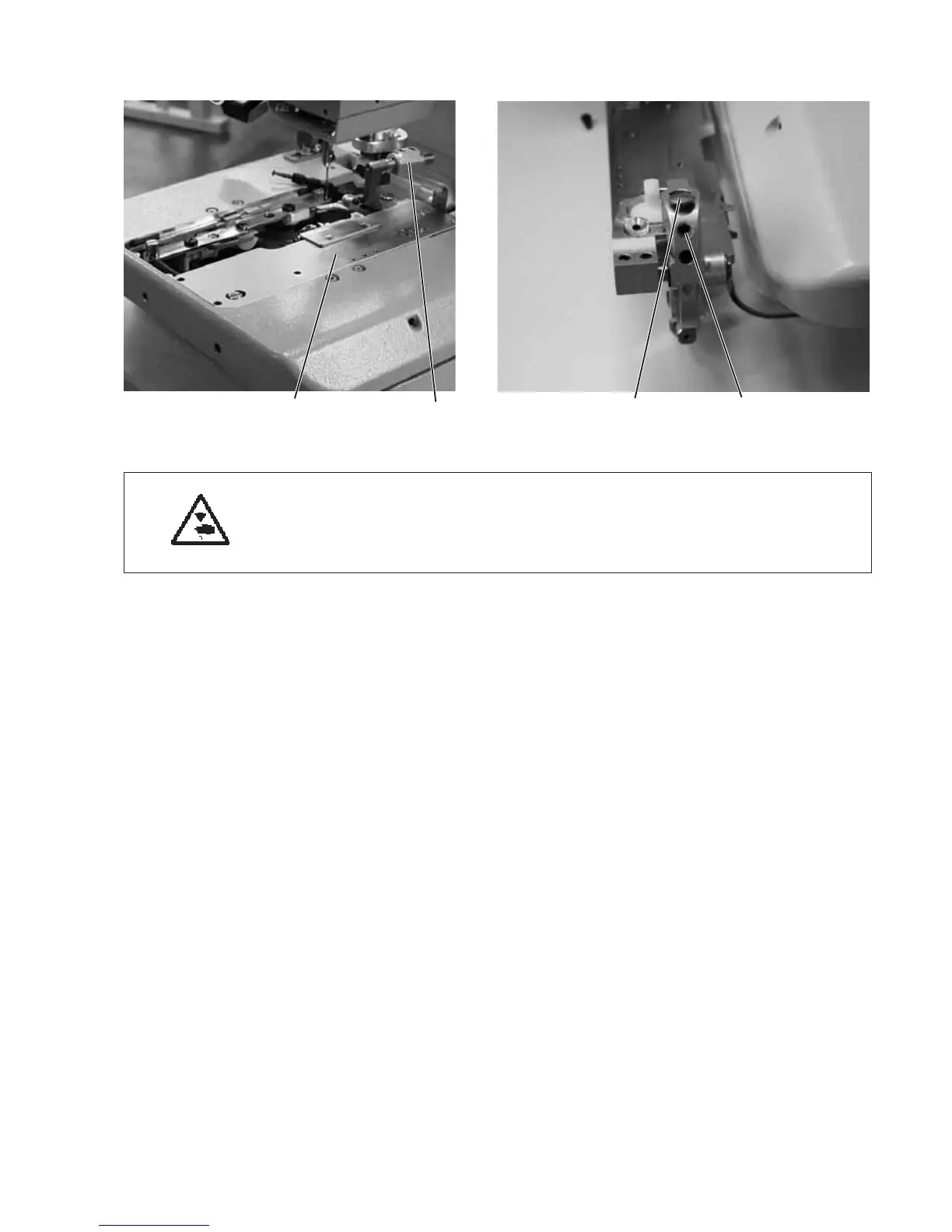

8.6 Arrest of the clamping plates
Caution: Danger of injury!
Exercise utmost caution when making adjustments with the machine
running.
Standard checking
There must be a minimum clearance in the height of the inserted
clamping plates 2 when:
·
no material is loaded
·
approx. 8 mm thick material is loaded and the clamps are closed.
–
Insert the clamping plates.
–
Switch the machine on.
–
Close the fabric clamps.
–
Check at the fabric clamp fixture 1 whether the clamping plate can
be minimally lifted.
–
Load 8 mm thick material.
–
Check at the fabric clamp fixture 1 whether the clamping plate can
be minimally lifted.
Correction
–
Switch the machine off.
–
Remove the clamping plates.
–
Loosen the core pin 3.
–
Adjust the stop 4.
–
Tighten screws 3.
