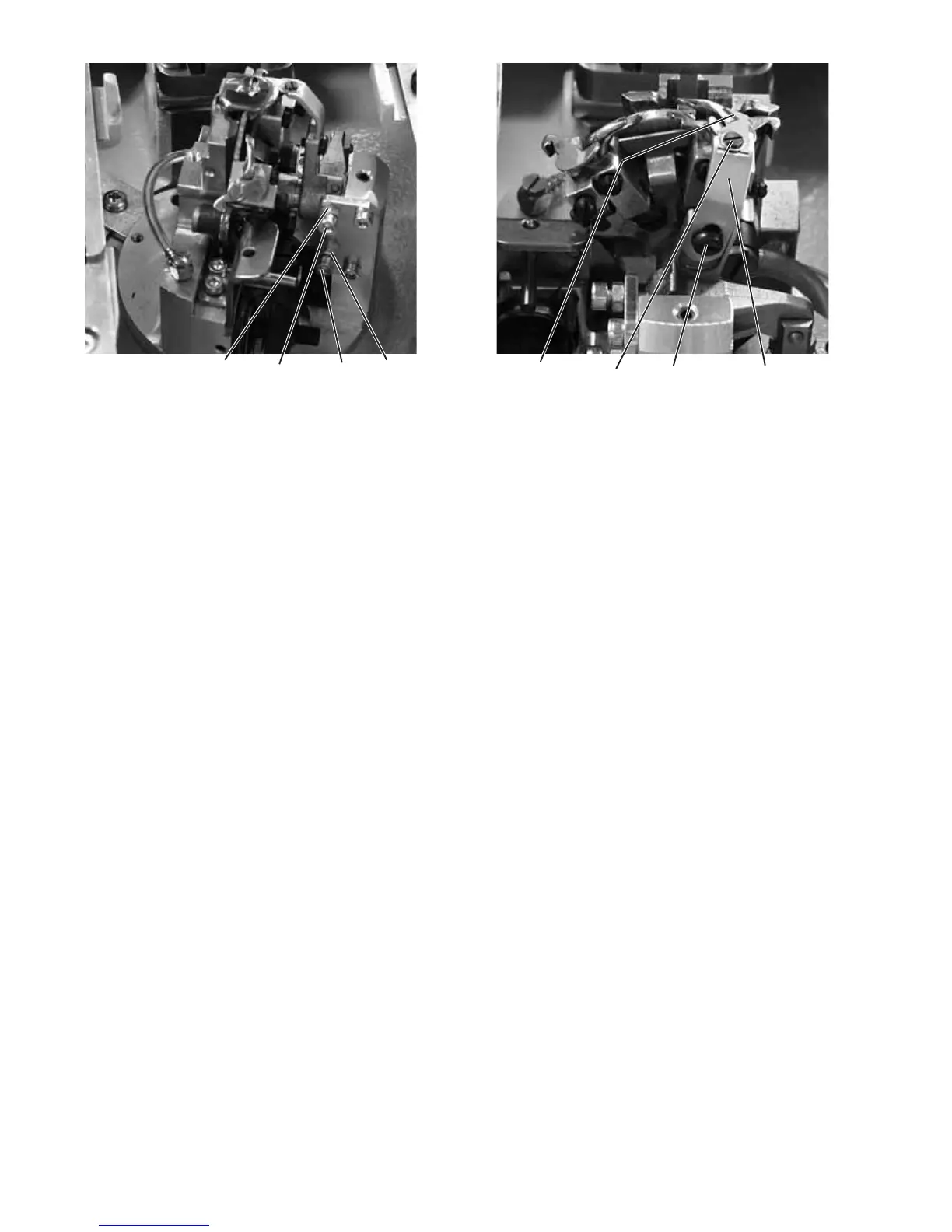

Correction of the knife motion
–
Loosen the counter-nuts 5 and 8.
–
Adjustthestopscrews6and7accordingtotherule.
–
Tighten the counter-nuts 5 and 8.
Adjusting the height of the k nife
–
Loosen screw 10.
–
Adjust the height of the knife holder 9 correspondingly.
Swing the knife holder 9 manually to check the free movement.
–
Tighten screw 10 again.
Adjusting the distance to the needle
–
Loosen screw 11.
–
Shift knife 12.
–
Tighten screw 11.
