Screw on and tighten the adjustment discs on the axle of the
holder 2.
Hint:
The adjustment discs set the height of the thread-pulling knife 12
–
The rest of the clampings on the axle of the holder 2 will be
tightened later.

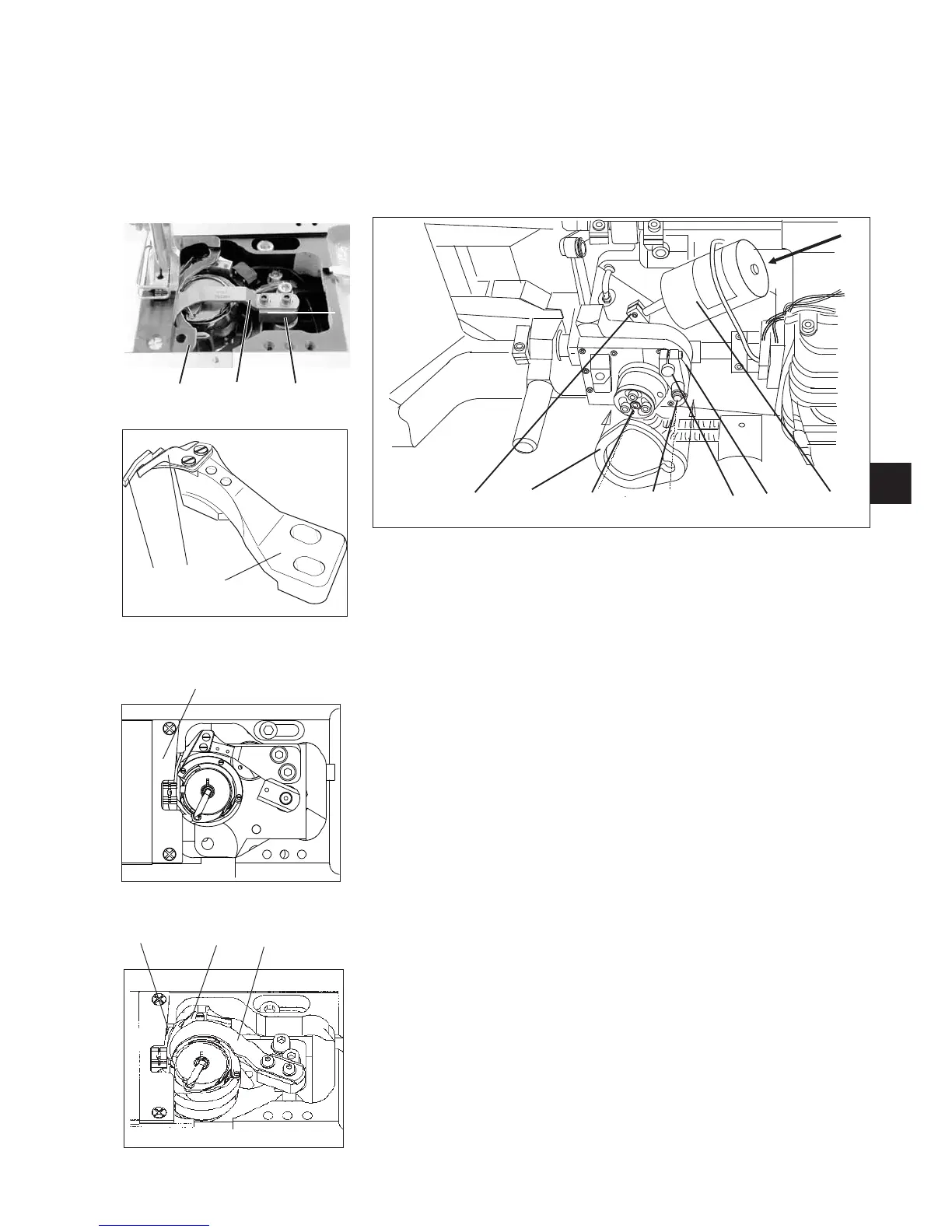

2. Positioning of the counter-knife 3, thread clamp 4 and support 1
–
Screw on the thread-pulling knife 12 with the rounded rear edge on
the holder 2.
–
Adjust the support 1 with the counter knife 3 and the clamping
plate 4 screwed on, in such a w ay that when moving the thread
pulling knife 12 a light cutting pressure is to be felt at the counter
knife 3.
–
Set the support 1 to the rear until it touches the cast iron and then
push it slightly to the left, in order to have a clearance of 0,5 mm
remaining between the clamping plate 4 and the rear part of the
thread pulling knife 12. If necessary, loosen the screws of the
clamping plate 4 and position it again.
Hint:
The thread-pulling knife 12 is in its rear position.
3. Screw off the thread-pulling knife 12 again.
–
Screw on the throat plate 22, check whether a c learance (for the
thread) exists between the middle section of the hook and the throat
plate 22.
–
Screw on the thread-pulling knife 12 again (it should be flush with
the rounded rear edge of the holder 2).
4. Align the trimmer disc 8 with the gauge 6.
For that purpose
–
Set the thread lever to its highest position
(the clamping screw 5 is still unfastened see 1st point).
–
Insert the gauge 6 to the roll 11 as represented in the picture.
–
Insert the thread trimmer disc 8 in the gauge 6 and fasten it.
–
Afterwards remove the gauge 6 !
Check whether all moving parts are running smoothly!
