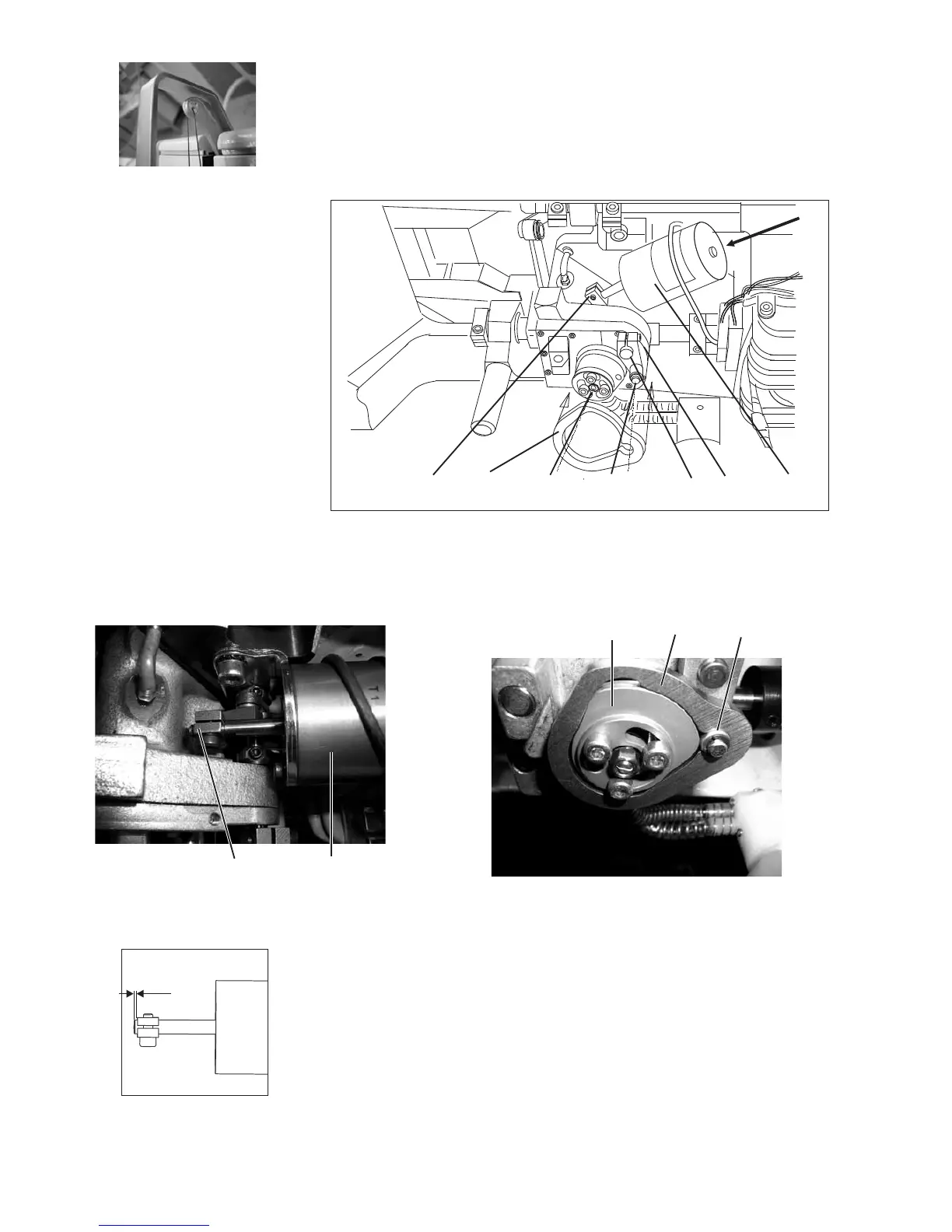

3. Aligning the cam disc 8 with the gauge 6 (part no. 0767 290050)
–
Move the thread lever in top position.
(see opposite illustration).
–
Put the gauge 6 over the loosened cam disc 8 on the roller 11.
–
Tighten the c am disc 8 and remove the gauge 6.
Check whether all movable parts are running smoothly.
4. Adjusting the piston rod of magnet 10
–
Loosen block 7 on the piston rod of magnet 10.
–
Screw the piston rod into the block 7 until a projection of 2 mm is
reached (see opposite illustration) and retighten.
66
76 811 9510
710
86 11
2mm
