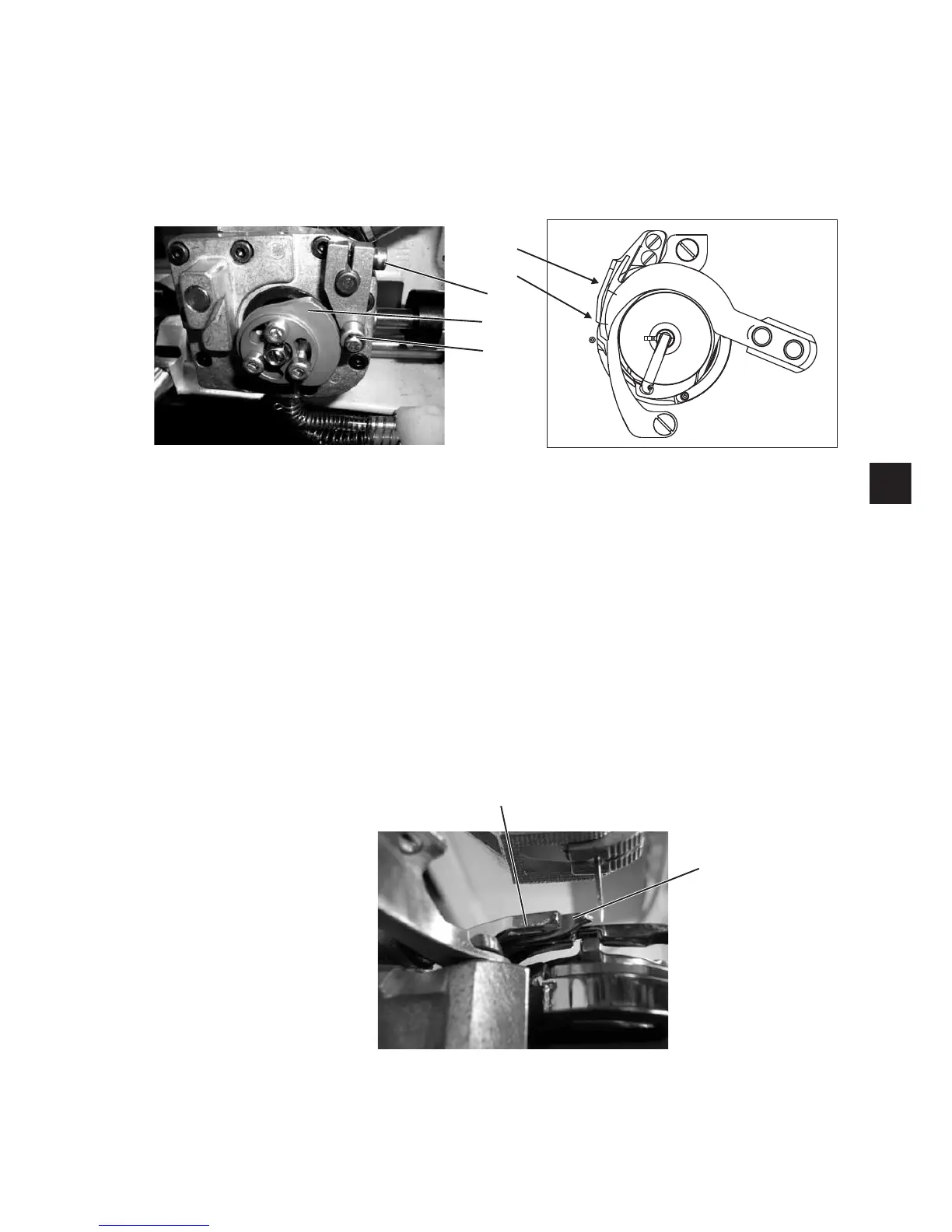

5. Positioning the thread pulling knife in cutting position
–
Make the roller 11 abut on the cam disc 8.
Tu rn the handwheel until the roller 11 abuts on the highest point of
the cam disc 8.
Note:
At the highest point the roller 11 has the furthest distance from the
rotation axis of the cam disc.
–
Swivel the thread pulling knife in cutting position on the laser
marking A (overlapping 0.5 mm).
–
Tighten the roller follower screw 5.
Adjusting the cutting pressure of the thread pulling knife without
gauge W
–
Set the laser marking B of the thread pulling knife on the
counter-knife edge and tighten with a slight pressure.
Attention:
The lower corner of the counter-knife 3 must not jut out over the thread
pulling knife 12.
67
GB
B
A
5
8
11
3
12
