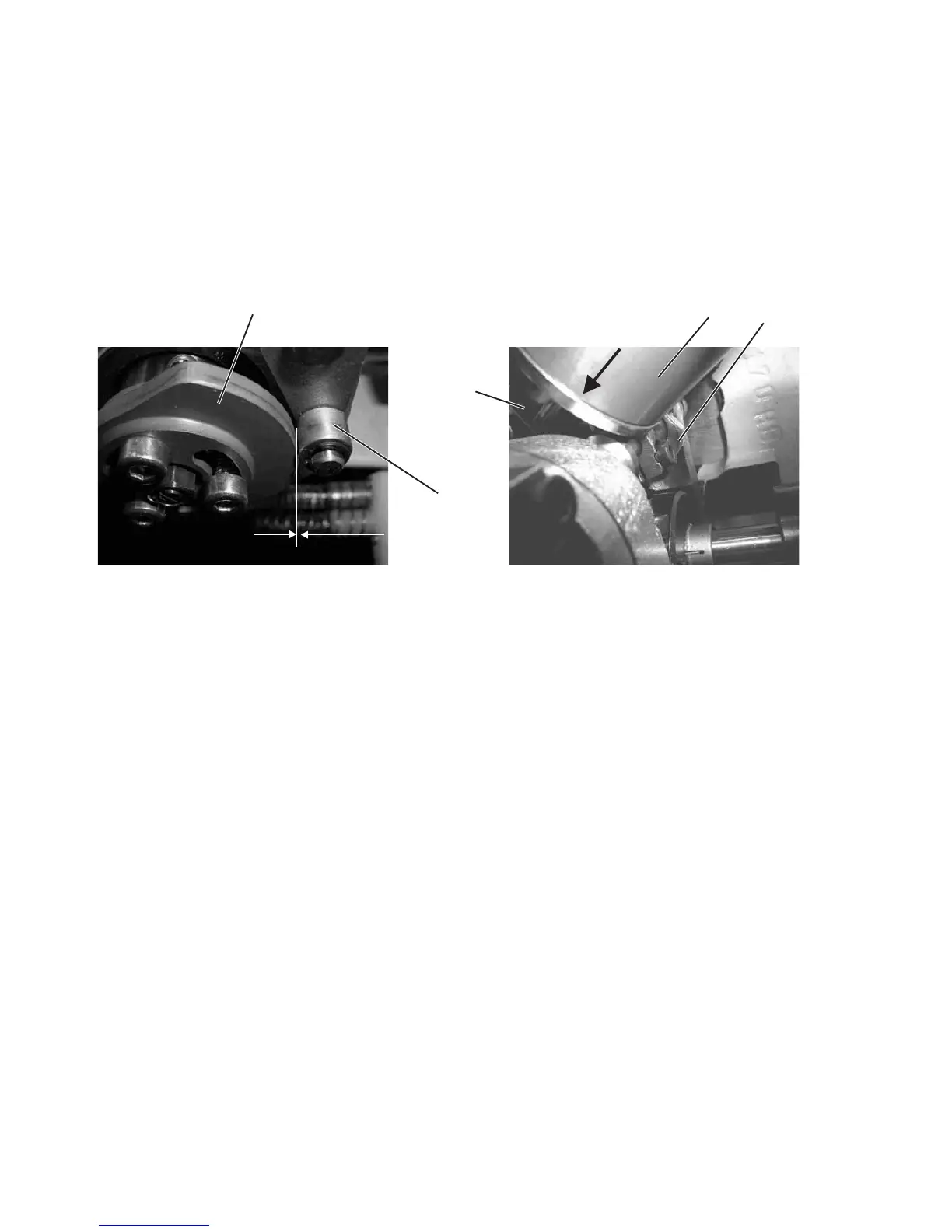

6. Adjusting the roller 11 as to the cam disc 8.
–
Tu rn the handwheel until the roller 11 abuts on the highest point of
the cam disc 8.
Note:
At the highest point the roller 11 has the furthest distance from the
rotation axis of the cam disc.
Standard:
Between the highest point of the cam disc 8 and the roller 11 there
might be a distance of max. 0.1 mm. The roller 11 must still be
rotatable.
–
Press the piston rod of magnet 10 in the direction of the arrow and
screw lever 1 tight.
Check whether everything is running smoothly.
Check:
Move the thread pulling knife 12 in its rear position ( cutting position) by
hand. No clearance must be felt.
Correction:
–
Loosen the screw at block 7.
Turn the piston rod
in clockwise direction = less clearance,
counter-clockwise = more clearance,
between roller 11 and cam disc 8.
68
7
11
10 1
8
max. 0,1 mm
