(4) Programmable Positioning Speed: Very Slow Speed is possible, which is very difficult with Air
Cylinder.
(5) Incremental Movement: Starting from the current position. Multiple incremental moves can be used
together to simulate a “Step & Direction” type of control.
(6) Programmable Acceleration and Deceleration: Same Acceleration and Deceleration can be
programmed. Optimum Acceleration and desired Deceleration can be set respectively.

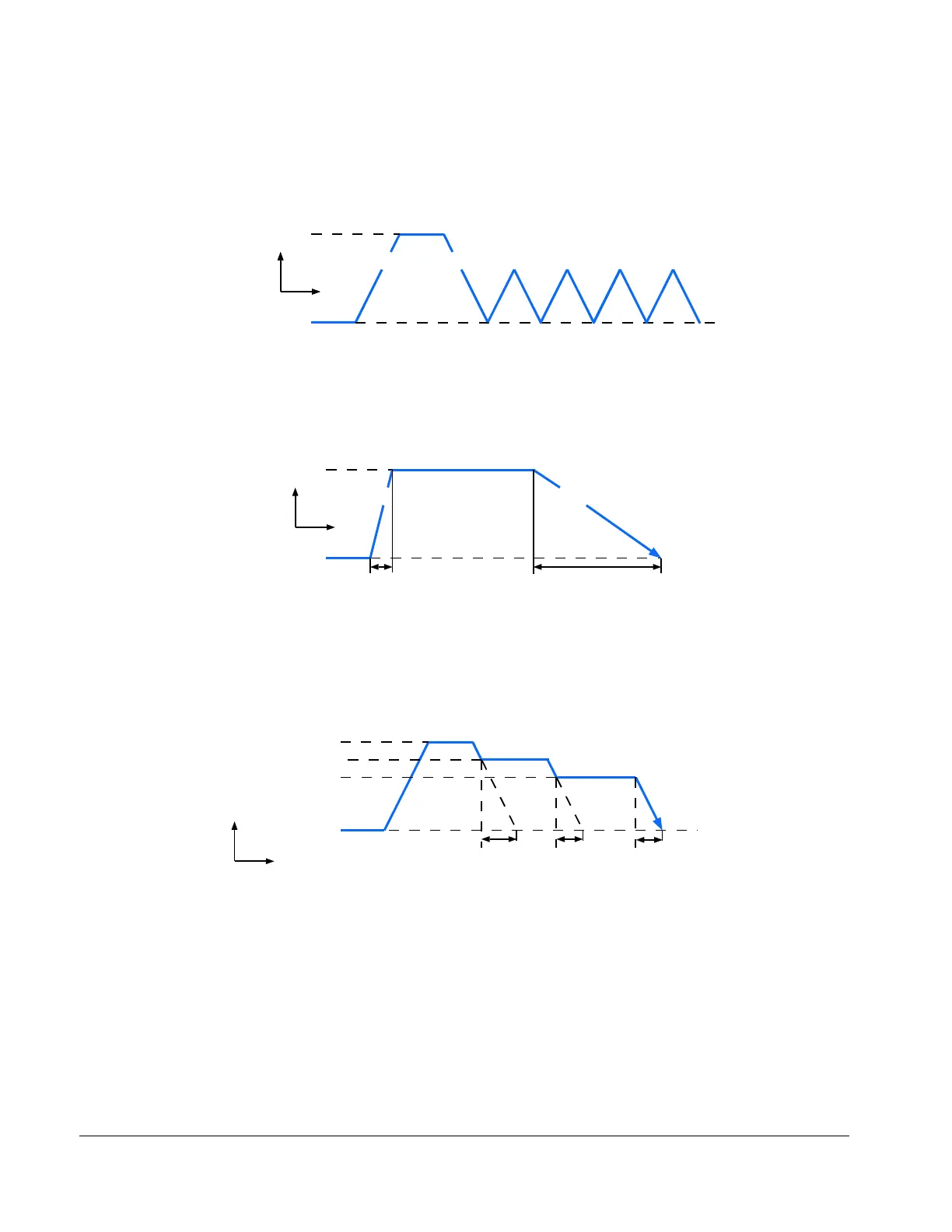

(7) Programmable Flexible Speed Profiles: Speed can be changed without stopping.
A
cceleration Deceleration
Programmed
Speed
Stop
condition
Speed
Time
Ultimate Acceleration
A
ccordin
g
to the load
Programmed
Deceleration
A
cceleration Deceleration
Programmed
Speed
Stop
condition
Speed
Time
200 mm/sec
150 mm/sec
100 mm/sec
Posi Signal
Width
Speed 200
(1)
Stop
condition
Posi Signal
Width
Speed 150
Posi Signal
Width
Speed 100
(2) (3)
Speed
Time
