(8) Emergency Stop: During the movement of Mechatronics Cylinder, the movement will stop if the
Interlock signal is interrupted.
(9) Programmable Zone Signal Output: Mechatronics Cylinders can be programmed to output a Zone
Signal.
(10) An air compressor is not needed so that systems using Mechatronics Cylinders will have high energy
efficiency.
(11) Oil waste is not generated so that oil collection equipment is not needed.
.
(12) Dampers (Shock absorbers) are not needed.

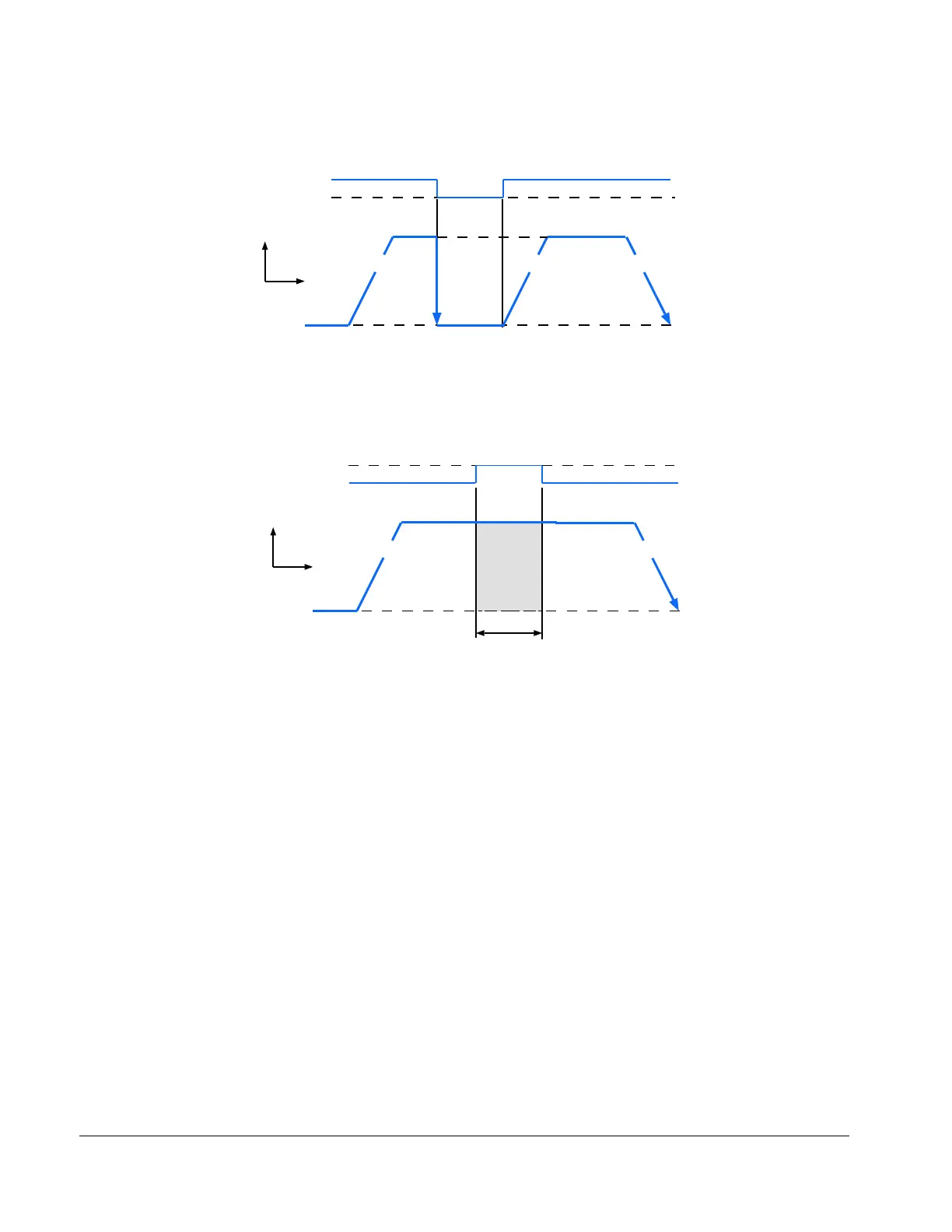

Emergency
Stop Signal
ON
OFF
ON
OFF
Zone Signal Output
Zone Signal Output Area
Stop
condition
Speed
Time
A
cceleration Deceleration
A
cceleration
Stop
condition
Speed
Time
A
cceleration Deceleration
