Maintenance Manual (960-946) 4-37
Replacement Procedures
2. Peel off the separators on the bound & detach tapes on the LCD cover.

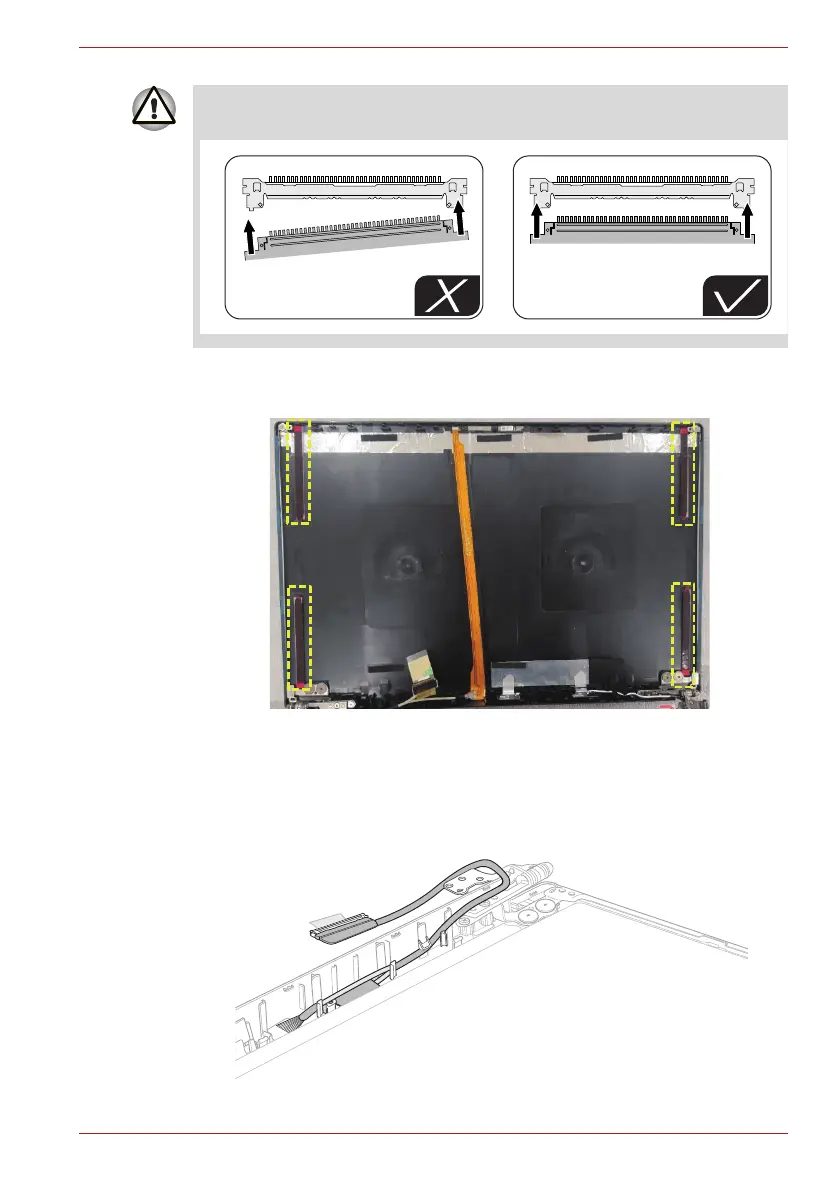

Figure 4-40 Installing the LCD unit (1)
3. Lift the separators a little away from the stick tapes on both left and right
edge side of the LCD cover.
4. Set the LCD unit in place.
5. Arrange the LCD/Webcam harness under the guides of the LCD cover.
Figure 4-41 Installing the LCD unit (2)
When connect the LCD harness, make sure to connect the right and left
side at the same time as shown in the figure below.
