dynabook TECRA A50-J Series - Figure 4-42 Installing the LCD Unit (3)

Maintenance Manual (960-946) 4-38
Replacement Procedures
6. Remove the separators on the top and bottom side of the LCD mask.
7. Align the LCD mask to the bottom side of the LCD cover first and
engage the latches.

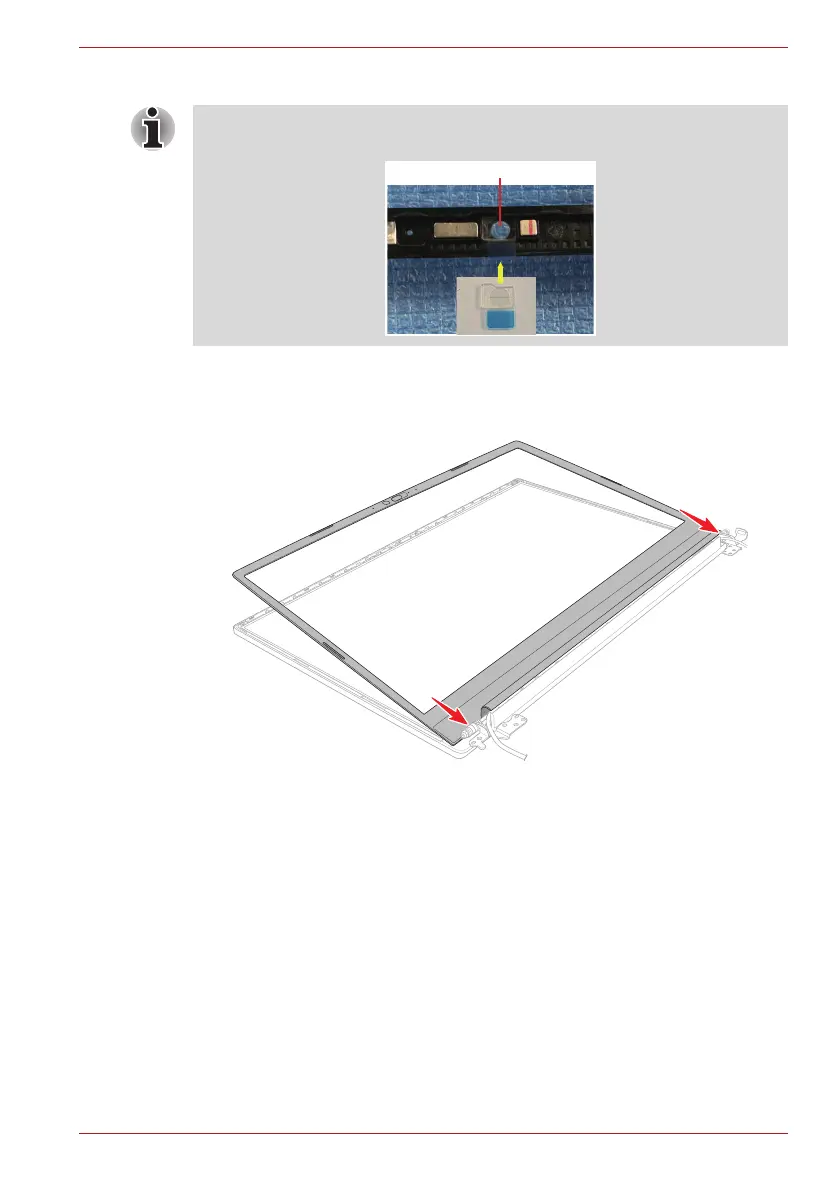

Figure 4-42 Installing the LCD unit (3)
8. Set the LCD mask on the LCD cover while engaging all the latches.
When replacing the LCD mask with a new one, Stick the CAMERA PANEL
on the LCD mask in place and remove the separator on it.
CAMERA PANEL
