dynabook TECRA A50-J Series User Manual

Maintenance Manual (960-946) 4-20
Replacement Procedures
Figure 4-19 Installing the 3G module
4.18 Fans
4.18.1 Removing the Fans
To remove the Fans, follow the steps below and refer to Figure 4-20.
1. Disconnect the Fan harness from the connector CN3380 and CN3390
on the System Board (FMERSY*).
2. Remove the following screws and the Fans from the Cover Assembly.

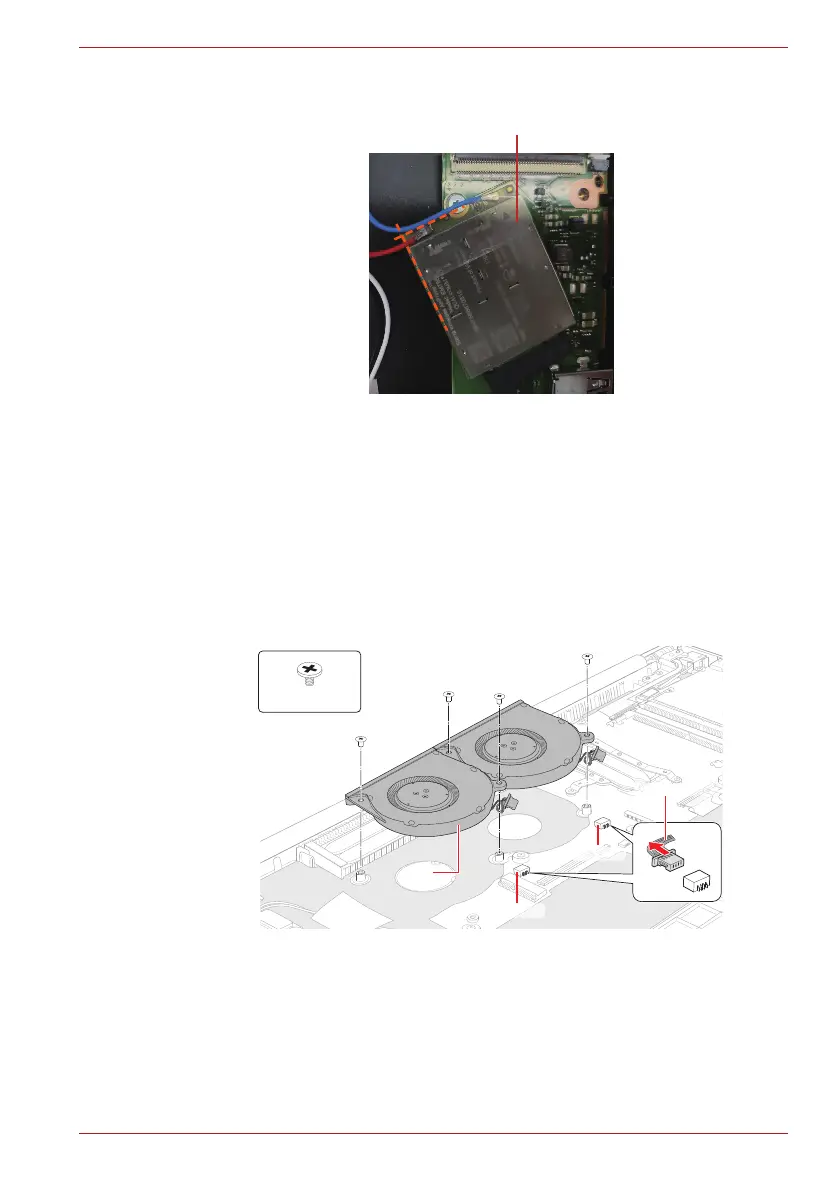

Figure 4-20 Removing the Fans
4.18.2 Installing the Fans
To install the Fans, follow the steps below and refer to Figure 4-20.
1. Set the Fans in place on the Cover Assembly and secure them with the
screws.
2. Connect the Fan harness to the connector CN3380 and CN3390 on
the System Board (FMERSY*).
INSU SQUARE
Fan
S2 x 4CT
an
F
F
h
Fan Harness
N
0
C
N
CN3390
N
8
8
8
8
8
8
CN338
CN3380
