Maintenance Manual (960-946) 4-23
Replacement Procedures

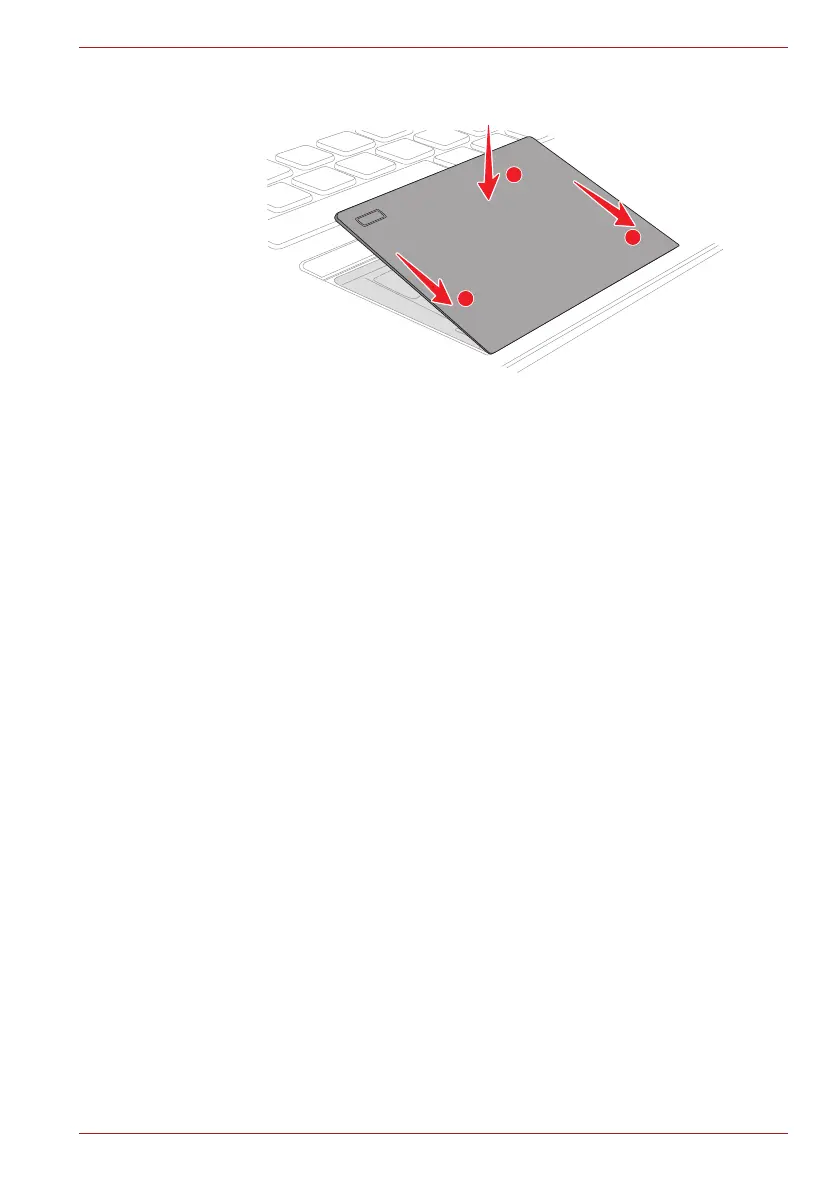

Figure 4-24 Installing the Click pad
3. Stick the gasket tape to the Click pad and stick the square cushion.
4. Connect the Click Pad FFC and Fingerprint FFC to the connector on
the Click Pad and the connector CN9510 and CN9550 on the System
Board.
4.21 Speaker
4.21.1 Removing the Speaker
To remove the Speaker, follow the steps below and refer to Figure 4-25 to
Figure 4-26.
1. Remove the stick tape.
2. Disconnect the Speaker harness from the connector CN6290 on the
system board.
3. Release the Speaker harness from the guides.
1
1
2
