dynabook TECRA A50-J Series User Manual

Maintenance Manual (960-946) 4-16
Replacement Procedures
4.15 Smart Card slot
4.15.1 Removing the Smart Card slot
To remove the Smart Card slot unit, follow the steps below and refer to
Figure 4-13 to Figure 4-16.
1. Disconnect the FPC/FFC from the connector CN9600 on the SYSTEM
board and CN9640 on the USB board.

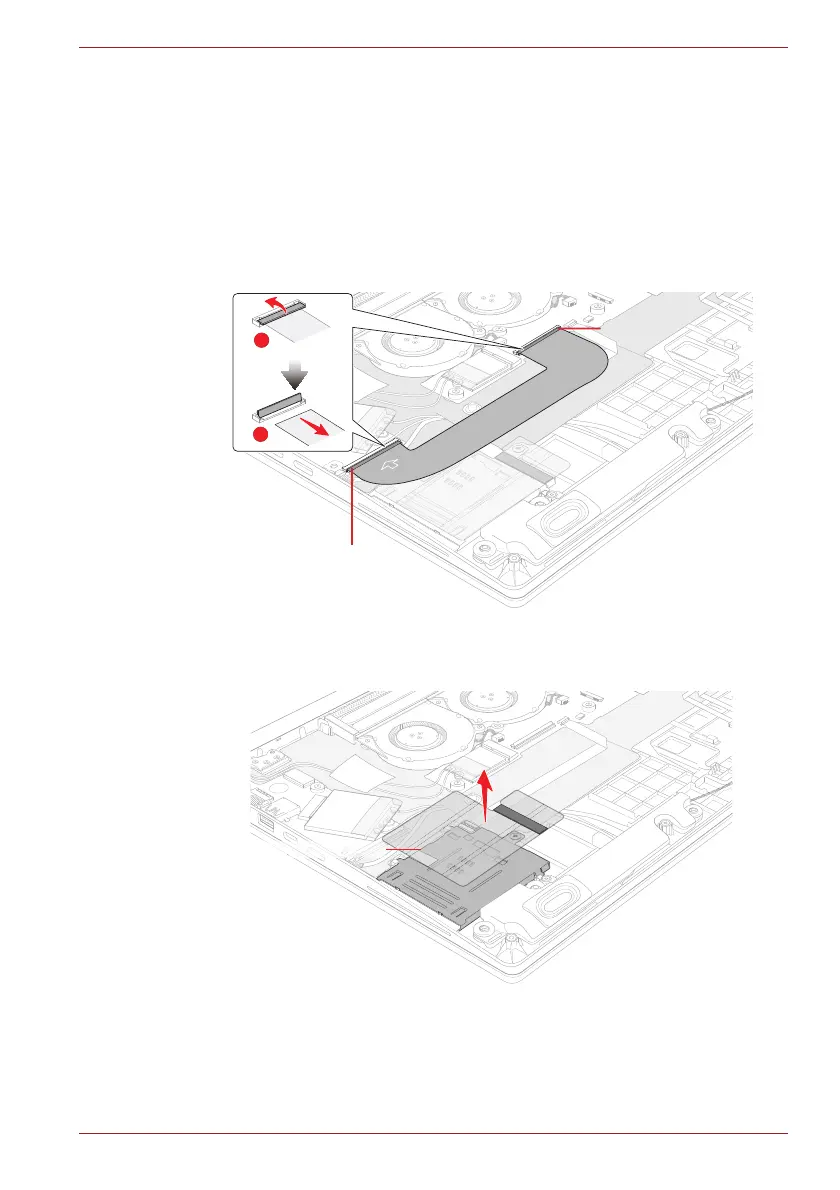

Figure 4-13 Removing the Smart Card slot (1)
2. Peel off the INSU CUSHION SC from the Smart Card slot.
Figure 4-14 Removing the Smart Card slot (2)
3. Disconnect the Smart Card FFC from the connector CN2170 on the
system board.
4. Remove the following screw and peel off the AL TAPE. Then slide and
lift the Smart Card slot unit shown in the following figure to remove the
Smart Card slot.
SUBSU
B
1
2
CN9600
CN9640
O
C
C
C
C
C
C
INSU CUSHION SC
