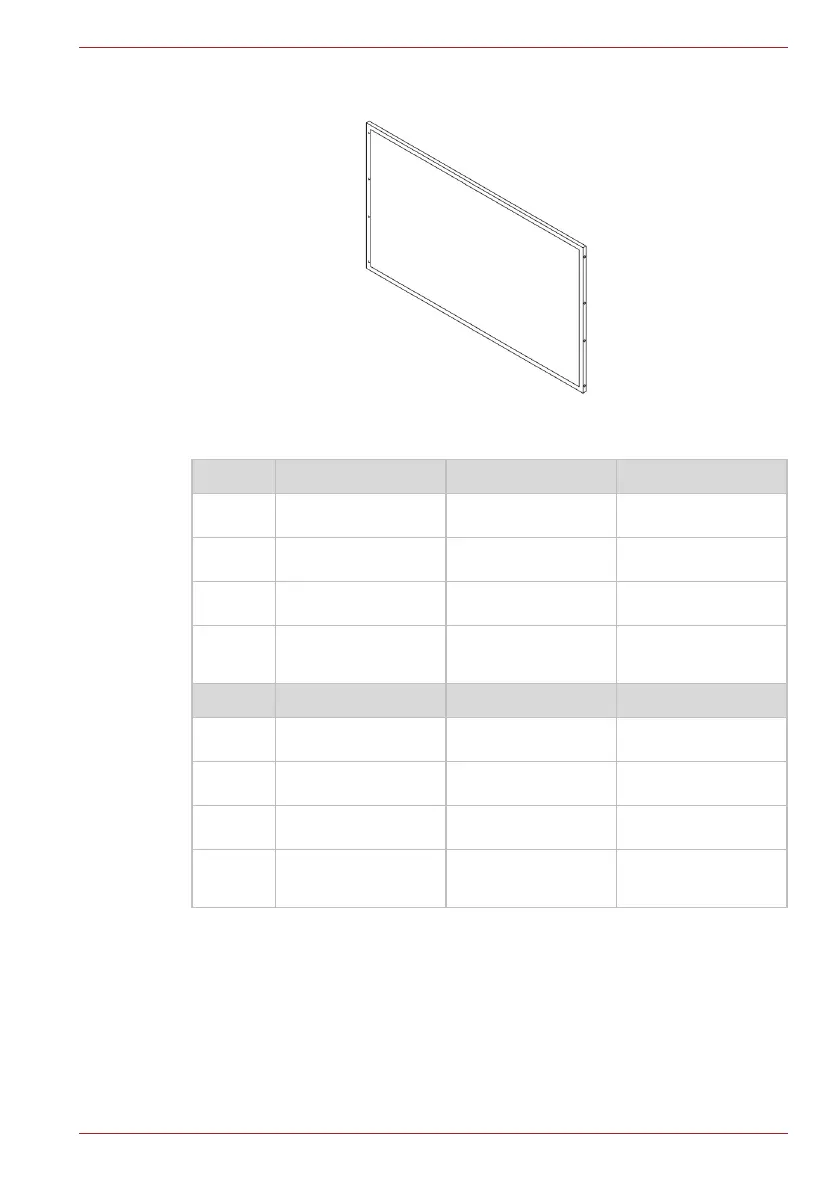

Figure 1-4 LCD module
Table 1-4 LCD module specifications
1.5 Power Supply
The power supply supplies different voltages to the system board and
performs the following functions:
1. Judges that the DC power supply (AC adaptor) is connected to the
computer.
2. Detects DC output and circuit malfunctions.
Item G33C000A6110 G33C000A7110 G33C000A4110
Number of
Dots
1366(W) × 768(H) 1366(W) × 768(H) 1920(W) × 1080(H)
Dot pitch
(mm)
0.252(H)×0.252(V) 0.252(H)×0.252(V) 0.17925(H)×0.17925(V)
Active area
(mm)
344.13(W) × 193.44(H) 344.23(W) × 193.54(H) 344.16(W) × 193.59(H)
Outline
(mm)
350.73±0.3(W) ×
205.29±0.3( H) ×
3.2max.(D)
350.98(W) × 216.745(H)
w/PCB × 3.2(D) max.
350.66±0.3(W) ×
205.25±0.3(H) ×
3.2max.(D)
Item G33C000AE110 G33C0009U110 G33C000AM110
Number of
Dots
1920(W) × 1080(H) 1920(W) × 1080(H) 1920(W) × 1080(H)
Dot pitch
(mm)
0.17925(H)×0.17925(V) 0.1793(H)×0.1793(V) 0.17925(H)×0.17925(V)
Active area
(mm)
344.16(W) × 193.59(H) 344.16(W) × 193.59(H) 344.16(W) × 193.59(H)
Outline
(mm)
350.66±0.3(W) ×
205.25±0.3(H) ×
3.2max.(D)
350.66±0.3(W) ×
216.25±0.5(H) × 3.2max.
w/PCB(D)
350.66±0.3(W) ×
205.14±0.3(H)(w/o PCB)
× 3.6max. (D)
