4.2 Space required
All dimensions indicated are net: it is necessary to add the required space for installation and
maintenance.
Opening Width / Maximum Width 12'
Opening Height / Maximum Height 12'
15 1/2”
9 1/4"
12"
Photo Eye
Mounting Hole
2 1/8"
20"
2 1/8"
2 9/16"
2 9/16"
8 1/2"
4'
5' 3"
10 1/4"
Motor Cover (optional)
Drum Cover (optional)
Side guide cover
9 1/8"
Banner window (standard)
Bottom Bag with wireless edge
15"
5' 3" Center

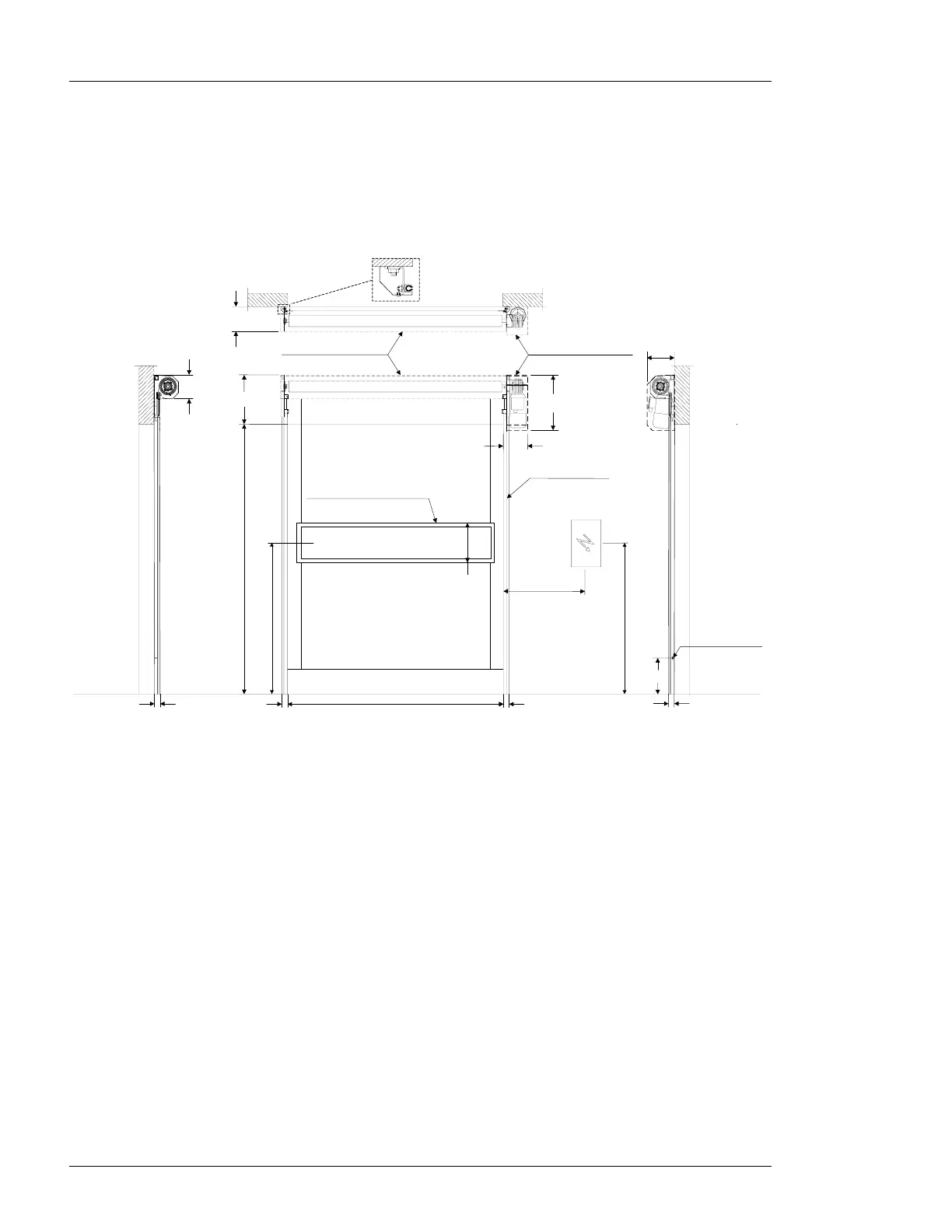

Figure 4-1: Space required.
