6.3.4 Set the MC/PB Timer
The MC/PB timer activates a countdown timer for use with an activation installed on terminal number
2 (most commonly used for pull cords or pushbuttons). The MC/PB timer may be turned on or off,
enabling manual operation or automatic operation by assigning a countdown value to the timer.
• Press and release MC/PB close timer button. MC Delay_Time=## displays on the LCD.
See Figure 6-19.
MC/PB
Timer
M-00097
06/13/05
JOG
UP/RESET
JOG
DOWN
CLOSE
OPEN
MC/PB
MENU
ENTER
CLOSE
TIMERS
AC/LOOP
PROGRAM
RUN
TIMERS
MESSAGE DISPLAY COUNTER
MESSAGE DISPLAY COUNTER
MC Delay
Time=##

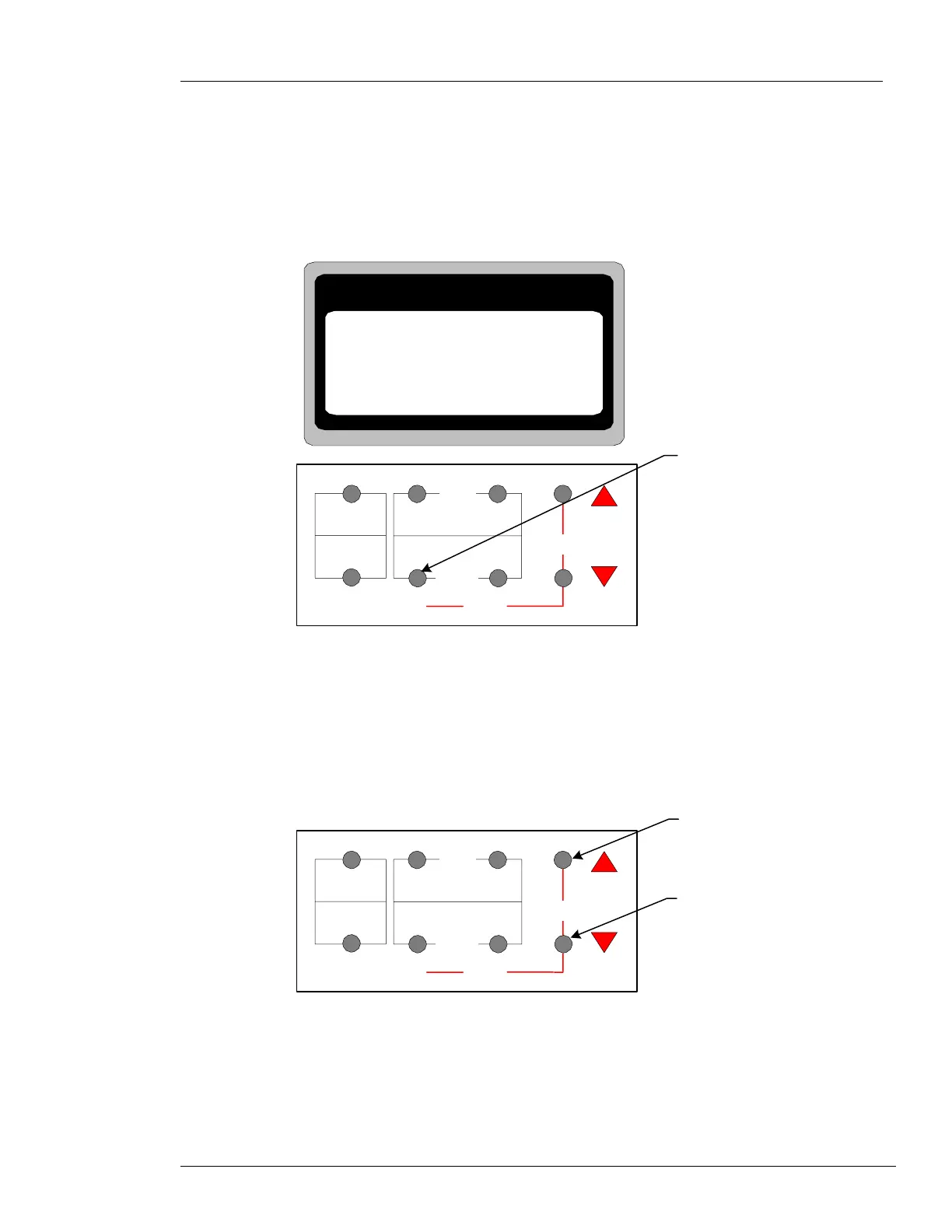

Figure 6-19: Adjust Countdown Time
Note: If the value is set to zero, the timer is deactivated and the activations put on terminal number 2
is now in manual operation.
Press and release the PROGRAM buttons to change the countdown time to the desired duration.
Increase
Setting
M-00096
06/09/05
JOG
UP/RESET
JOG
DOWN
CLOSE
OPEN
MC/PB
MENU
ENTER
CLOSE
TIMERS
AC/LOOP
PROGRAM
RUN
TIMERS
Decrease
Setting
Figure 6-20: Change Setting
• The DYNALOGIX II automatically saves the changes.
