12 CA 150 M150EN2
1

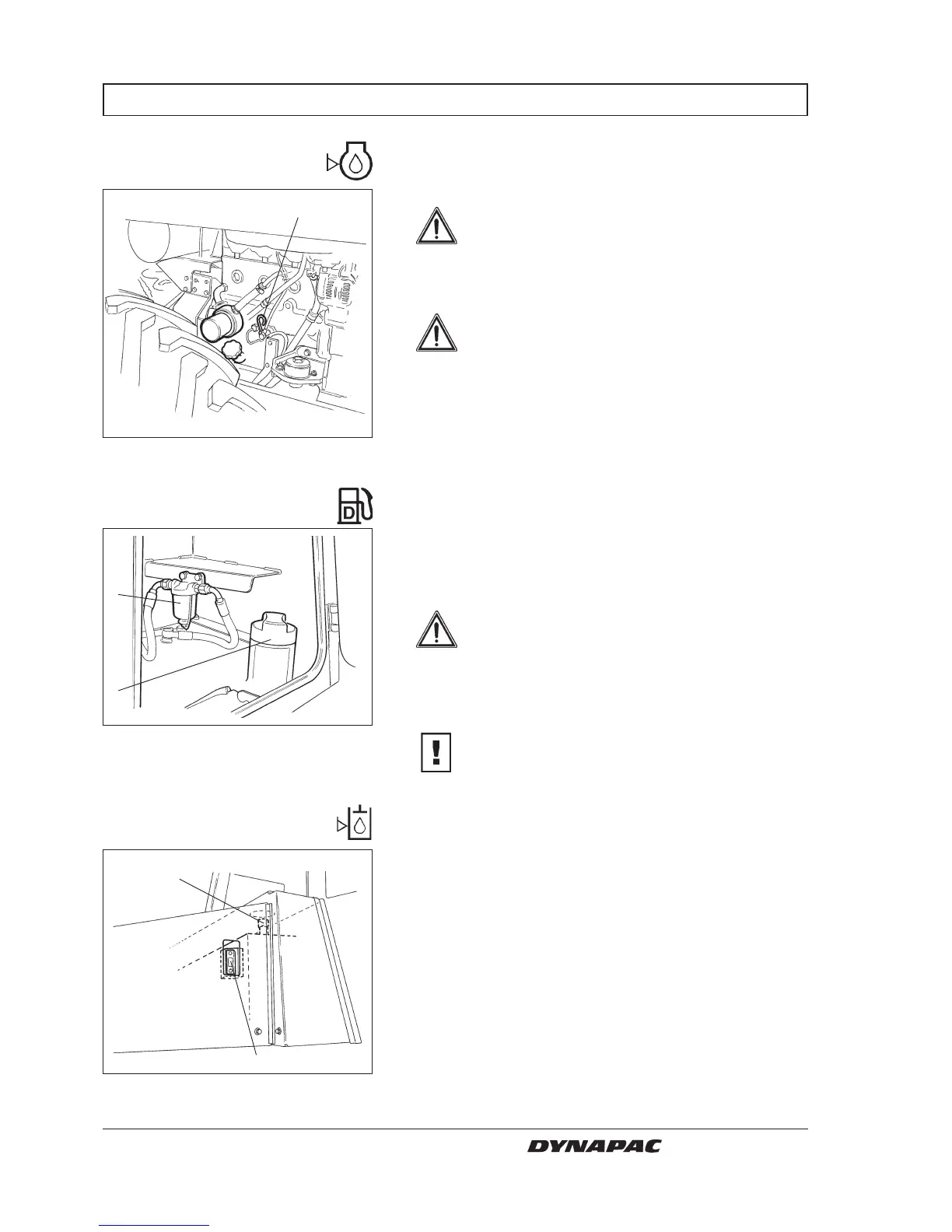

Fig. 8 Fuel tank
1. Filler pipe
2. Initial fuel filter
2
1
Fig. 9 Hydraulic fluid reservoir
1. Sight glass
2. Filler pipe
Position the roller on a level surface and check that the
sight glass reading (1) is between the max. – min.
marks. Top off with hydraulic fluid according to the
lubricant specification if the level is too low.
2
1
EVERY 10 OPERATING HOURS (Daily)
Park the machine on a level surface. The
engine should be switched off and the
parking brake engaged during all inspec-
tion and adjustment operations on the
machine, unless otherwise stated.
Watch out for contact with hot engine
parts and the hot radiator when the oil
dipstick is being removed. There is a risk
of burn injuries.
The dipstick is on the left-hand side of the engine.
Pull up the dipstick (1) and check that the oil level is
between the upper and lower marks. For further details,
refer to the engine manual.
WARNING
WARNING
Fig. 7 Engine compartment
1. Oil dipstick
Diesel engine
– Check oil level
Fuel tank – Filling
Refuel every day. Top off to the lower edge of the filler
pipe. Use diesel fuel in accordance with the engine
manufacturer’s specifications.
Stop the diesel engine. Short (press) the
filler gun against a non-insulated part of
the roller before refueling, and against the
filler pipe (1) while refueling is in progress.
The fuel tank holds 225 litres (59,4 gal).
Check that there is no sediment or water in the
fuel pre-filter (2).
Clean the pre-filter if required, see under "500
hours of operation".
WARNING
CAUTION
Hydraulic reservoir
– Check fluid level
