Introduction
1.2 Roller Description
CC 1250 are two self-propelled vibratory tandem rollers in the three metric tonnes class featuring
1200 mm wide drums. The machines are equipped with drive, brakes, and vibration on both drums.
To permit optimum performance on a wide range of applications and site requirements, the roller is
equipped with:
Diesel engine
Electrical system
Propulsion system/transmission
Brake system
Secondary/parking brake
Steering system
FOPS and ROPS
Identification of Major Components

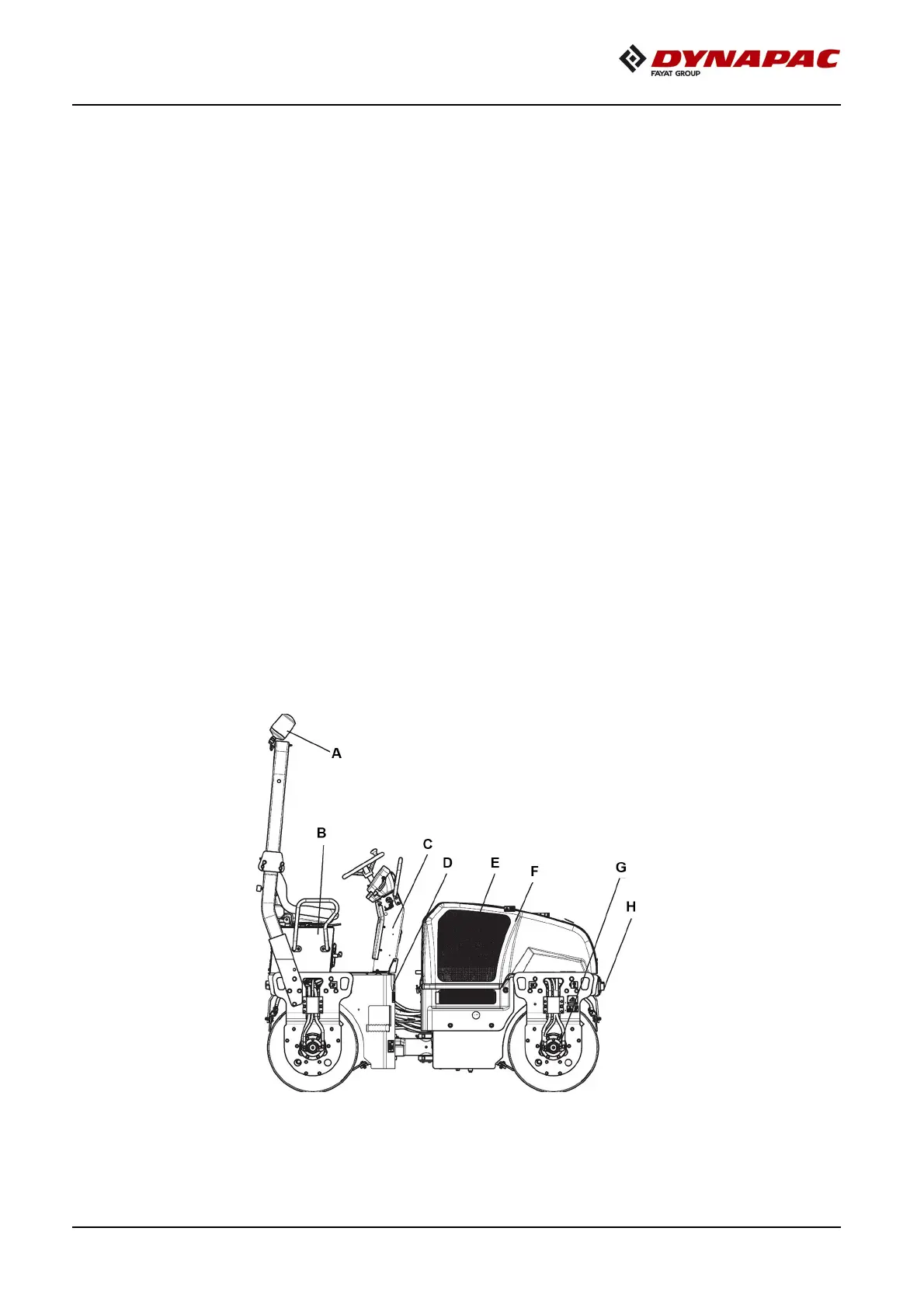

Figure 1-5: Major Components Right Side
A
Rotating Becon
E
Cooler
B Platform F Hood
C Steering console G Vibration Motor
D
Fuel tank
H
Lights
