Dynapac CC1250 User Manual

Introduction
6

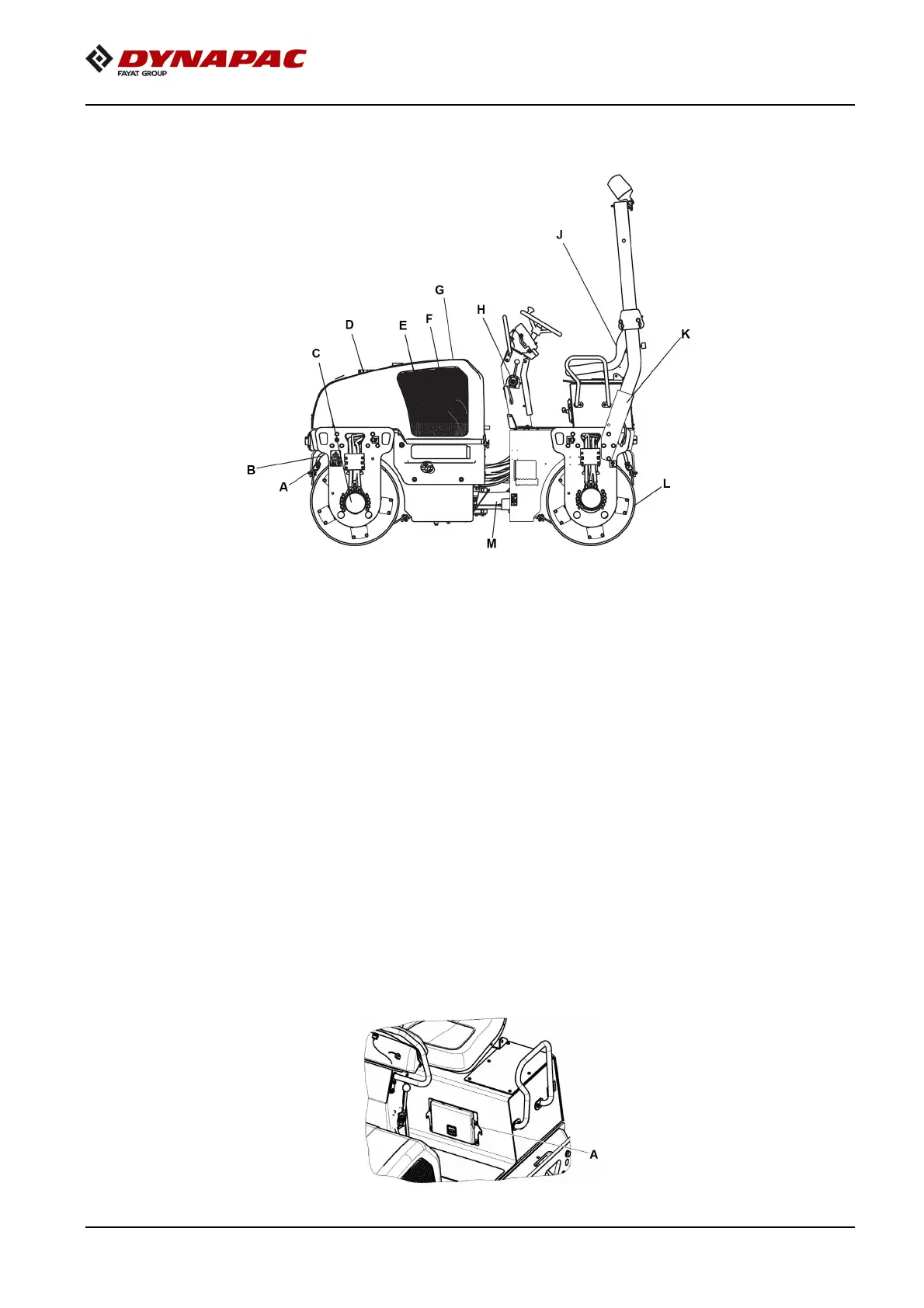

Figure 1-6: Major Components Left Side
A
B
C
Sprinkler system
Scrapper
Propulsion motor
G
H
J
Engine
Throttle lever
Seat
D Water tank K ROPS
E Air Cleaner L Drum
F
Propulsion Pump
M
Steering joint
Diesel Engine
The machine is equipped with a water-cooled, straight three cylinder, and four-stroke diesel engine.
Electrical System
The machine has electronic control unit (ECU), relays, fuse, and switches.
Figure 1-7: Electric System
A Main ECU

Dynapac CC1250 Specifications

General

Brand	Dynapac
Model	CC1250
Category	Construction Equipment
Language	English
