Dynapac CC1250 - Section 5: Operation Controls; Instruments and Controls

Section 5: Operation Controls
23
Operation Controls
5.1 Instruments and Controls
The instruments and controls section of this manual provides basic information about the operating
controls, instruments, and indicators located on the consoles and around the roller.
All the operation control from the operator console located in front of operator seat under steering
wheel. The slim profile and quick opening side panels provide easy access for maintenance and
service.

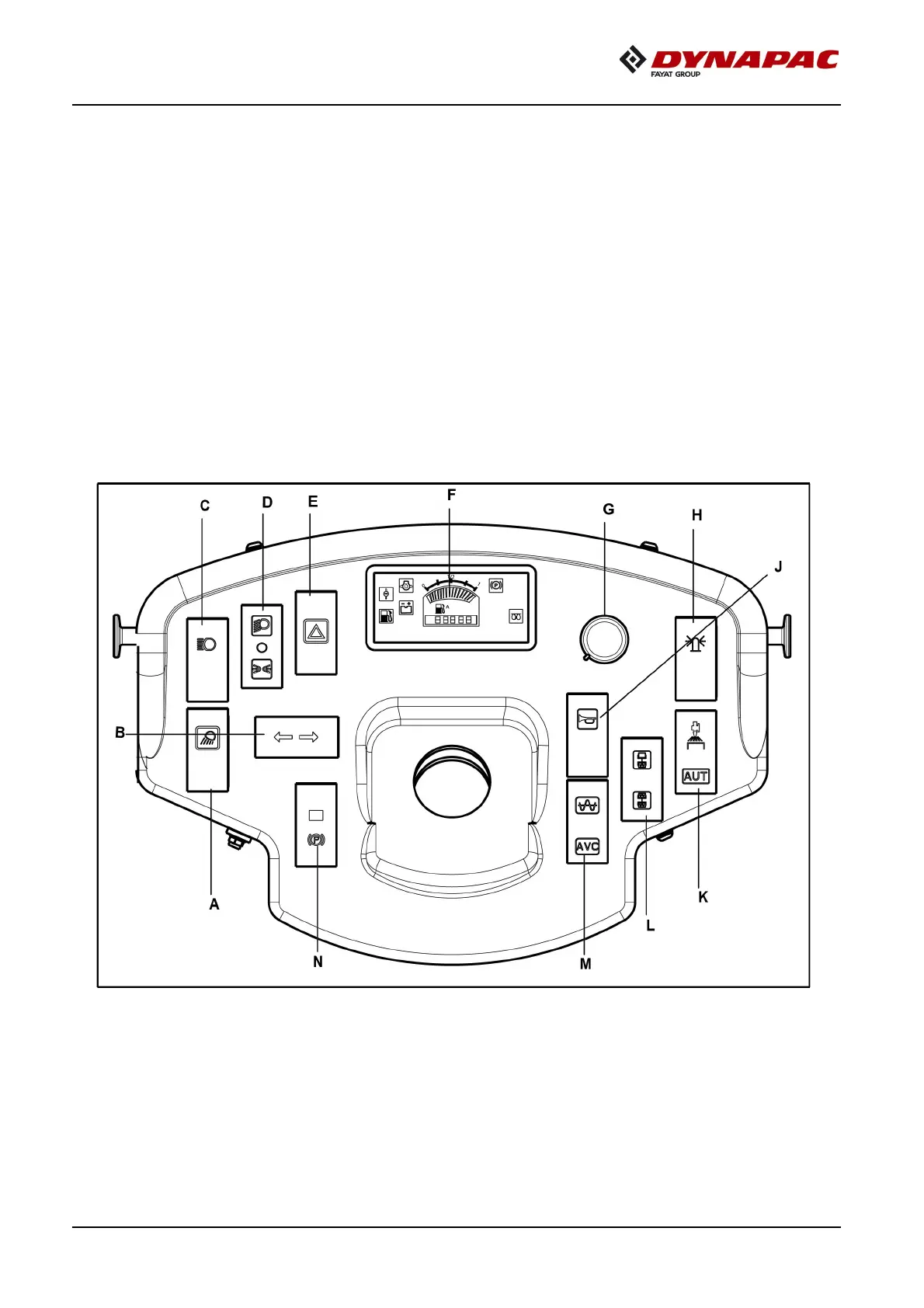

Figure 5-1: CC 1250 Console
A
Working light
H
Rotating beacon
B Direction indicators J Horn
C High beam K Manual/automatic sprinkler
D Driving lights L Vibration selector Front/rear drum
E Hazard warning lights M Vibration manual/automatic
F Control panel N Parking brake On/Off
G
Sprinkler timer
