The starter switch starts and stops the
engine.
There are three positions in the starter switch,
they are:
The throttle control regulates the speed of the
engine. In forward position, the engine idles and
in
the backward position, the engine runs with a full
•
OFF position: In this position all the electric
systems and the engine are switched off, and
the key can be removed.
•
ON position: In this position, Engine is on run
mode. Charging circuit and lamp circuit are
energized.
•
Start position: In this position, the engine
cranks. Make sure to allow the switch to on
position until the engine is started.

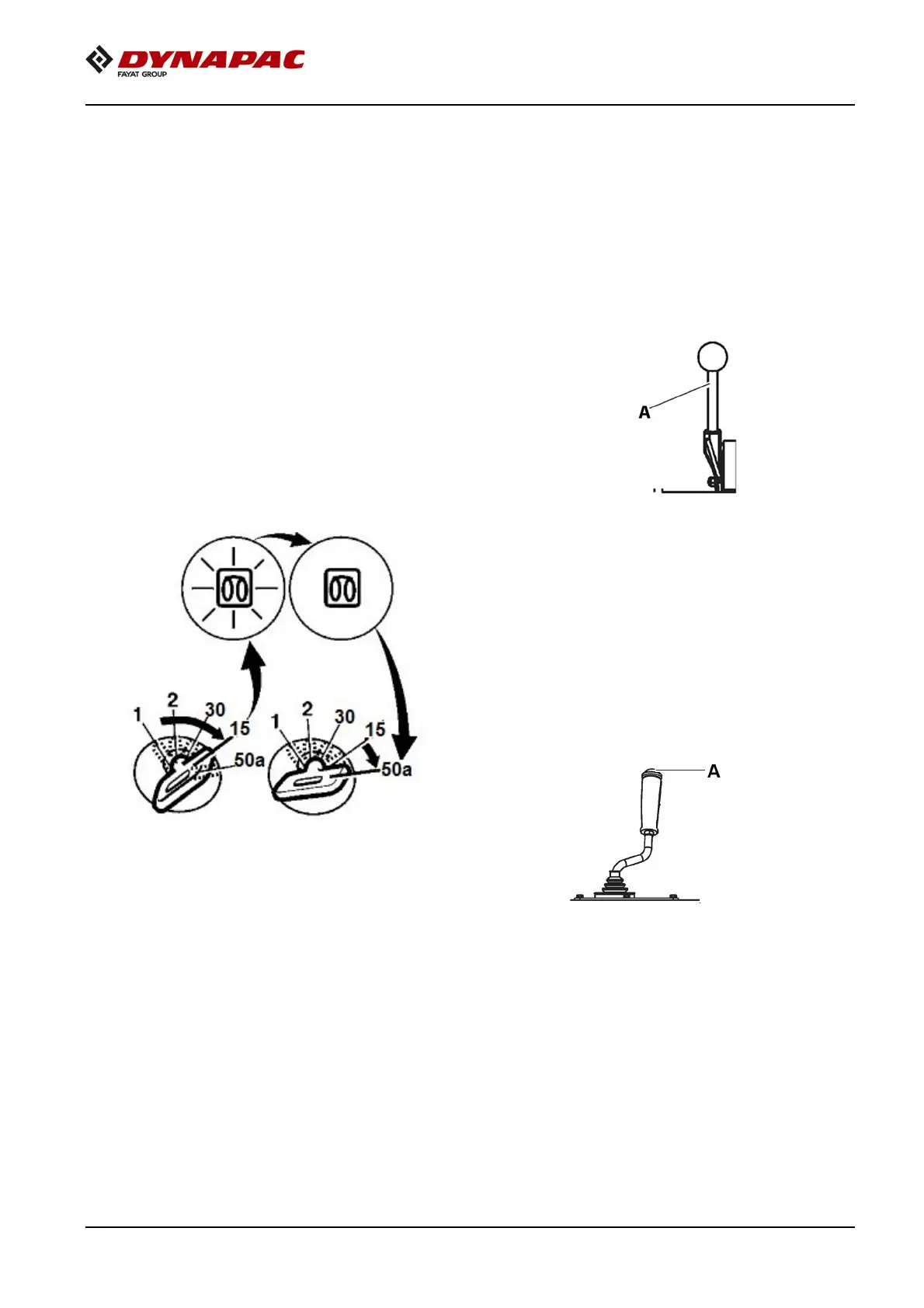

Figure 5-2:Starter Switch
speed.
Figure 5-3:Throttle Control
A Throttle lever
1
Off position 30 Start position to supply power
to the instruments and controls
2
On position 15 Hold position
50a Starter motor activation.
Vibration On/Off Switch
Vibration On/Off switch is a push button used for
vibration. Press and release to switch on the
vibration and press again to switch it off.
Figure 5-4: Vibration On/Off Switch
A Vibration On/Off Switch
